Horizontal Lathes

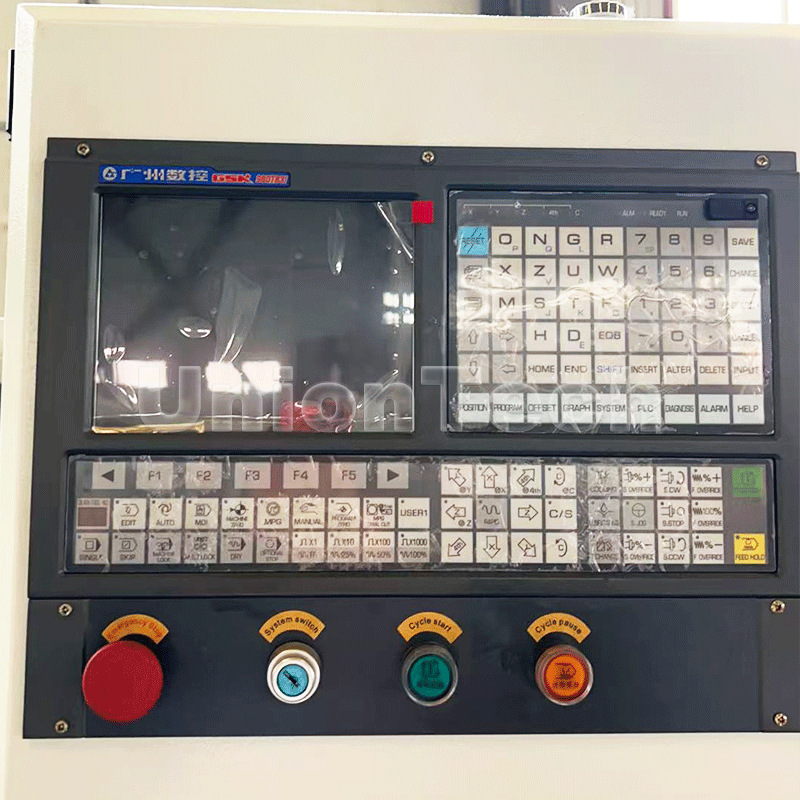

CK6140 with GSK controller
cnc Lathe For Metal Turning Center

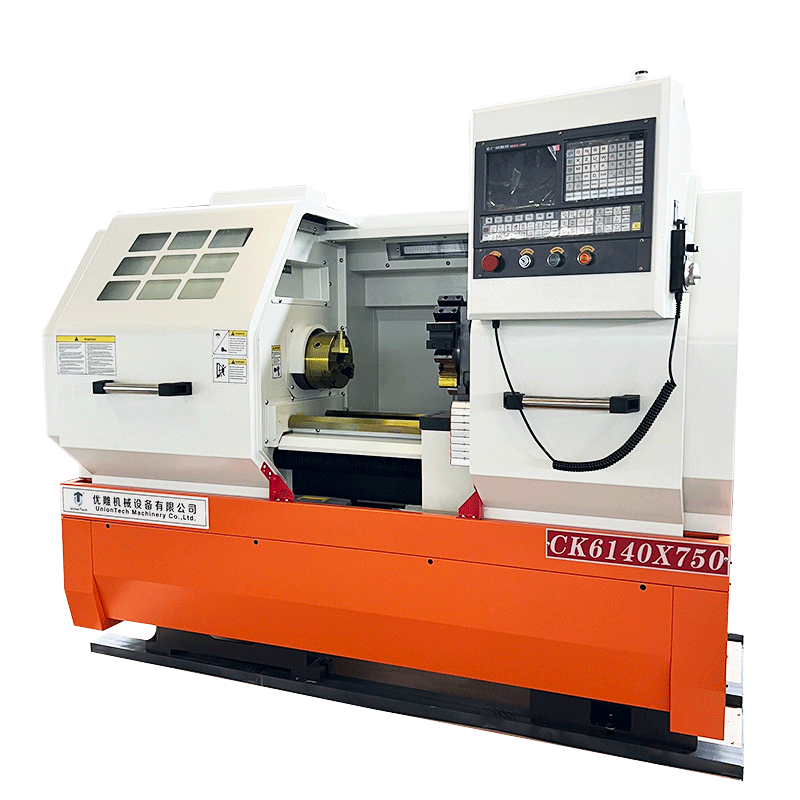

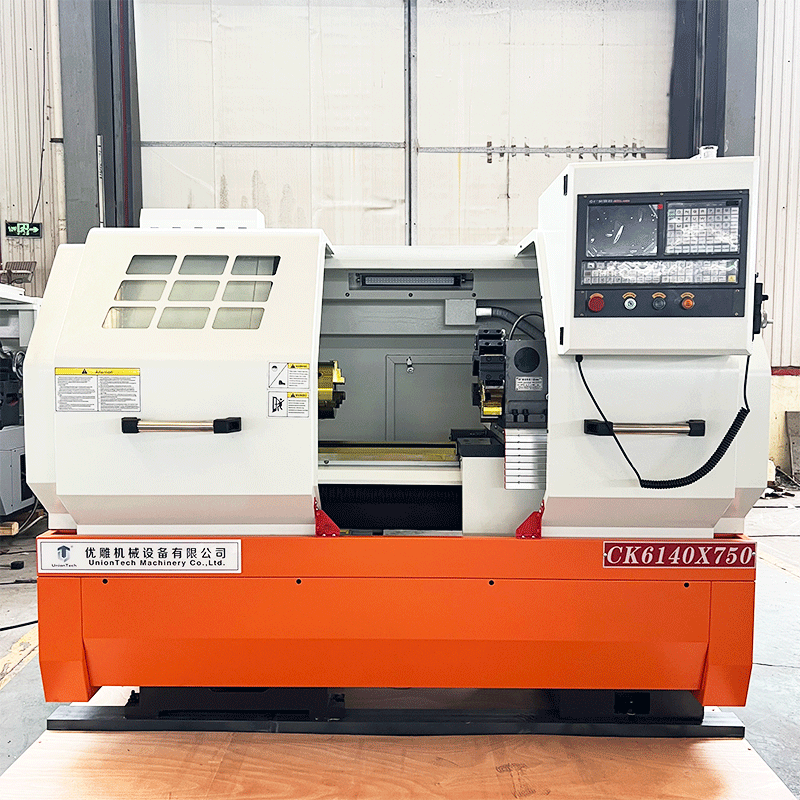

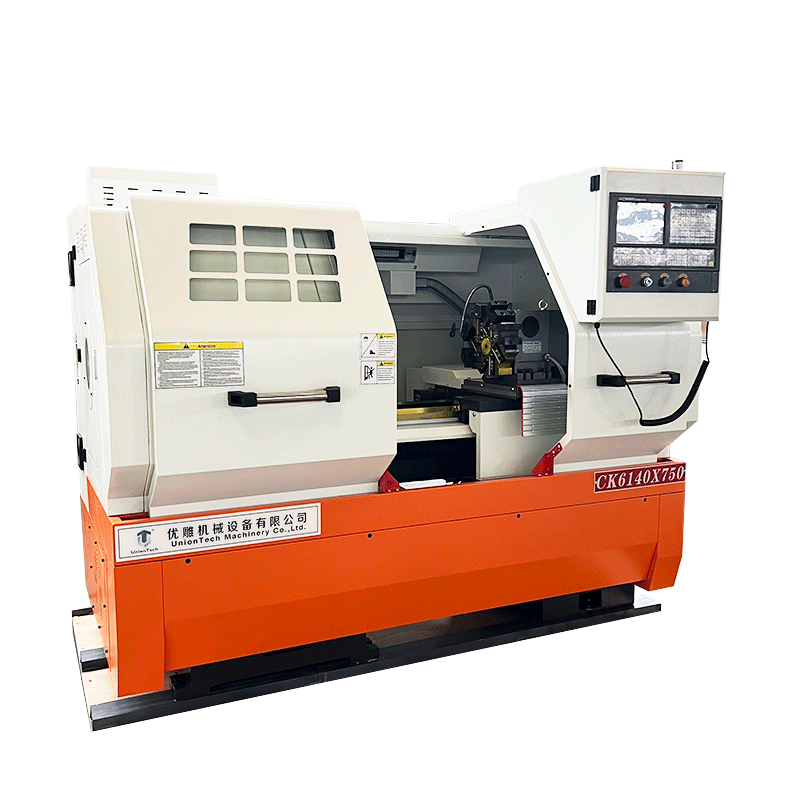

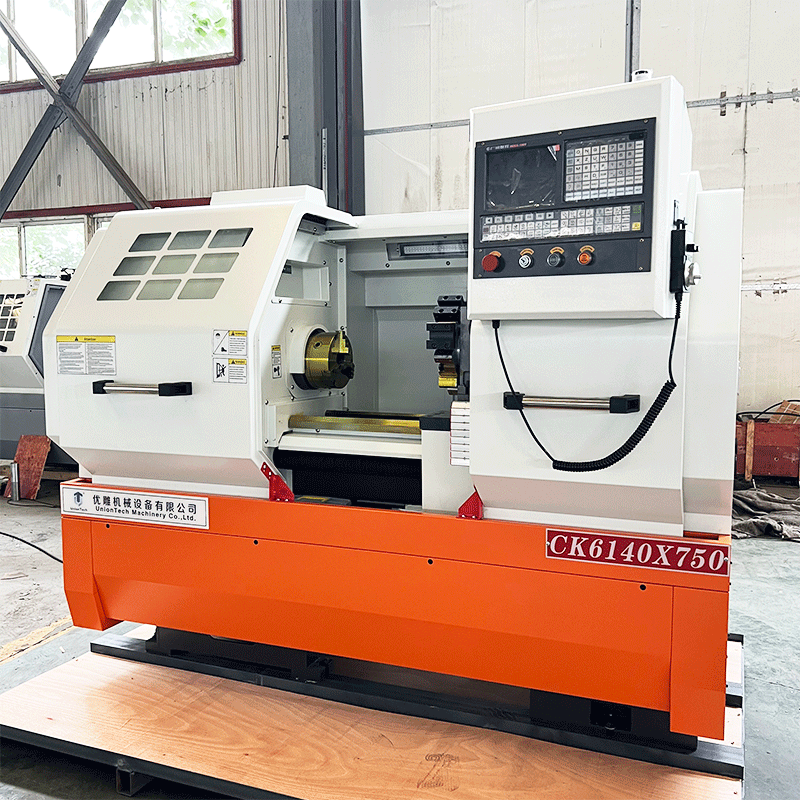

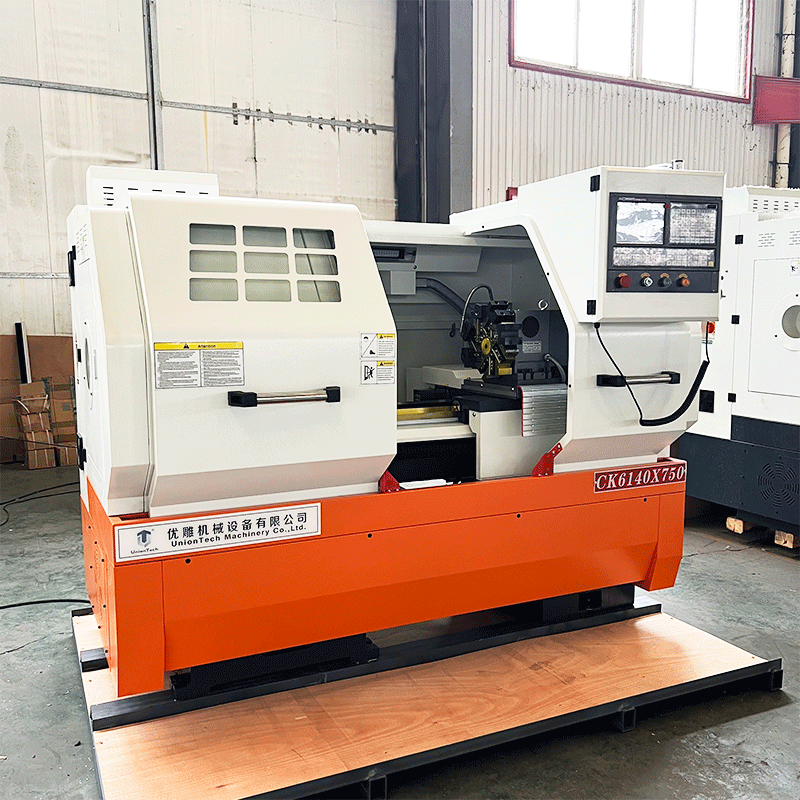

CK6140 x750 mini cnc lathe with GSK controller
3-jaw chuck

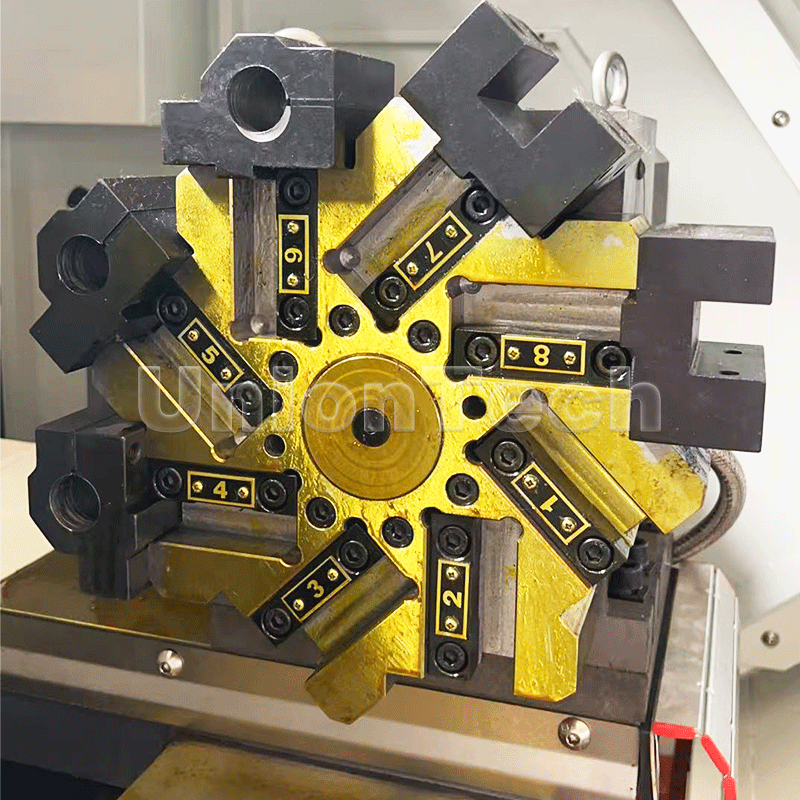

8-station turret
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.pngVideo

方格.pngParameter

SpecificationsCK6140 metal cnc lathe with GSK controller
Max. turning diameter on the bedφ400
The Max. turning diameter of the pullerφ200
Max. processing length750
Spindle end formA2-6
Spindle  through hole diameter52
Spindle hole front taperMT5
Spindle motor power5.5
Chuck size15
Ball screw specifications2006/4008
Fast moving speed (x/z)X:6 Z:8
Repeated positioning accuracy(X/Z)±0.005
Workpiece machining accuracyIT6-IT7
Workpiece surface roughnessRal.6
Tailstock sleeve diameter60
Tailstock sleeve stroke130
Tailstock sleeve taperMT8
Rail formSingle+Flat Rails
Diameter2500*1500*1650
Machine weight1800
