Horizontal Lathes

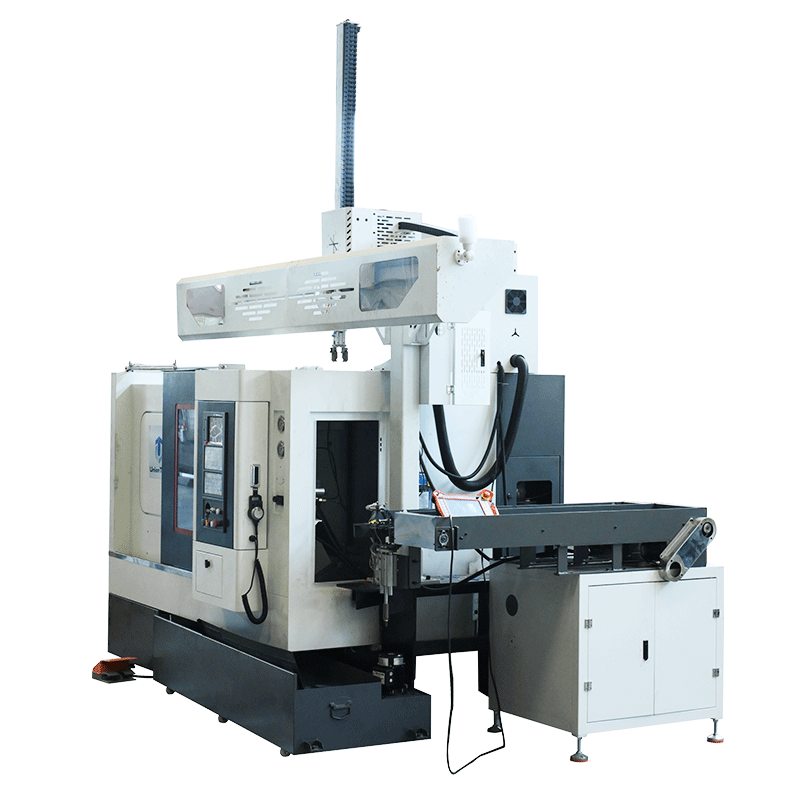

TCK56 with Loading and unloading device
GSK controller ( SYNTEC/SIEMENS/FANUC/MITSUBISHI as optional)
45° Slant CNC Lathe

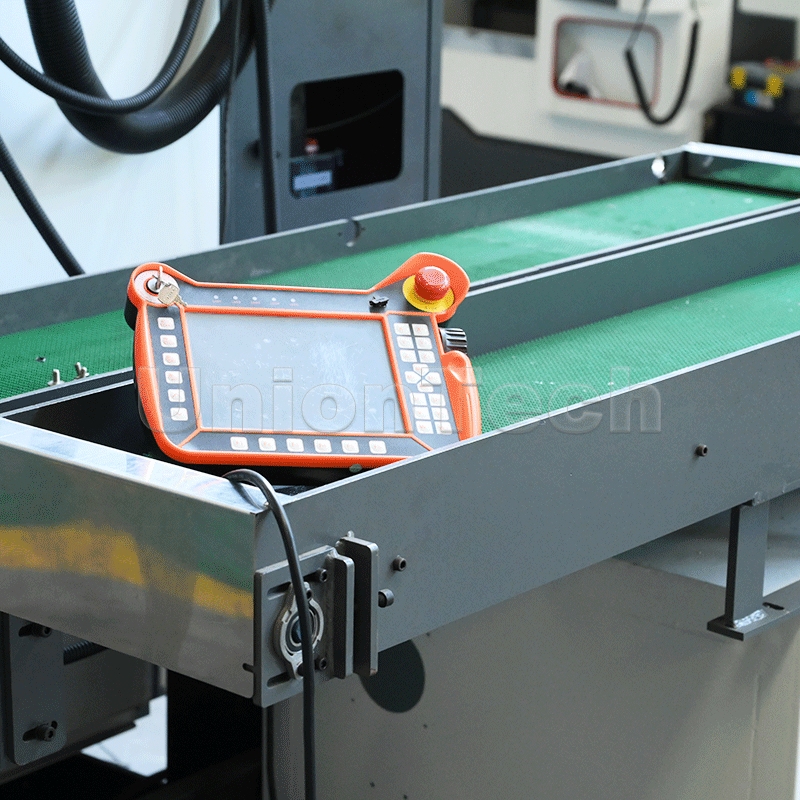

Loading and unloading device
Inquiry Now

方格.png Video

方格.pngParameter

SpecificationUnitTCK56A
Max.swing over bedmm560
Max.swing over cross slidemm350
Max.workpiece lengthmm500
Standard machining diametermm280
Max Machining diametermm350
The spindle nose(optional chuck)
A2-6
The spindle motor powerkw11
Max. spindle speedsrpm50~3500
Spindle speed step
Variable
Spindle boremmΦ65
Bar diametermmΦ50
The x axis limit strokemm200
The z axis limit strokemm560
X/Z axis rapid speedm/min30
X/z axis position accuracymmX:0.01 Z:0.01
X/z axis repeat position accuracymmX:0.004 Z:0.005
Tool turret (optional)
125-8Turret
Ball screw dia.and pitchmm25x25
Hydraulic quill taper
MT5
Hydraulic tailstock travelmm450
Machine dimensions(L*W*H)mm2790*1900*1850
N.W.kg4000
