· A Comprehensive Guide to CNC Machining Centers and How to Choose the Right One

Cnc mill machining centerare crucial in modern manufacturing, providing the capability to produce complex components with high precision. These centers are generally categorized into three main types: Vertical Machining Centers (VMC), Horizontal Machining Centers (HMC), and Gantry Machining Centers(GMC）. This article will define each type, explore their applications, showcase some machining samples, and offer guidance on choosing the right machining center for your needs.

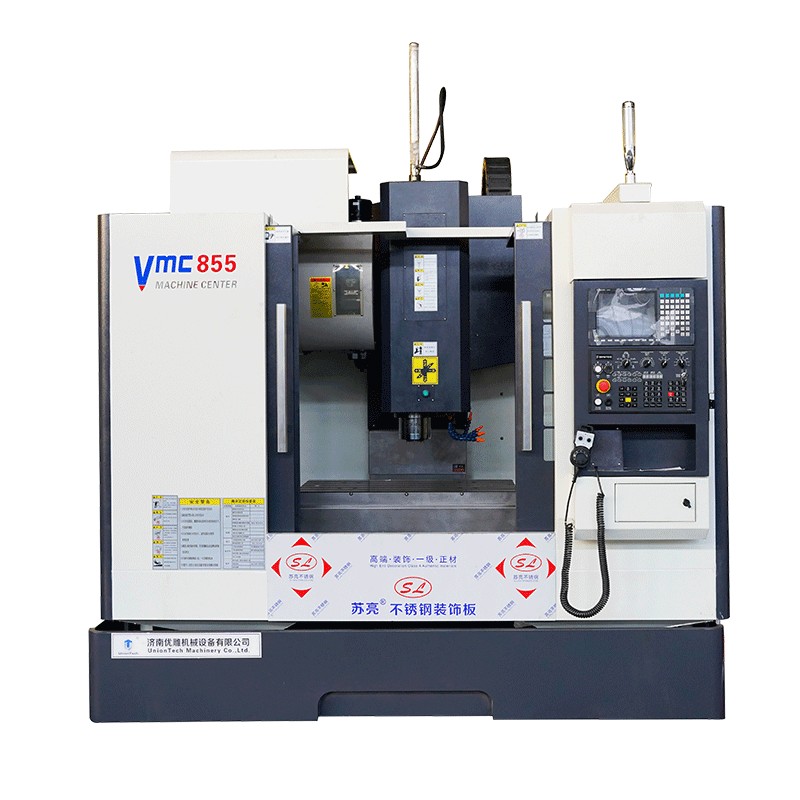

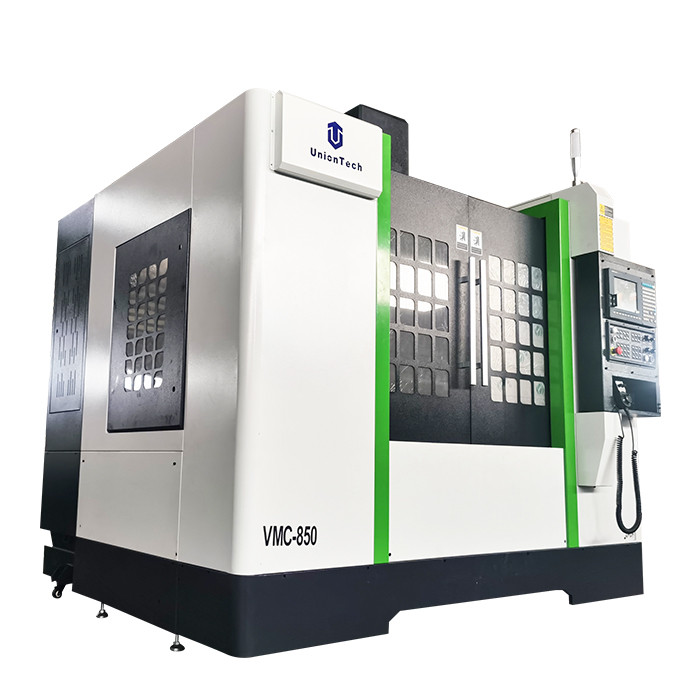

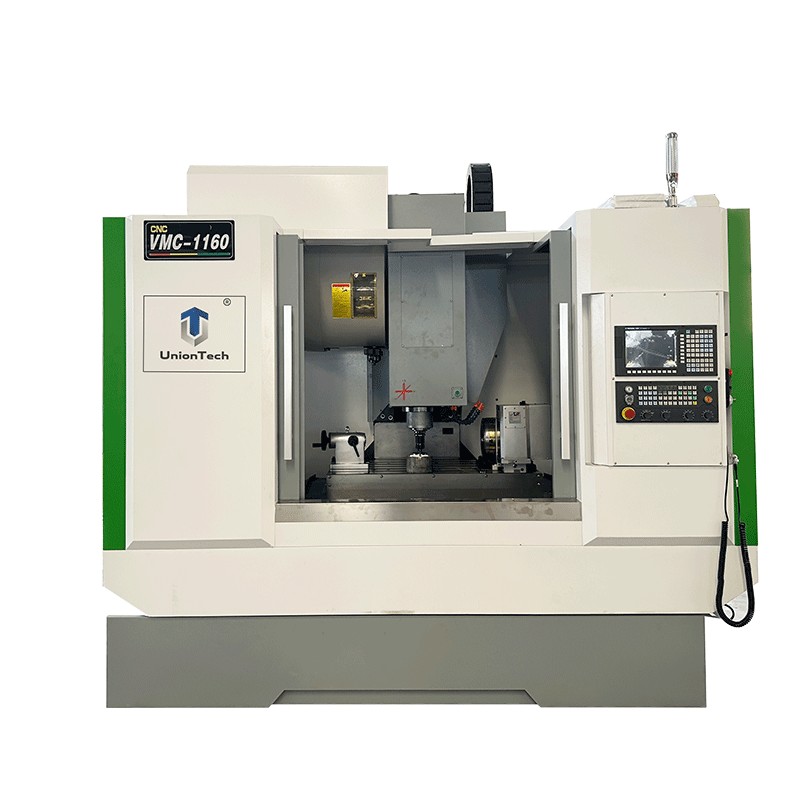

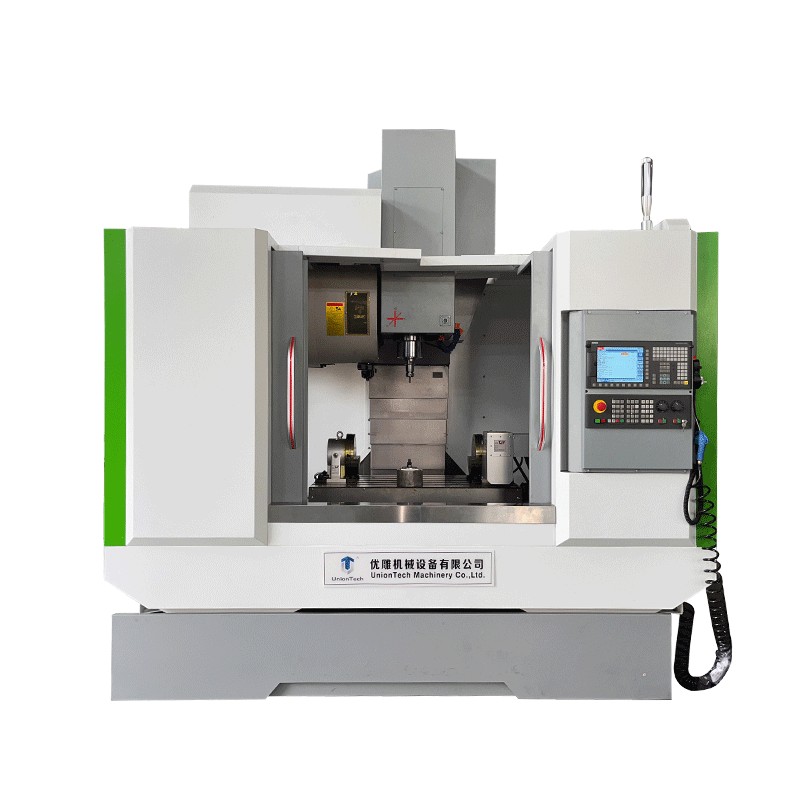

Vertical Machining Center (VMC)

Definition:

A Vertical Machining Center is a machine where the spindle is oriented vertically, perpendicular to the worktable. This setup is particularly suited for machining small to medium-sized parts. The vertical spindle makes it easier for operators to access and monitor the machining area, making VMCs popular in precision machining.

Applications

- Mold Making: Ideal for complex surface molds, such as injection molds and die-casting molds.

- Automotive Parts: Used for machining engine components, transmission housings, etc.

- Aerospace: Suitable for manufacturing precision aerospace components like turbine blades.

Machining Samples

VMCs are often used to produce intricate parts, such as precision molds, mechanical components, and aerospace parts with complex surfaces.

Images and Videos

Images typically show the compact design of VMCs with their vertical spindles, while videos demonstrate their high-precision machining capabilities and ease of tool change during operation.

Horizontal Machining Center (HMC)

Definition

A Horizontal Machining Center features a spindle parallel to the worktable, making it ideal for machining large or long parts. The horizontal configuration allows for easier chip evacuation, making HMCs suitable for heavy-duty machining.

Applications

- Large Part Machining: Suitable for parts like automotive chassis, shafts, and large gearboxes.

- Mass Production: Ideal for multi-face machining, reducing the need for multiple setups and increasing efficiency.

- Energy Equipment: Used in manufacturing parts for wind turbines, oil and gas equipment, etc.

Machining Samples

HMCs excel in producing large, complex parts, such as heavy equipment shafts, automotive chassis components, and large gearboxes.

Images and Videos

Images show the horizontal spindle layout, while videos highlight the efficiency of HMCs in machining large parts and their advantages in complex multi-face operations.

Gantry Machining Center

Definition

A Gantry Machining Center is a machine with a fixed bed and a movable gantry, designed for machining very large parts. The gantry structure allows the workpiece to remain stationary while the cutting tool can move in multiple directions.

Applications

- Aerospace: Used for machining large structural components like aircraft wings.

- Shipbuilding: Ideal for manufacturing large ship components and welded structures.

- Heavy Machinery: Used for machining large bases for presses and industrial machinery.

Machining Samples

Gantry Machining Centers are used for very large, high-precision components such as aircraft wings, large ship parts, and heavy machinery bases.

Images and Videos

Images typically show the large gantry structure, while videos demonstrate the precision machining of very large parts, particularly in aerospace and heavy machinery applications.

Similarities and Differences Among the Three Types

Similarities

- High Precision: All three types offer high-precision machining capabilities, suitable for producing complex parts.

- High Automation: Each supports automatic tool changes and CNC operations, enabling continuous machining.

- Versatility: They can all perform milling, drilling, tapping, and other machining processes.

Differences

- Structure: VMCs have vertical spindles, HMCs have horizontal spindles, and Gantry Machining Centers feature a movable gantry structure.

- Application Range: VMCs are best for small to medium parts, HMCs for large parts requiring multi-face machining, and Gantry Machining Centers for extremely large parts.

- Cost: Gantry Machining Centers are typically the most expensive, followed by HMCs, with VMCs being the most cost-effective option.

How to Choose the Right Machining Center

1. Part Size: If you're machining small parts, a VMC is usually sufficient. For large parts or those needing multi-face machining, an HMC is more appropriate. For extremely large parts or complex machining paths, a Gantry Machining Center is ideal.

2. Production Efficiency: For high-volume production and multi-face machining, an HMC is more efficient. Gantry Machining Centers are best for high-efficiency machining of very large parts.

3. Budget: Your budget will also play a role in your decision. VMCs are the most cost-effective, suitable for small to medium-sized enterprises with limited budgets. Gantry Machining Centers are ideal for companies with larger budgets needing to machine large parts.

Conclusion

Each type of machining center—VMC, HMC, and Gantry—has its unique strengths and applications. Depending on the size and complexity of the parts you need to machine, the desired production efficiency, and your budget, you can choose the most suitable machining center for your needs. No matter which machine you select, all can significantly enhance production efficiency and machining precision in modern manufacturing.

If you need specific images, videos, or machining sample displays, please let me know, and I can provide the relevant resources.
