Differences Between Hydraulic Chuck and Ordinary Chuck in Metal Lathes

In metal lathes, chucks are essential components used for clamping workpieces. Based on their working principles and operation methods, chucks can be categorized into ordinary chucks and hydraulic chucks. Their primary differences are as follows:

1. Operation Method

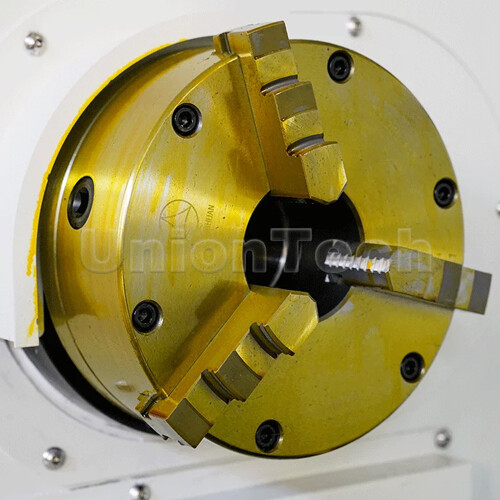

• Ordinary Chuck: Requires manual adjustment of the clamping force. The operator adjusts the position and clamping force of the jaws by rotating a handle or using a wrench.

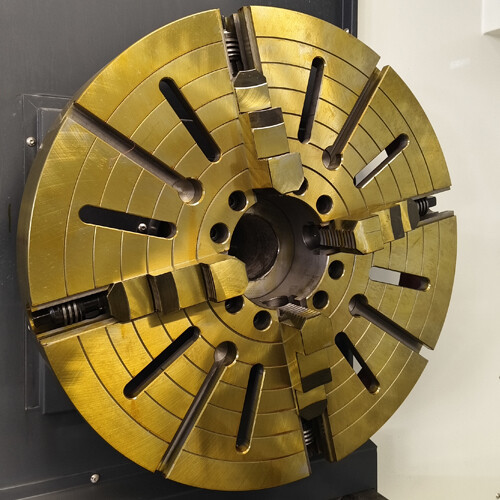

• Hydraulic Chuck: Controlled by a hydraulic system that uses a hydraulic pump to generate pressure, automatically adjusting the jaws' position and clamping force.

2. Clamping Force and Uniformity

• Ordinary Chuck: The clamping force is applied manually, which makes it difficult to ensure uniform and stable force every time. This may lead to loose or deformed workpieces.
• Hydraulic Chuck: Provides greater, more stable, and uniformly distributed clamping force through a hydraulic system, avoiding workpiece misalignment or loosening.

3. Operational Efficiency

• Ordinary Chuck: Manual adjustment takes more time, making it suitable for small-batch or single-piece production.
• Hydraulic Chuck: Offers rapid clamping and release, significantly reducing setup time, ideal for mass production and automated machining.

4. Machining Accuracy

• Ordinary Chuck: The stability of the clamping force may vary, which could cause vibrations or shifts during high-speed machining, affecting machining accuracy.
• Hydraulic Chuck: Delivers constant and uniform clamping force, minimizing errors and ensuring quality in high-speed or precision machining.

5. Workpiece Adaptability

• Ordinary Chuck: Suitable for smaller, lighter, or regularly shaped workpieces.

• Hydraulic Chuck: Ideal for large, heavy, or complex-shaped workpieces, especially in scenarios requiring high clamping force and stability.




•

When Should Hydraulic Chucks Be Used?

Hydraulic chucks are typically used in the following scenarios:

1. Mass Production
   With high automation and fast clamping, hydraulic chucks are well-suited for high-speed, mass-production environments.

2. High-Precision Machining
   Hydraulic chucks provide stable clamping force, reducing vibrations and errors, making them ideal for tasks requiring strict dimensional tolerances.

3. High-Speed Cutting
   Hydraulic chucks ensure secure clamping of workpieces, making them suitable for high-speed cutting processes and preventing workpiece loosening or shifting due to insufficient clamping force.

4. Machining Large or Heavy Workpieces
   Hydraulic chucks deliver much higher clamping force compared to ordinary chucks, making them suitable for securely clamping large or heavy workpieces, preventing slippage or falling caused by weight or cutting forces.

5. Automated Production Lines
   Hydraulic chucks can be integrated with automated or semi-automated production lines, allowing automatic clamping and release of workpieces, reducing manual intervention, and improving production efficiency.

Our metal lathes can be customized, and you can choose hydraulic chuck or ordinary chuck according to your needs.
