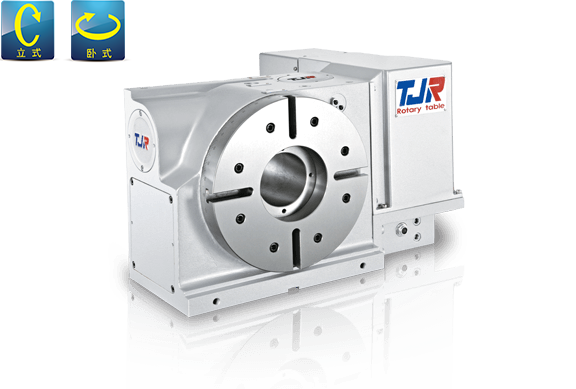

CNC Rotary Table for 4 Axis
Whether your machining center has the preparation or hardware ready, UnionTech CNC 4 axis rotary tables with all needed accessories and servo kits can increase your productivity by adding a single-axis machining.

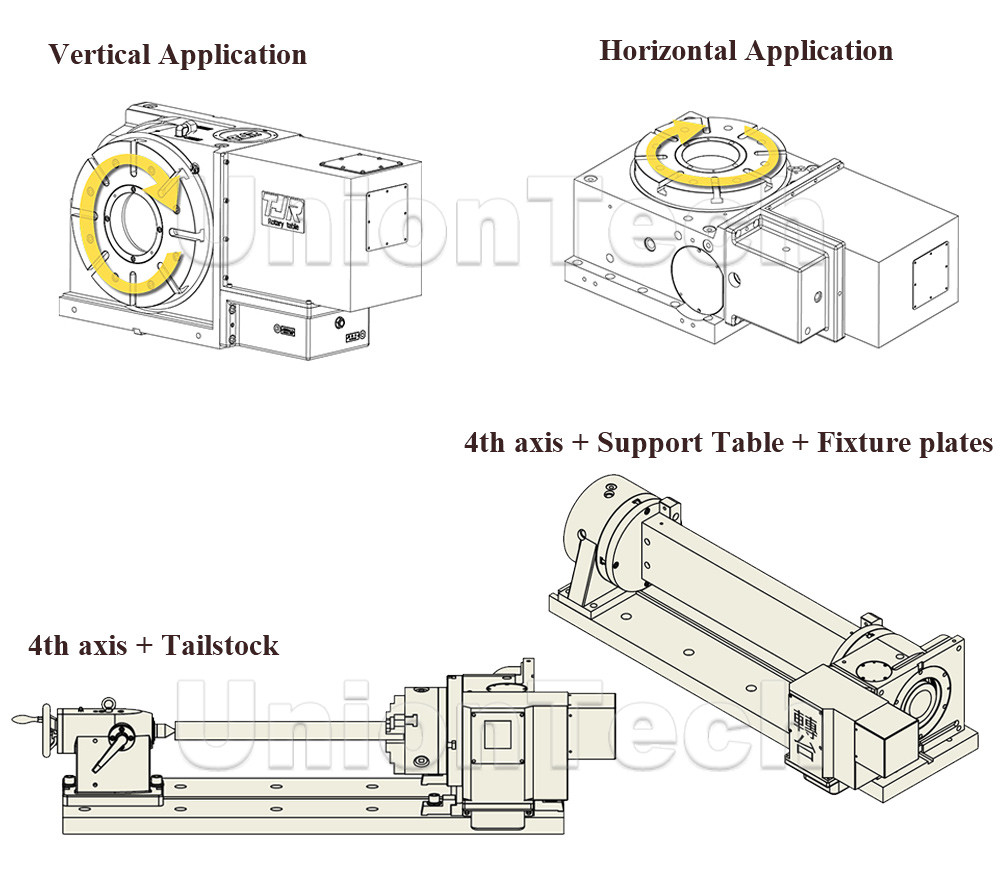

![lv-tjr.jpg lv-tjr.jpg](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_894,h_786,limit_0)
We provide diverse transmission mechanisms such as 1. Driven by Worm & Worm Gear, 2. Driven by Roller Gear Cam, 3. Driven by Direct Drive Motor to meet various needs. If you are looking for the 4 axis rotary tables cooperation partner, please feel free to check out 4 axis rotary table here and get in touch with us.
Item | Unit |
---|
Table Diameter | mm |
Diameter of Table Central Hole | mm |
Inner Diameter of Mandrel Sleeve | mm |
Diameter of Center Through Hole | mm |
Center Height (Vertical) | mm |
Table Height (Horizontal) | mm |
Table T-slot Width | mm |
Guide Block Width | mm |
Min. Increment | deg. |
Indexing Precision | sec. |
Repeatability | sec. |
Clamping System (Pneumatic / Hydraulic) | kg/cm2 |
Clamping Torque | kg-m |
Servo Motor Model | FANUC | Taper shaft with key |
MITSUBISHI | Taper shaft with key |
Speed Reduction Ratio | - |
Max. Rotation Rate of Table (Calculate with FANUC αMotor) | r.p.m |
Allowable Inertia Load Capacity (Horizontal) | kg∙cm∙sec2 |
Allowable Workpiece Load (dynamic) | Vertical![20231226161040315.png 20231226161040315.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_50,h_38,limit_0) | kg |
with Tailstock | kg |
Horizontal![20231226161040813.png 20231226161040813.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_50,h_38,limit_0) | kg |
Allowable Load (with clamping) | F![20231226161040537.png 20231226161040537.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_40,h_30,limit_0) | kgf |
FxL![20231226161040493.png 20231226161040493.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_50,h_38,limit_0) | kgf.m |
FxL![20231226161040890.png 20231226161040890.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_50,h_38,limit_0) | kgf.m |
Strength of Roller Gear Cam![20231226161040161.png 20231226161040161.png](https://usimg.bjyyb.net/grey.png?x-oss-process=image/resize,m_fixed,w_50,h_38,limit_0) | Kg.m |
Net Weight | kg |
RC-170R | RC-210R | RC-255R(N) |
---|
Ø170 | Ø210 | Ø255 |
Ø67 | Ø67 | Ø110 |
Ø40H7 | Ø40H7 | Ø80H7 |
Ø 40 | Ø 40 | Ø 80 Big Bore |
135 | 160 | 160 |
152 | 152 | 200 |
12H7 | 12H7 | 12H7 |
18h7 | 18h7 | 18h7 |
0.001 | 0.001 | 0.001 |
30 | 30 | 20 |
8 | 8 | 6 |
Pneumatic 6 | Pneumatic 6/Hydraulic 35 | Hydraulic 35 |
31 | 31 (Pne.) / 50(Hyd.) | 70 |
αiF8 / ßiS8 | αiF8 / ßiS8 | αiF8 / ßiS12 (Taper) |
HG/HF-54 / 104 | HG/HF-54 / 104 | HG/HF-154 |
1:36 | 1:36 | 1:60 |
83.3 | 83.3 | 50 |
5.4 |
8.3 |
20.3 |
75 | 75 | 100 |
150
|
150 |
250 |
150 |
150 |
250 |
1450 | 1450 | 2000 |
110 | 110 | 150 |
31 | 31 (Pne.) / 50(Hyd.) | 70 |
14 | 14 | 35 |
44 | 52 | 110 |
