VMC

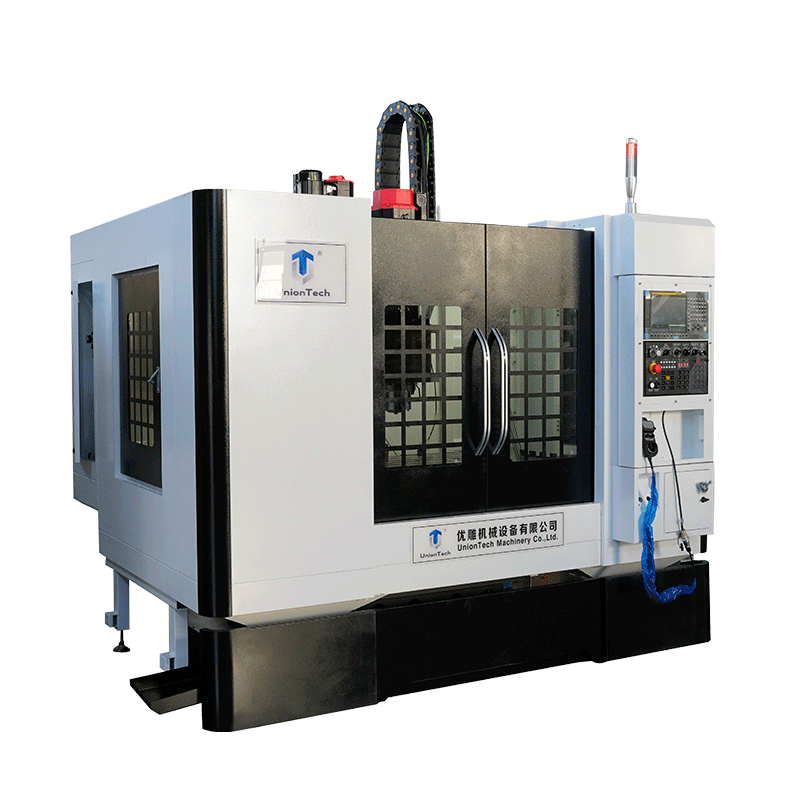

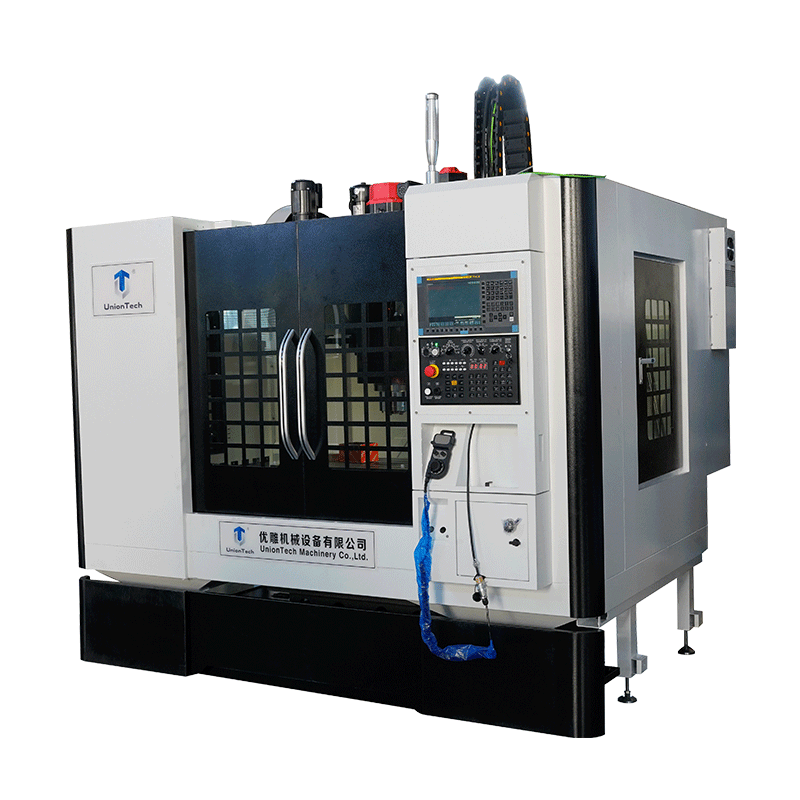

VMC 850

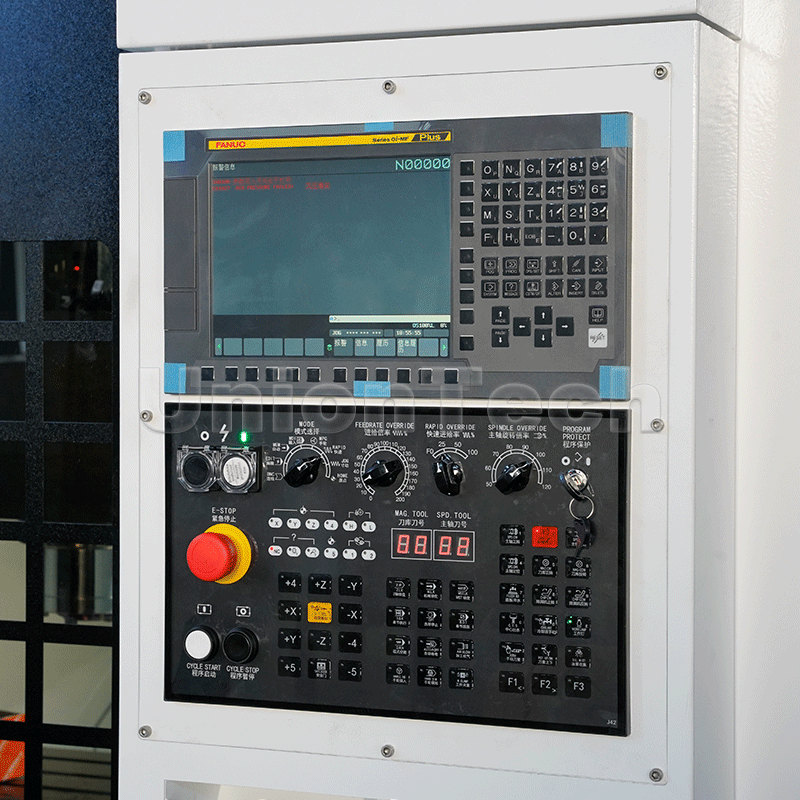

FANUC controller ( SYNTEC/SIEMENS/GSK as optional)
1000*500mm working area
8000rpm/min
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.pngVideo

方格.pngParameter

ModelVMC850 (SYNTEC controller)VMC 1050(GSK25i system)
X /Y/Z axis travel800/500/500mm1050/500/500mm
Spindle nose to table surface120-620mm120-620mm
X/Y/Z axis AC servo motortorque N.m 15/15/22torque N.m 15/15/22
Spindle center to column surface550mm550mm
Table size1000×550mm1000×550mm
Max.loading600kg600kg
T-slot5×18×90mm5×18×90mm
X/Y/Z axis rapid feed24/24/20m/min20/20/18m/min
Cutting feed1-10m/min1-10m/min
Main shaft connectionBeltBelt
Spindle taperBT40-140BT40-150

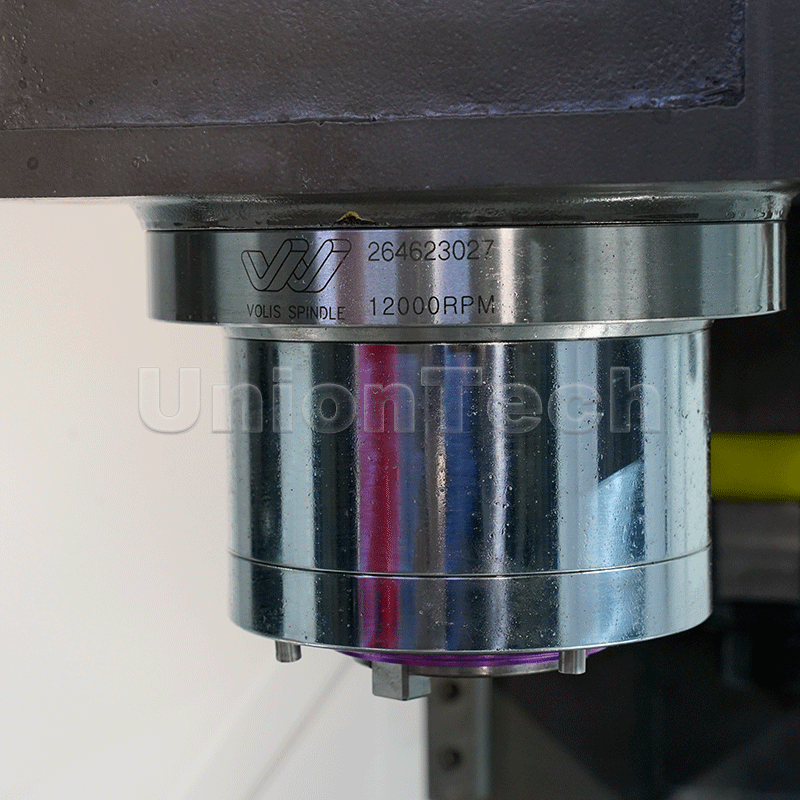

Range of spindle speed8000rpm8000rpm
Spindle motor7.5kW7.5kW
ATC capacity24qty24qty
Max.tool diameterΦ80/Φ150mmΦ80/Φ150mm
Max.tool weight8kg8kg
Position accuracy(Standard)±0.008/300mm±0.008/300mm
Repeat positioning accuracy(standard)±0.005mm±0.005mm
Dimensions2750×2300×2300mm2800×2360×2450mm
Weight5200kg5600kg
