VMC

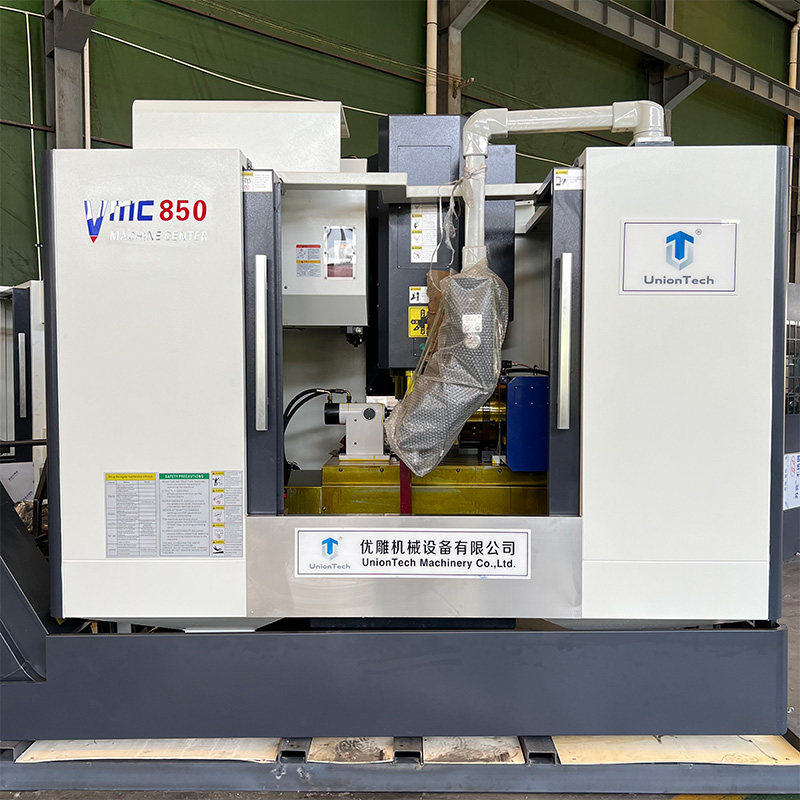

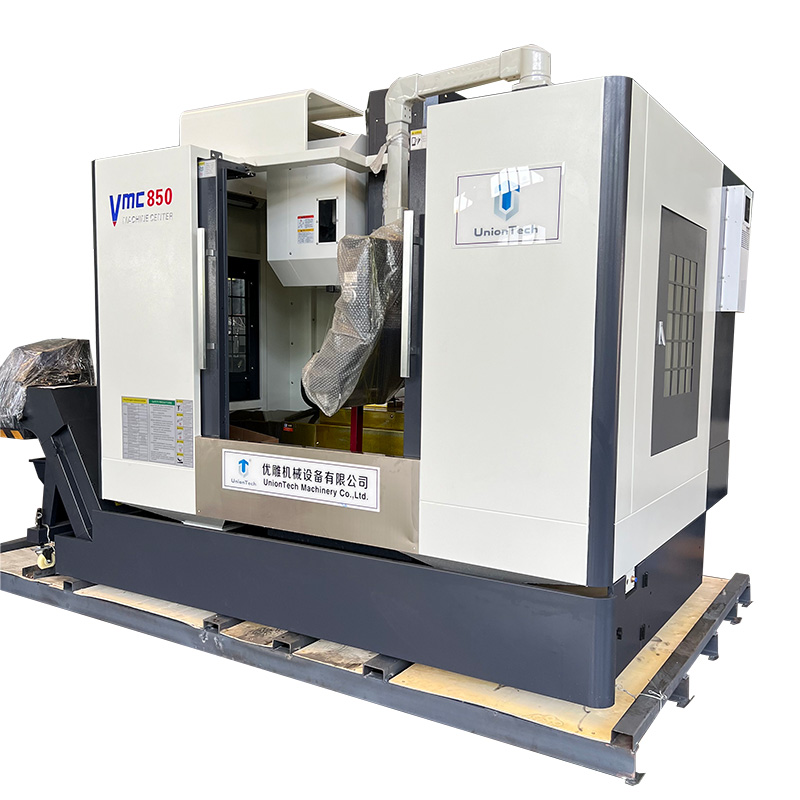

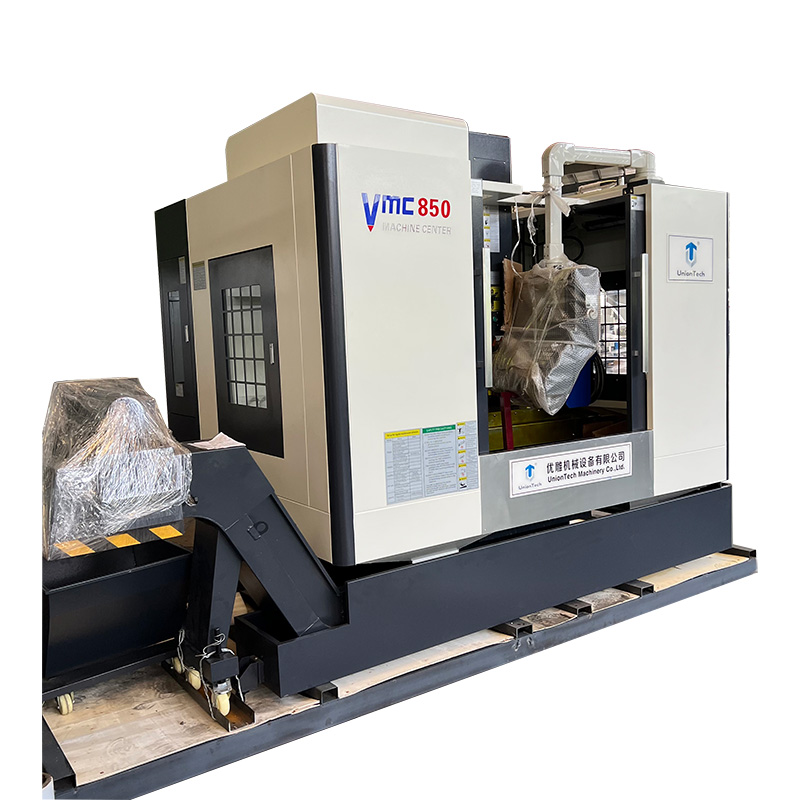

VMC 850

KND controller ( SIEMENS/SYNTEC/FANUC/MITSUBISHI/GSK as optional)
4 axis rotary device
15kw Mechanical spindle
3-jaw chuck

Inquiry Now

Video

Parameter

Model	VMC850 (SYNTEC controller)	VMC 1050(GSK25i system)
X /Y/Z axis travel	800/500/500mm	1050/500/500mm
Spindle nose to table surface	120-620mm	120-620mm
X/Y/Z axis AC servo motor	torque N.m 15/15/22	torque N.m 15/15/22
Spindle center to column surface	550mm	550mm
Table size	1000×550mm	1000×550mm
Max.loading	600kg	600kg
T-slot	5×18×90mm	5×18×90mm
X/Y/Z axis rapid feed	24/24/20m/min	20/20/18m/min
Cutting feed	1-10m/min	1-10m/min
Main shaft connection	Belt	Belt
Spindle taper	BT40-140	BT40-150
Range of spindle speed	8000rpm	8000rpm
Spindle motor	7.5kW	7.5kW
ATC capacity	24qty	24qty
Max.tool diameter	Φ80/Φ150mm	Φ80/Φ150mm
Max.tool weight	8kg	8kg
Position accuracy(Standard)	±0.008/300mm	±0.008/300mm
Repeat positioning accuracy(standard)	±0.005mm	±0.005mm
Dimensions	2750×2300×2300mm	2800×2360×2450mm
Weight	5200kg	5600kg
