Vertiacal Turning Lathes

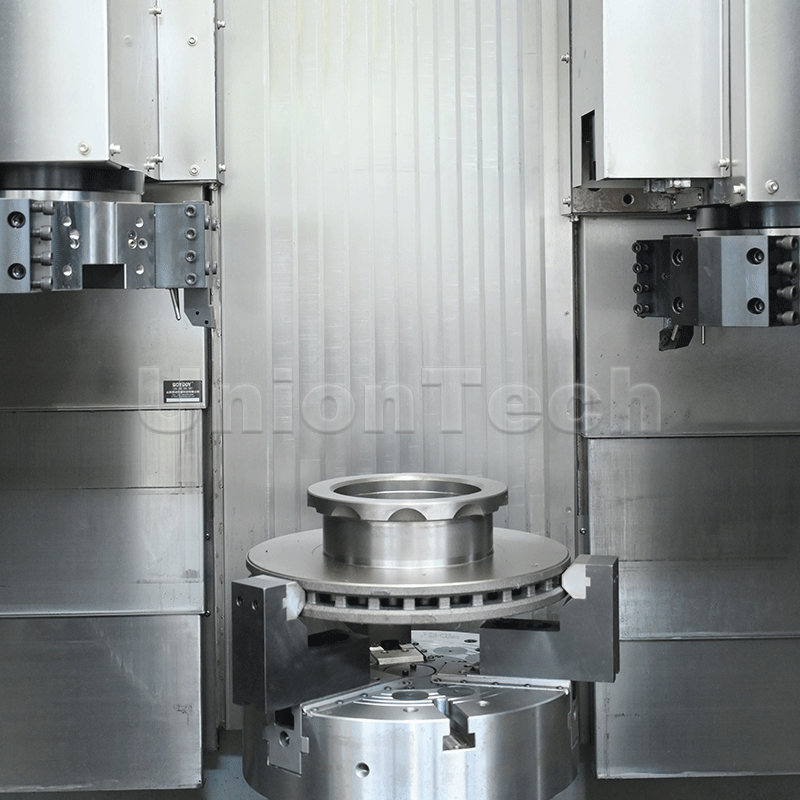

KD500 Vertical lathe

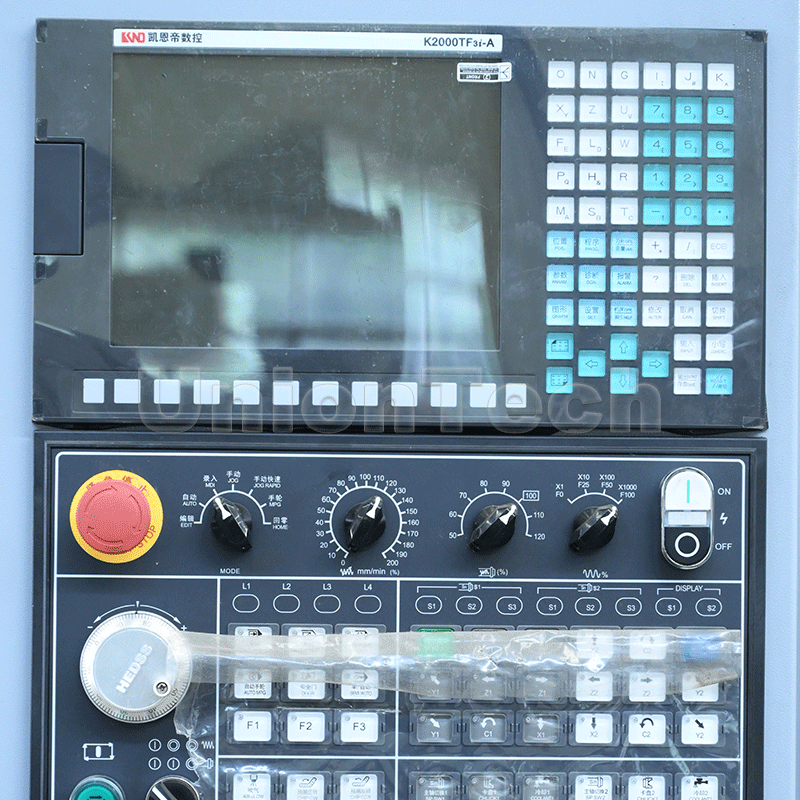

KND controller
WhatsApp/Wechat:+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video

·The vertical guideway of the machine adopts the cross slide structure, and the column, base and slide are made of gray cast iron. Column and slide guideway are high-frequency quenching, guideway moving surface paste plastic treatment to ensure the stability of long-term use of machine tools and accuracy retention. The machine tool is fully closed protection, beautiful and generous appearance.

·The spindle drive of the machine tool adopts servo motor and imported spindle bearing, low speed and high torque, which is suitable for strong cutting; it is suitable for semi-finish machining and finish machining of parts.

·The X/Y axis feeding is controlled by servo motor, and the Z axis adopts balanced weight, reliable structure and low failure rate.

·The X/Y axis of the machine tool adopts precision roller screws and is equipped with imported special bearings for the screws to meet the requirements of high-precision and high-rigidity cutting.




SpecificationsUnitVTC50VTC80
Max. turning diametermm500800
Max. swing diametermm630
Chuck sizemm400400/500/630
Spindle speedrpm50-2000100-1000
Tool post cross travel (X)mm400550
Tool post vertical travel (Z)mm600800
X/Z-axis feed speedmm/min0.1-10000.1-1000
X/Z-axis rapid feed speedm/min12月16日12月16日
Tool post type-H8H8
Tool section sizemm32x3232*32
X/Z-axis positioning accuracymm0.0060.004
X/Z-axis repositioning accuracymm0.0080.008
Main motor powerkw18.5/2222
X-axis feed motor powerkw22.4/15
Z-axis feed motor powerkw32.8/18
X/Z-axis feed motor torqueNM1010
Machine weightkg50007200
