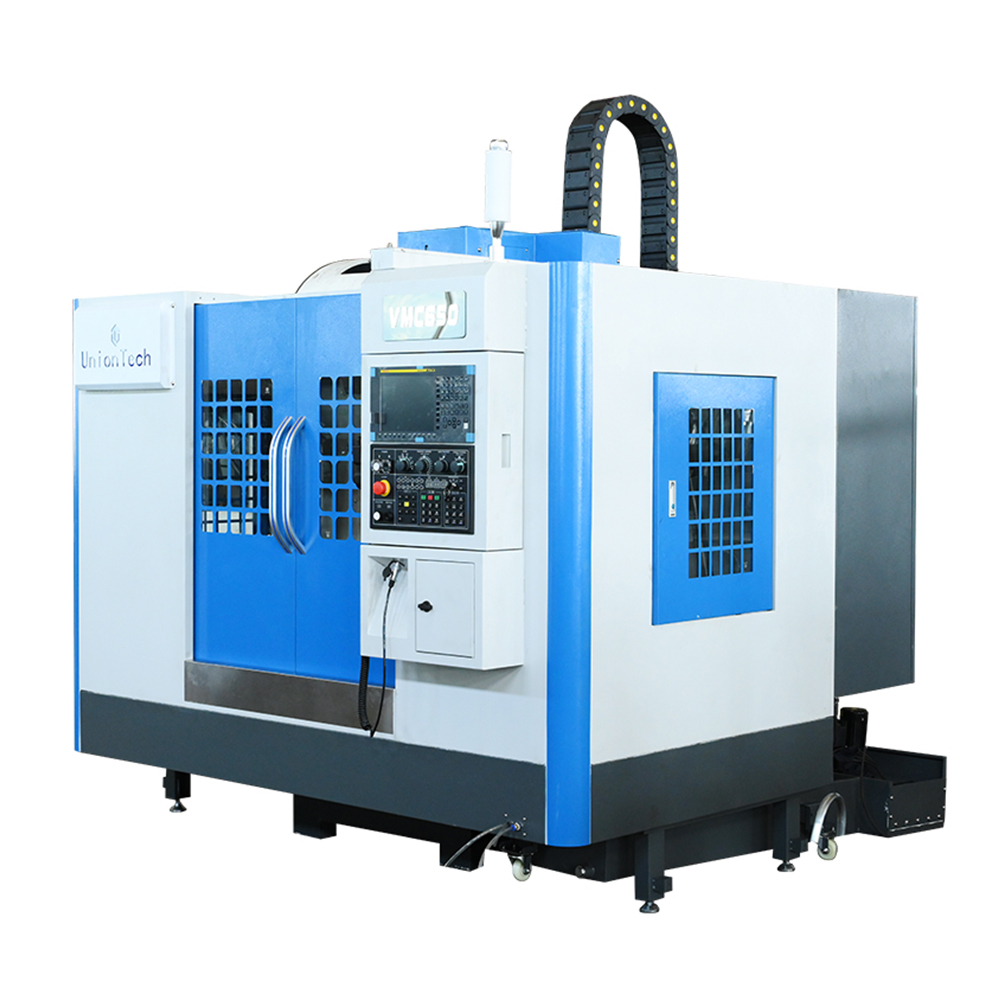

VMC
VMC
The main parts of the machine tool: base, table, column, bed saddle, spindle box are made of high-quality resin sand molding, high-strength high-quality cast iron, with a perfect heat treatment industrial process to eliminate residual stress, and the arrangement of sufficient reinforcing plate, to ensure that the whole machine has sufficient strength, rigidity and high stability;
Inquiry Now

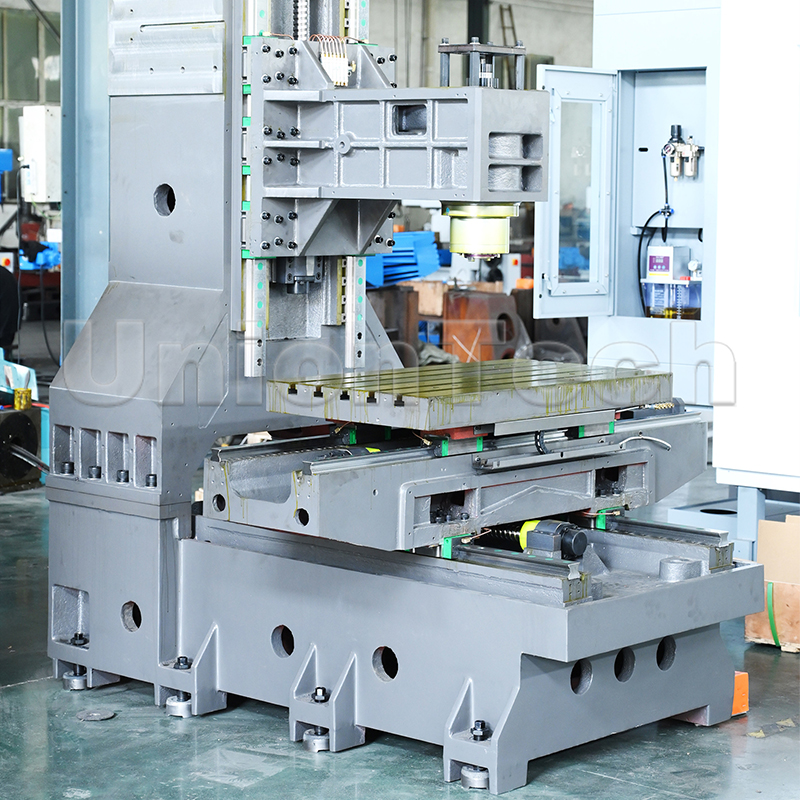

·The main parts of the machine tool: base, table, column, bed saddle, spindle box are made of high-quality resin sand molding, high-strength high-quality cast iron, with a perfect heat treatment industrial process to eliminate residual stress, and the arrangement of sufficient reinforcing plate, to ensure that the whole machine has sufficient strength, rigidity and high stability;

·Adopt Taiwan original heavy-duty linear guide rail, strong rigidity and good dynamic precision;

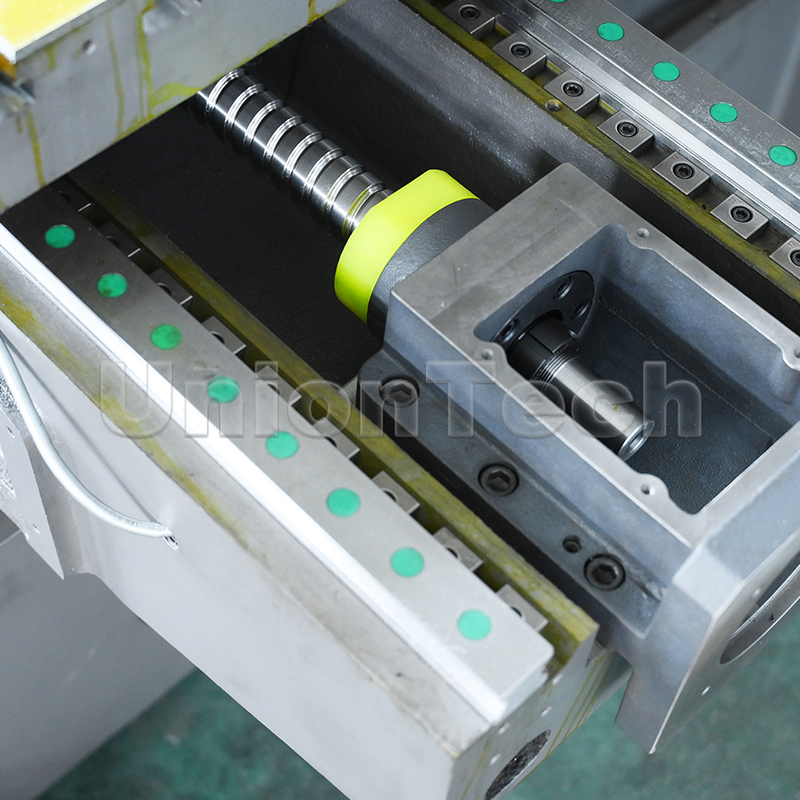

·Three-axis sensing adopts Taiwan-made grinding double-nut roller screw, compact structure, smooth movement and high precision;

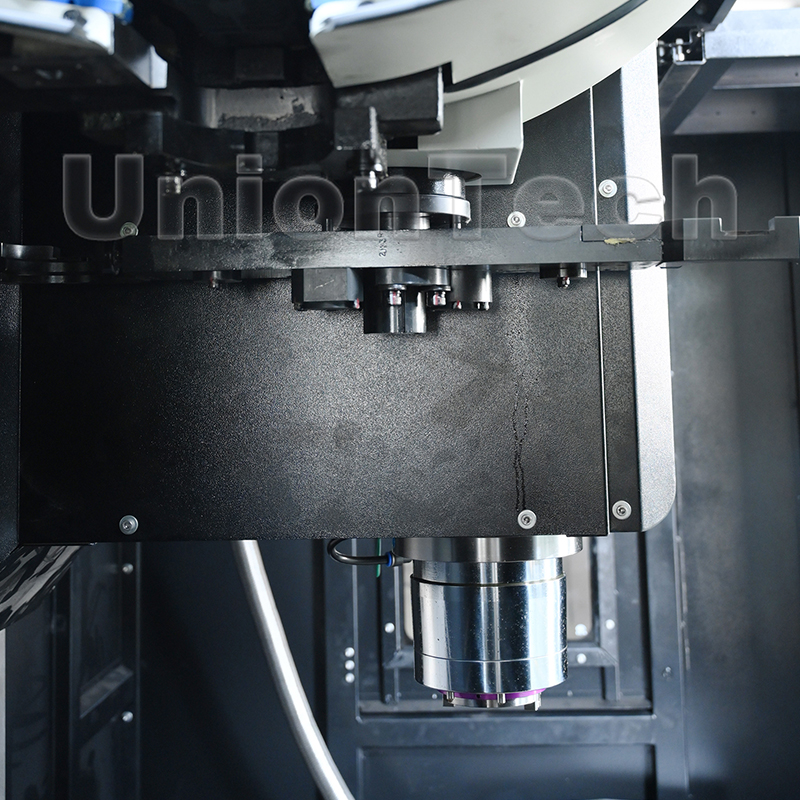

·High rigidity Taiwan-made spindle with grease lubrication, which can make the spindle bearing get constant and reliable lubrication;

·The base adopts casting large water disk structure, good waterproof performance.




ProjectUnitVMC650VMC850VMC960VMC1160
X- axis travelmm6508009001100
Y- axis travelmm400500600600
Z- axis travelmm500500700600
Table Sizemm900*4001000*5001000*6001200*600
Maximum table loadkg4005006001000
T-slotmm3*18*1305*18*1005*18*1005*18*125
Spindle taper
BT40BT40Bt40BT40
Spindle powerkw5.5/7.57.5/117.5/1111/15
Maximum Spindle speedrpm8000800080008000
Rapid Traversem/min48/48/3648/48/4848*48*3636/36/24
Cutting feedmm/min1-80001-80001-800018000
Spindle nose to tablemm120/320130-630130-8001-8000
Maximum tool diametermmΦ90Φ78/Φ120Φ78/Φ120Φ78/Φ120
Maximum table weightkg8888
Positioning accuracymm±0.008±0.0075±0.0075±0.0075
Repeat accuracymm±0.005±0.005±0.005±0.005
Machine Weightkg4000560067007000
Dimensionmm2300*1950*24502600*2300*28002900*2400*28002400*2480*2960
