Horizontal Lathes

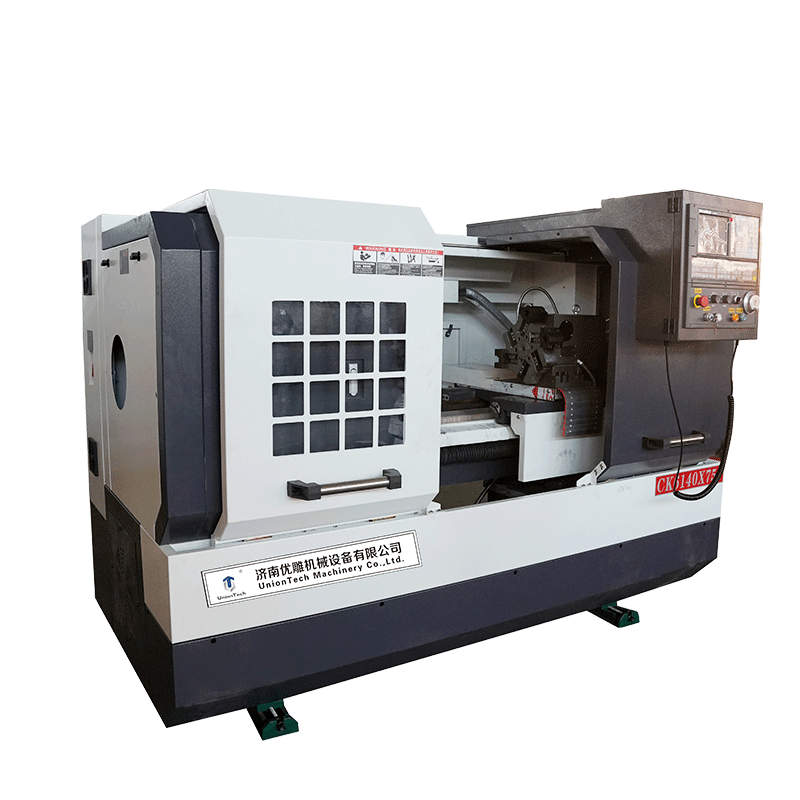

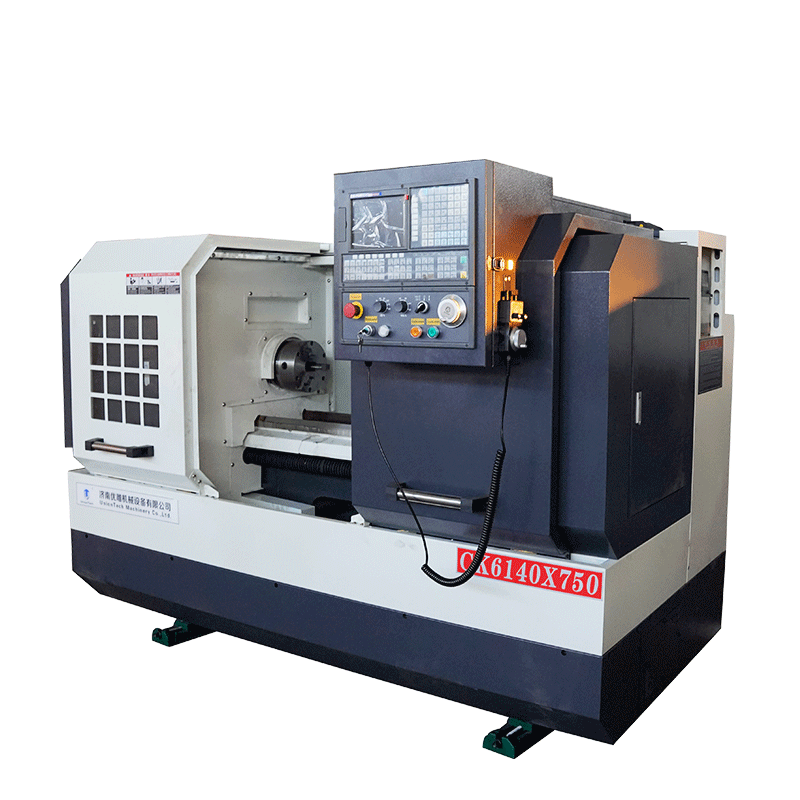

6140x750 with GSK controller

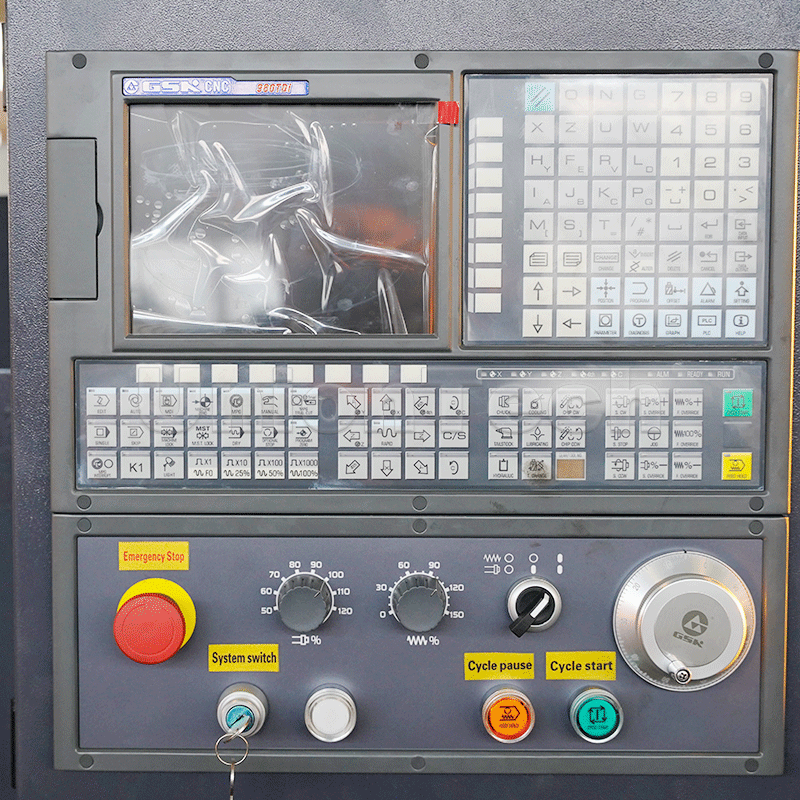

GSK controller( FANUC/SYNTEC/SIEMENS as optional)

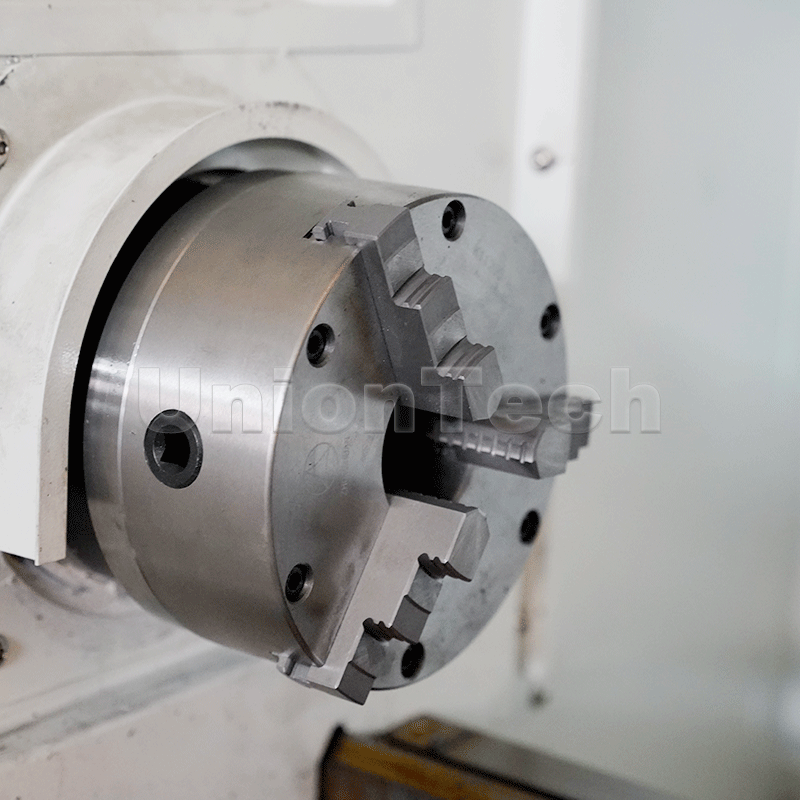

3-jaw chuck
Max.processing length:750mm
Inquiry Now

方格.pngVideo

方格.pngParameter

SpecificationsCK6136CK6140CK6150CK6160
Max. turning diameter on the bedφ360φ400φ500φ600
The Max. turning diameter of the pullerφ180φ200φ290φ320
Max. processing length750/1000/1500750/1000/1500750/1000/1500/2000750/1000/1500/2000
Spindle end formA2-6A2-6A2-8A2-8
Spindle  through hole diameter525282/105/13082/105/130
Spindle hole front taperMT5MT5MT6MT6
Spindle motor power5.55.57.57.5/11
Chuck size200200250250/320
Ball screw specifications2006/40082006/40082506/40082506/4008
Fast moving speed (x/z)X:6 Z:8X:6 Z:8X:6 Z:8X:6 Z:8
Repeated positioning accuracy(X/Z)±0.005±0.005±0.005±0.005
Workpiece machining accuracyIT6-IT7IT6-IT7IT6-IT7IT6-IT7
Workpiece surface roughnessRal.6Ral.6Ral.6Ral.6
Tailstock sleeve diameter60607575
Tailstock sleeve stroke130130140140
Tailstock sleeve taperMT4MT4MT5MT5
Rail formSingle+Flat RailsSingle+Flat RailsSingle+Flat RailsSingle+Flat Rails
Diameter2150/2400/2900*1500*16502500*1500*16502500*1500*16902600*1600*1820
Machine weight1800180020002300
