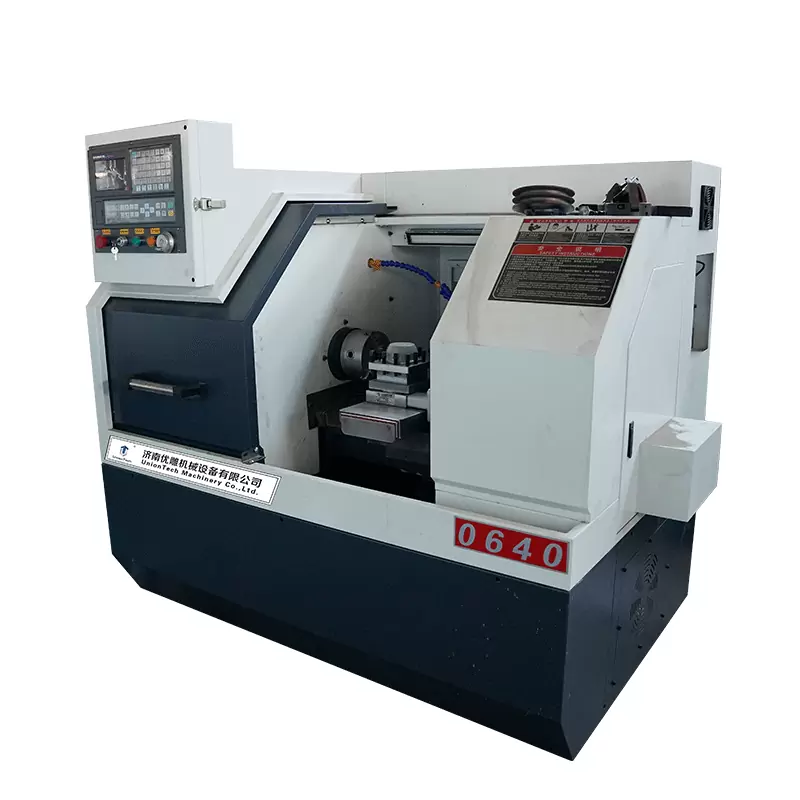

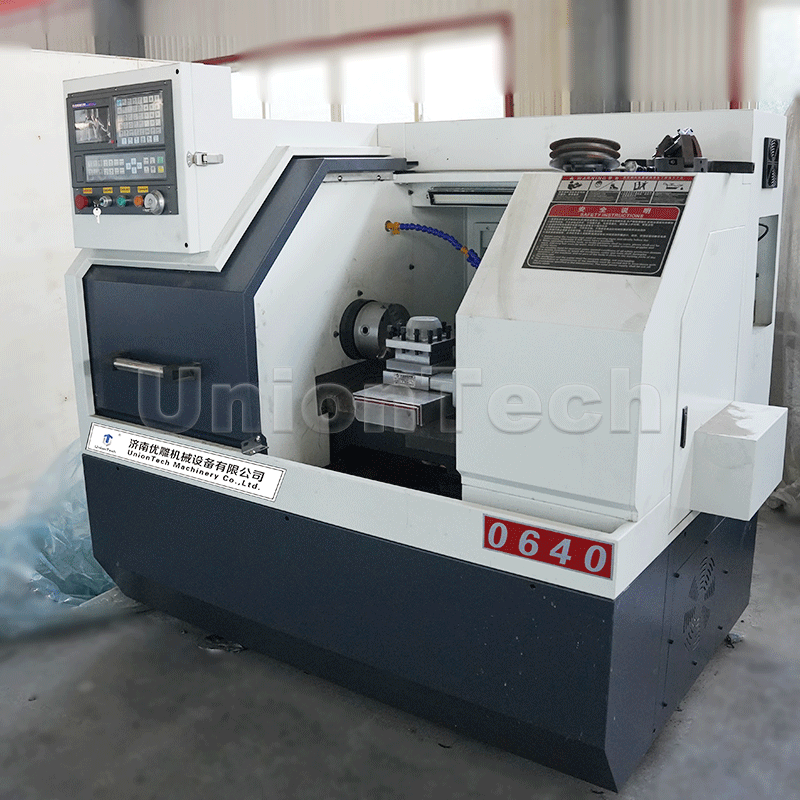

Horizontal Lathes
CK0640

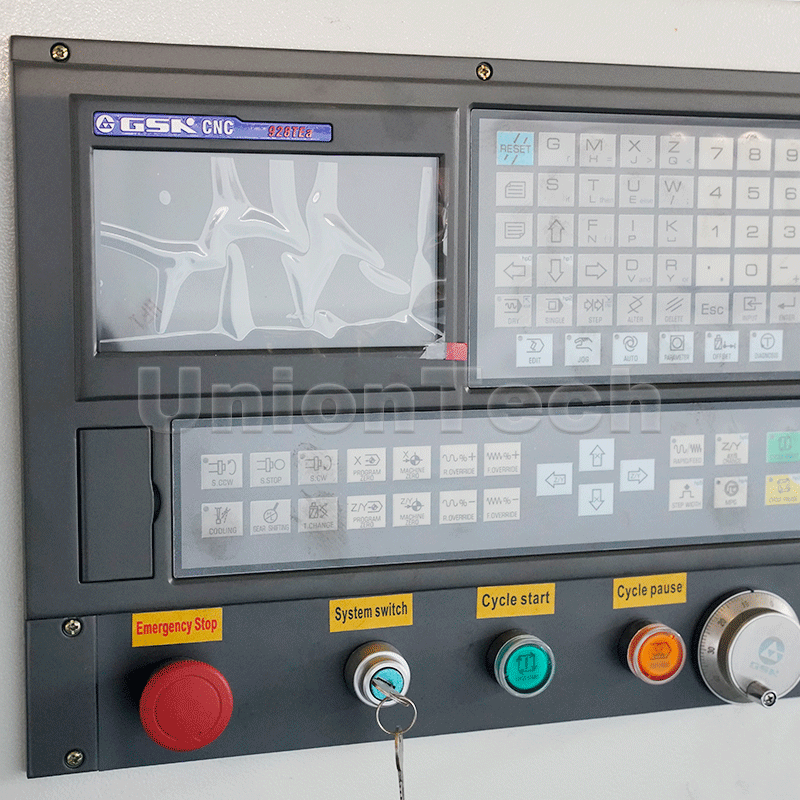

GSK controller( FANUC/SIEMENS/SYNTEC as optional)
Max. turning diamter : φ200mm
Max.Processing length: 200mm
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.pngVideo

方格.pngParameter

SpecificationsUnitCK0640CK6130CK6132
Max. turning diameter on the bedmmφ200φ300φ320
Max. processing lengthmm200400400
Max stroke X/Zmm200/240280/400300/400
Spindle end form
A2-5A2-5A2-5
Spindle through hole diametermmφ48
Inner diameter of main shaft drawing tubemmφ40
Spindle maximum speedrpm2200
Clamping method
Collet tighteningCollet tightening/Manual 160 chuckManual 160 chuck
Spindle motor powerkw344
Repeated positioning accuracy(X/Z)mm±0.005
Diamensionsmm1500*1000*16001600*1100*16501600*1100*1650
