Horizontal Lathes

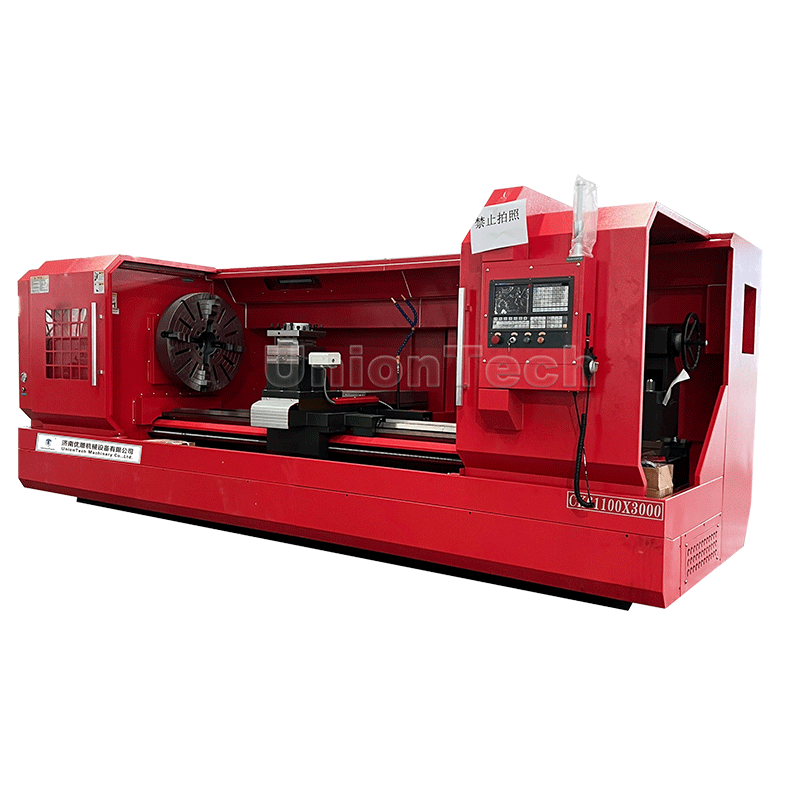

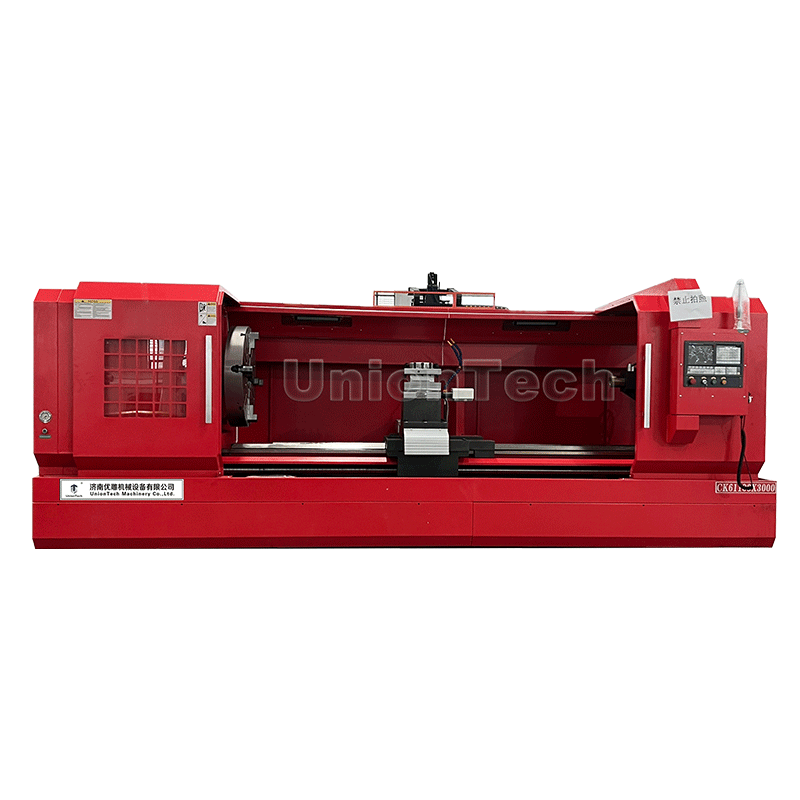

CK61100X3000
GSK controller ( FANUC/SYNTEC/SIEMENS/KND as option)
4-Jaw chuck
4-station
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video


方格.pngParameter

Main Technical DataUnitCK61100CK61140CK61150
Maximum turning diameter of the bedmmΦ1000Φ1400Φ1500
Maximum turning diameter on the palletmmΦ630Φ1000Φ1100
Maximum Processing lengthmm1500/2000/30001500/2000/30001500/2000/3000
Spindle drive form
Fouth GearFouth GearFouth Gear
Spindle speed series
None
Spindle speedr/min30-84/53-150/125-350/300-835
Spindle head form
D11
Spindle hole front taper
Metric 120 1:20Metric 140 1:20Metric 140 1:20
Spindle through hole diametermm105/130
Main motor powerkw11/1518/2218/22
X/Z axis positioning accuracymm0.025/0.03
Workpiece machining accuracymm0.01/0.015
X fast moving speedmm/min4000
Z fast moving speedmm/min6000
Tailstock sleeve diametermm100160160
Tool Holder form
Motorized 4 - station
Tool holder maximum stroke X/Zmm40*40
Machine diamentionsmm3600/4100/4600/5600*1950*20004250/4750/5250*2300*25004600/5100/6100*2300*2600
Machine weightT4.8/5.6/6.78.0/9.0/10.58.3/9.5/11.0
