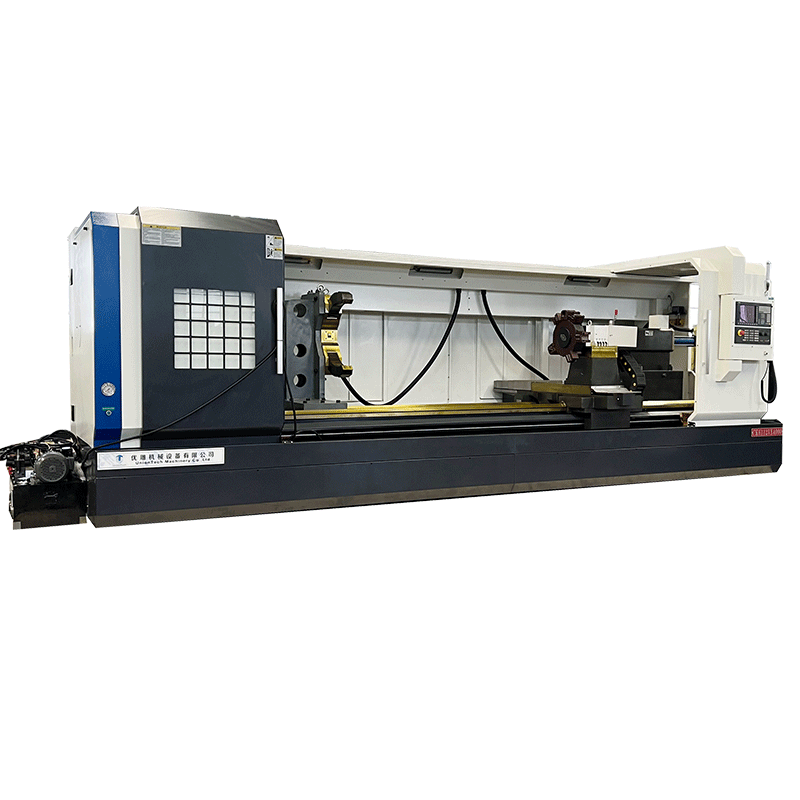

CK61125x4000 lathe machine for metal

CK61125X4000 big size cnc lathe with SIEMENS controller
4-station turret
12-station power turret

Inquiry Now

Video

Parameter

Type	Item	Unit	CK61125X4000 cnc lathe machine with SIEMENS controller
Processing capability	Max.swing diameter of the bed	mm	Φ1250
	Maximum rotary diameter of drag plate	mm	Ф880
	Maximum cutting diameter	mm	Φ1250
	Maximum machining length	mm	1000/1500/2000/3000/4000
	Effective machining length	mm	850/1350/1850/2850/3850
Traveled	Maximum X/Z axis travel	mm	2000
Traveled	X/Z axis minimum displacement unit	Mm	0.001
	Chuck		1000四爪
Spindle	Spindle through-hole diameter	mm	Ф105/130
	Number of spindle stages		High and low speed 8 speeds Variable speed in gear
	Spindle speed limit	Rpm	2.5-6.5/4-11.5/9.5-26/23-6330-85/53-150/125-350/300-835
	Main motor power (inverter)	Kw	15kw
	Frequency converter	Kw	15
	X/Z axis	N.m	10/15
	X/Z axis rapid traverse speed	M/min	4/6
Feeding tool holder	Toolholder type		4-tation
	Toolholder size	mm	40*40
	Repeatable positioning accuracy of tool holder	mm	≤0.004
	Tailstock sleeve diameter	mm	Φ100
	Tailstock sleeve stroke	Mm	300
Other	Taper hole of tailstock center		8#
	Net weight of machine	Kg	6500/7000/8000
	Power requirement (power/current)	Kw/A	20kW/30A
	Width of bed guideway	Mm	755
