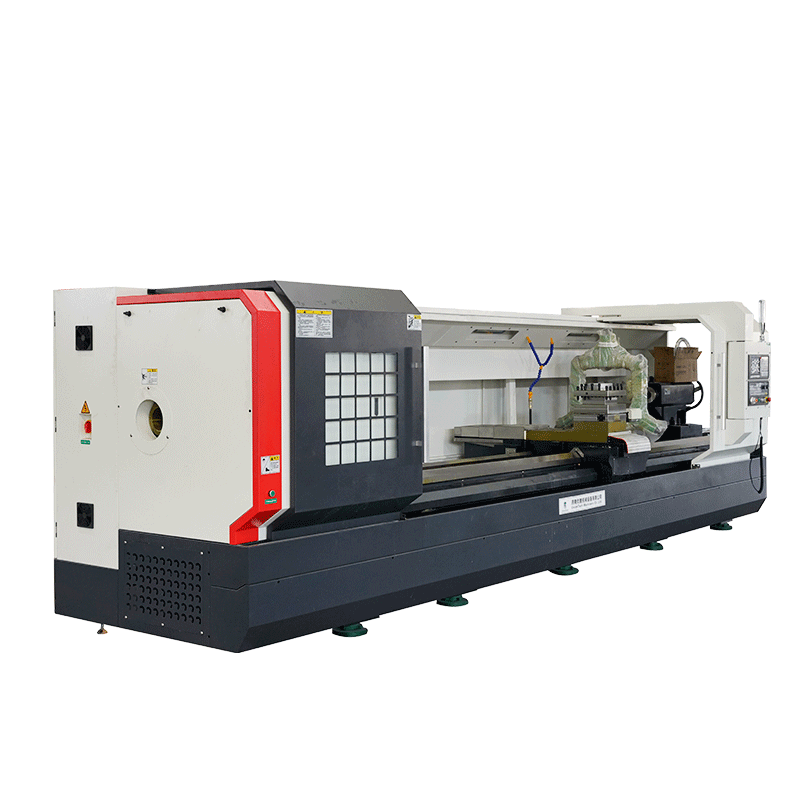

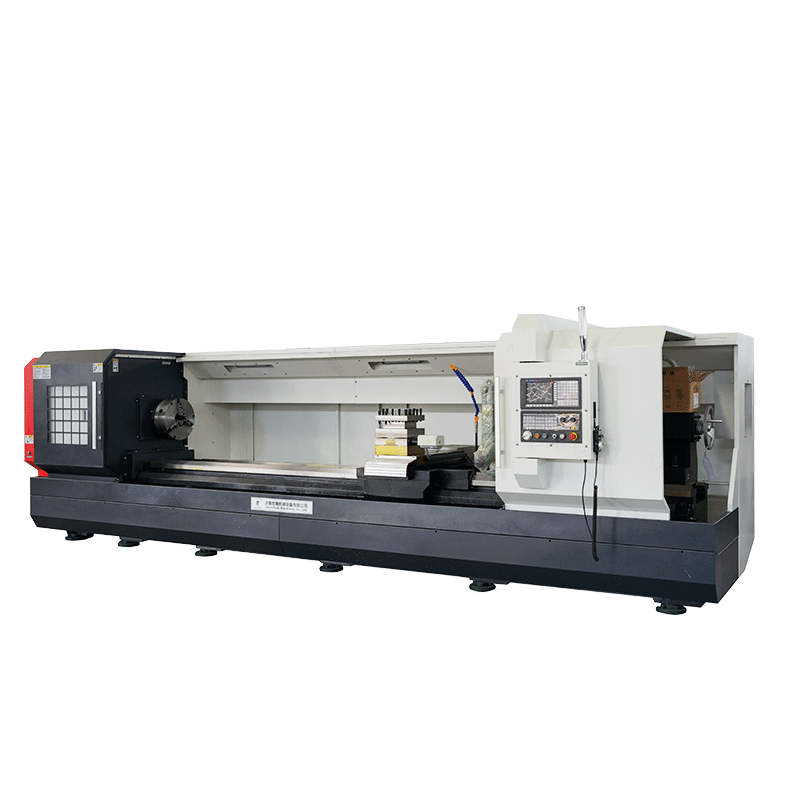

Horizontal Lathes
CK61125X3000

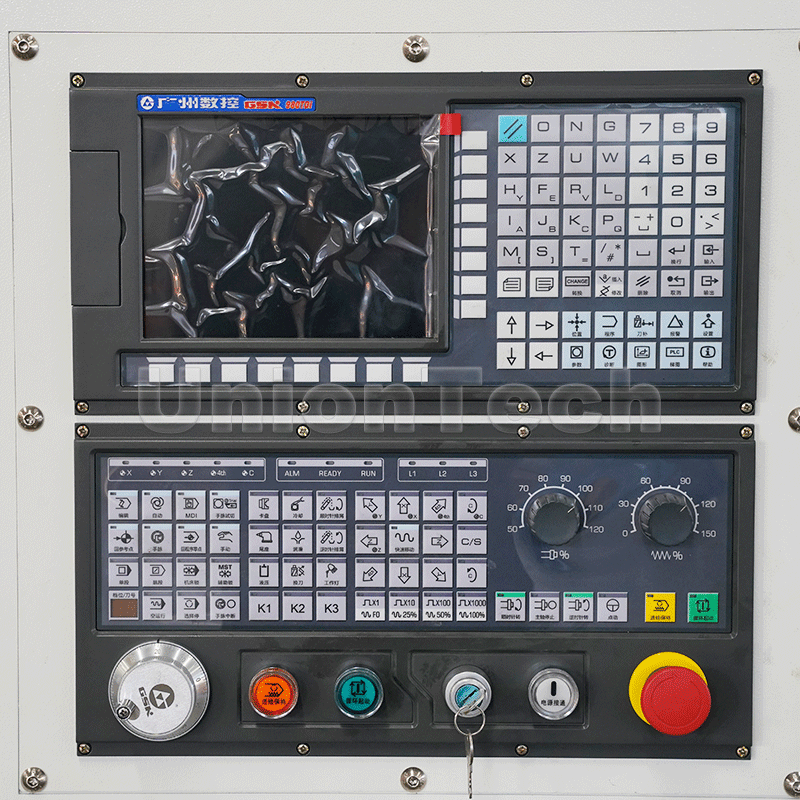

GSK controller(FANUC/SIEMENS/SYNTEC/MITSUBISHI as optional)
Max.turning dimater: 1250mm
Price range: $12500~$18900
Inquiry Now

方格.pngVideo

方格.pngParameter

Main Technical DataUnitCK61125CK61140CK61150
Maximum turning diameter of the bedmmΦ1250Φ1400Φ1500
Maximum turning diameter on the palletmmΦ850Φ1000Φ1100
Maximum Processing lengthmm1500/2000/30001500/2000/30001500/2000/3000
Spindle drive form
Fouth GearFouth GearFouth Gear
Spindle speed series
None
Spindle speedr/min30-84/53-150/125-350/300-835
Spindle head form
D11
Spindle hole front taper
Metric 120 1:20Metric 140 1:20Metric 140 1:20
Spindle through hole diametermm105/130
Main motor powerkw11/1518/2218/22
X/Z axis positioning accuracymm0.025/0.03
Workpiece machining accuracymm0.01/0.015
X fast moving speedmm/min4000
Z fast moving speedmm/min6000

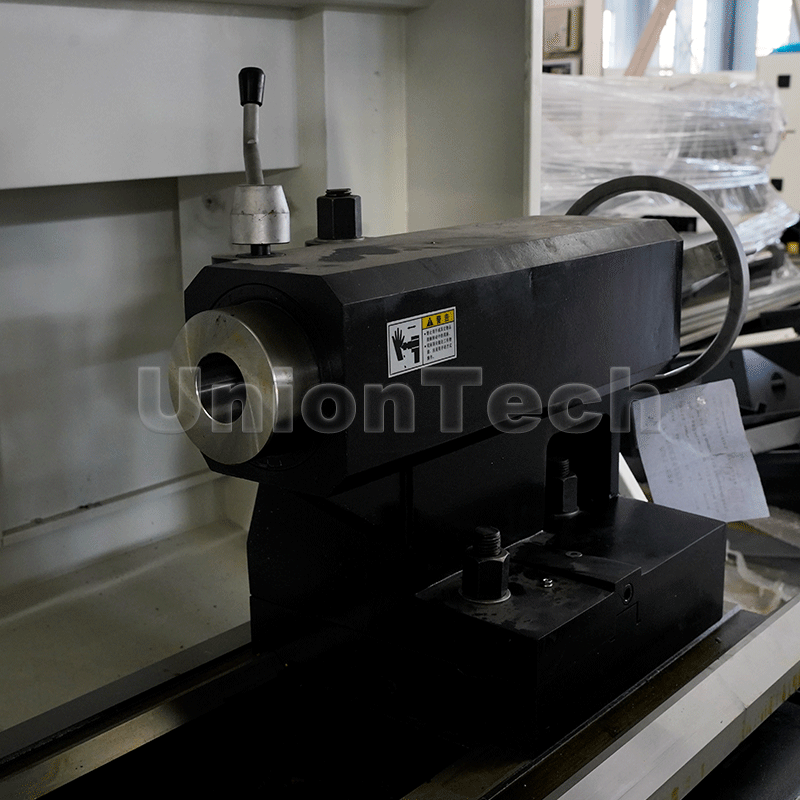

Tailstock sleeve diametermm100160160

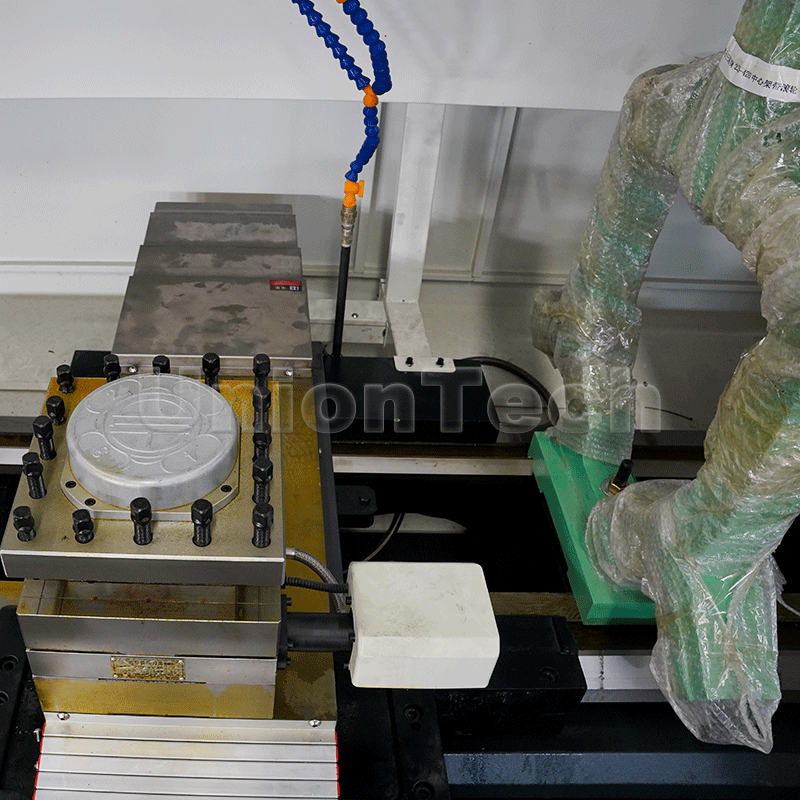

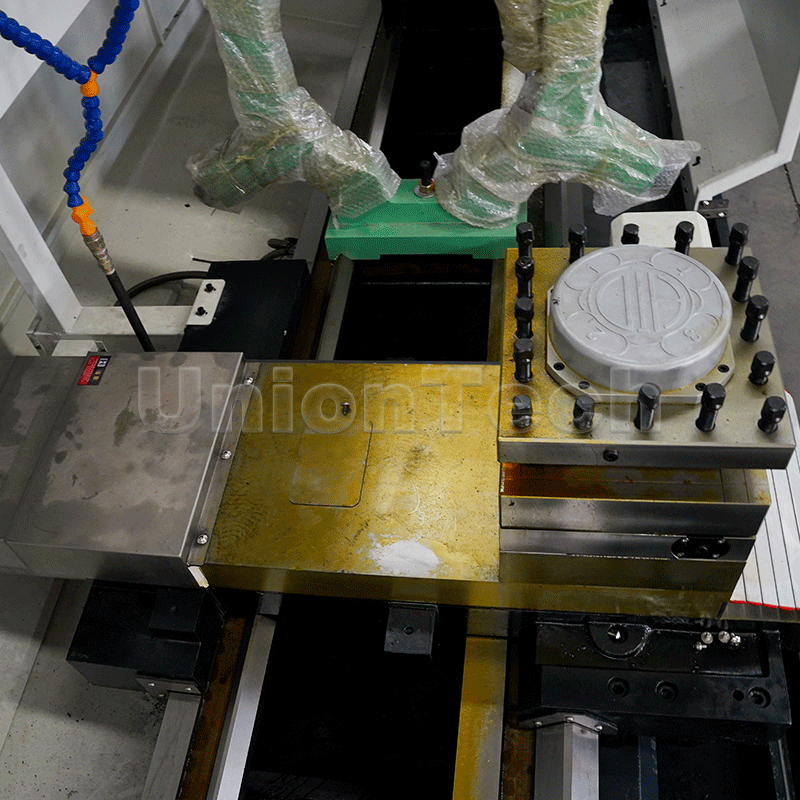

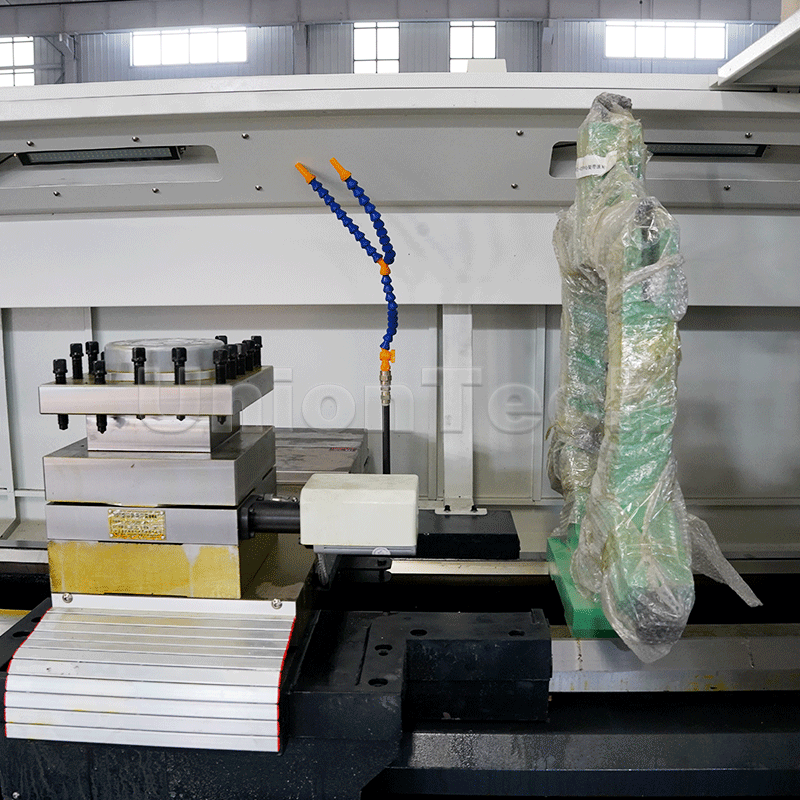

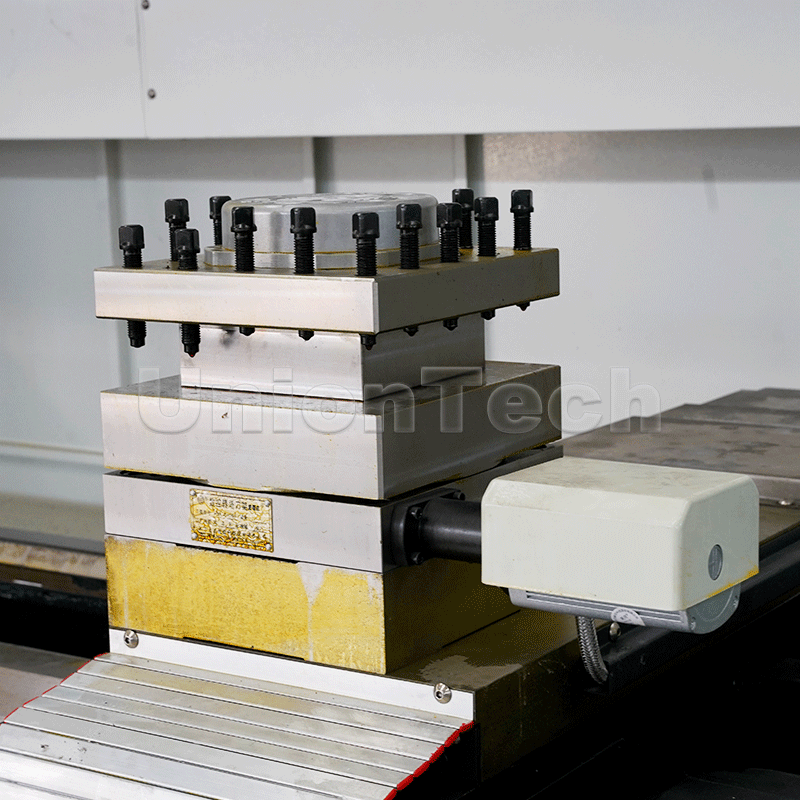

Tool Holder form
Motorized 4 - station
Tool holder maximum stroke X/Zmm40*40
Machine diamentionsmm3700/4200/4700*2000*22004250/4750/5250*2300*25004600/5100/6100*2300*2600
Machine weightkg5.1/6.0/7.28.0/9.0/10.58.3/9.5/11.0
