Horizontal Lathes
CK6140

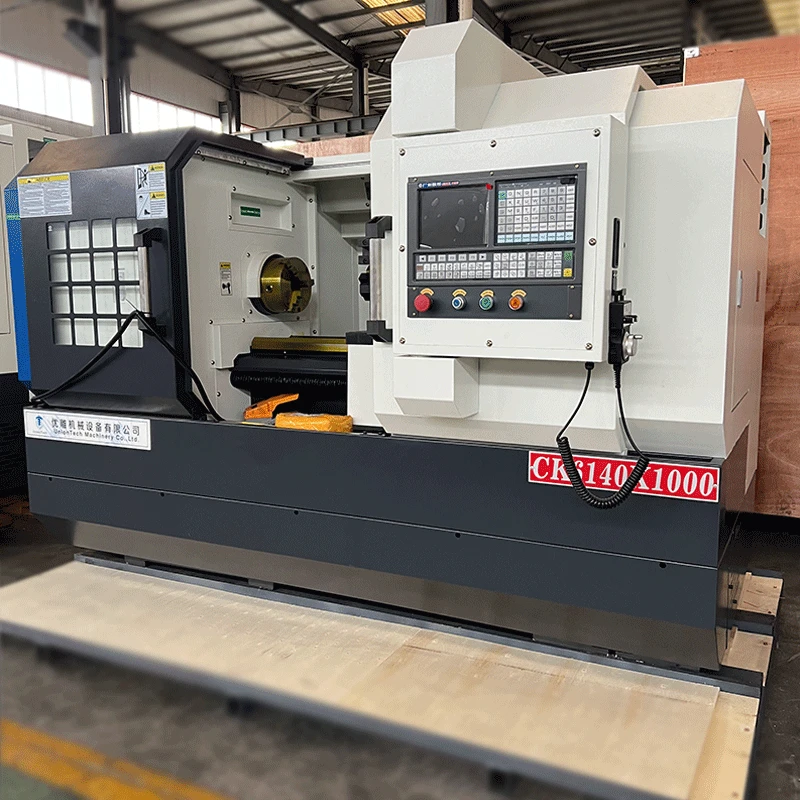

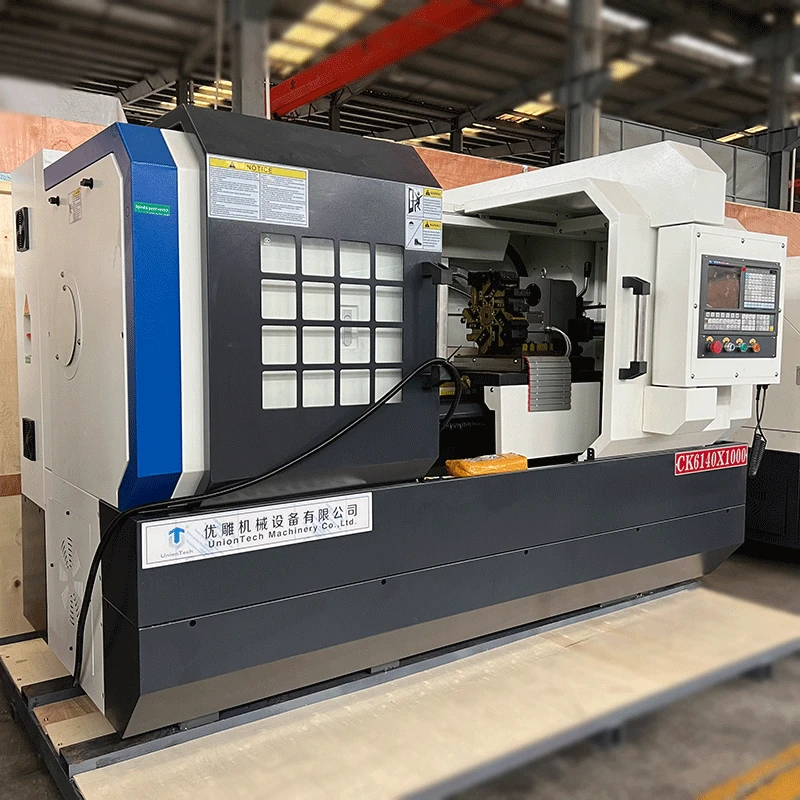

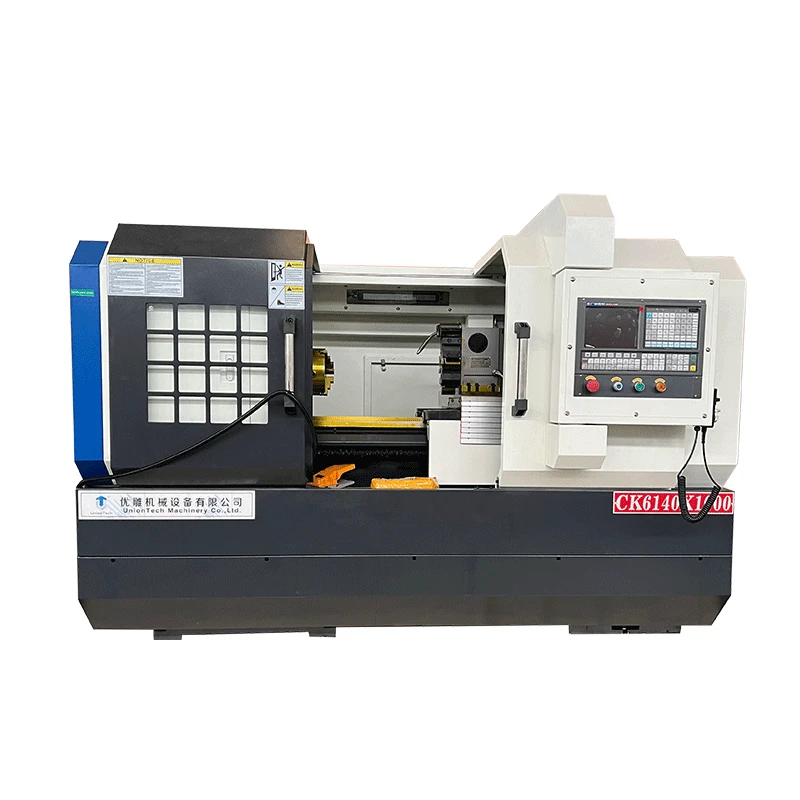

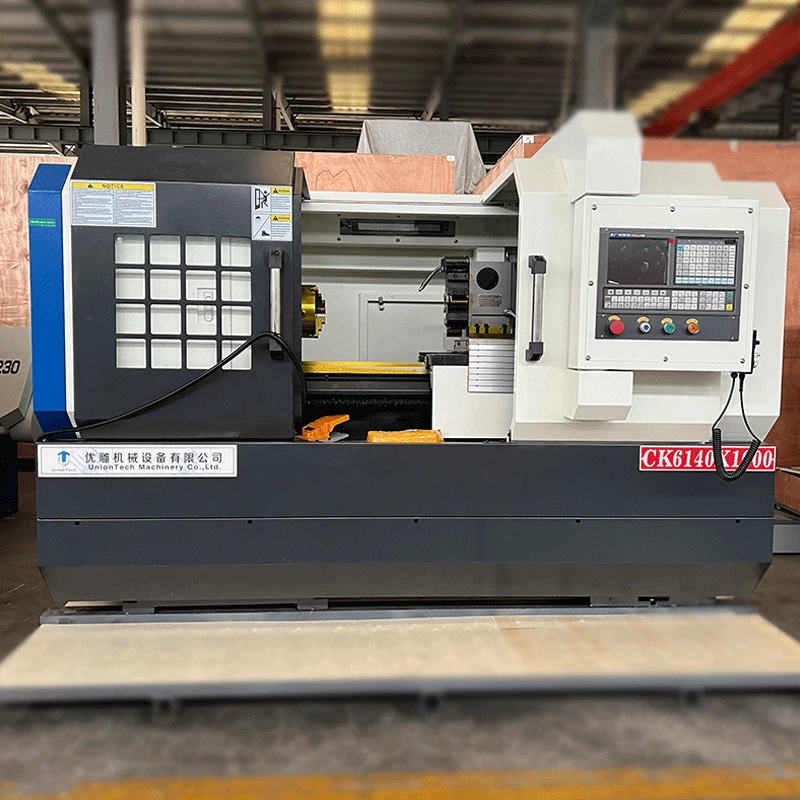

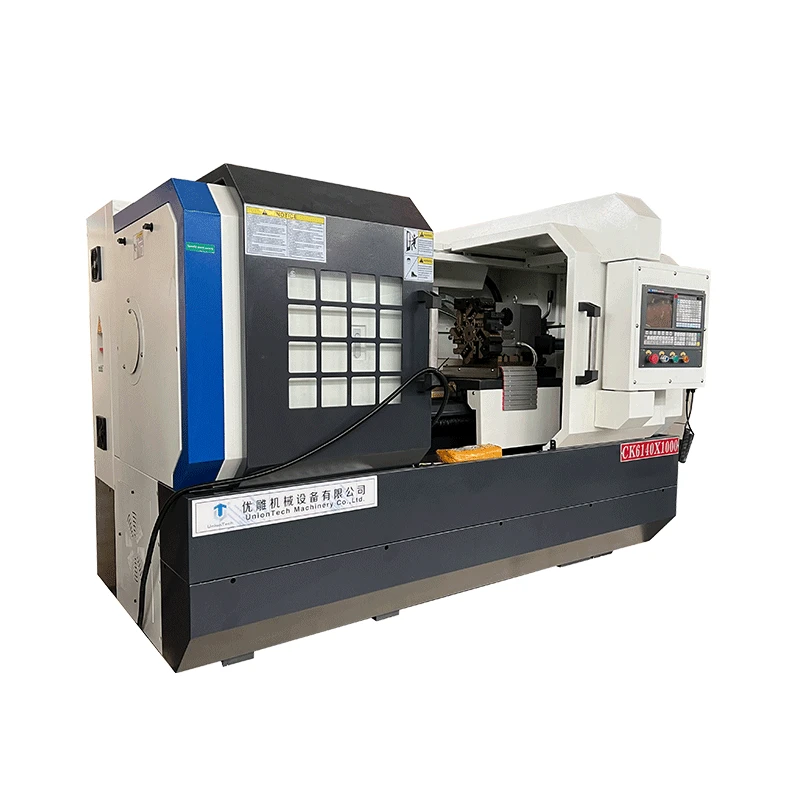

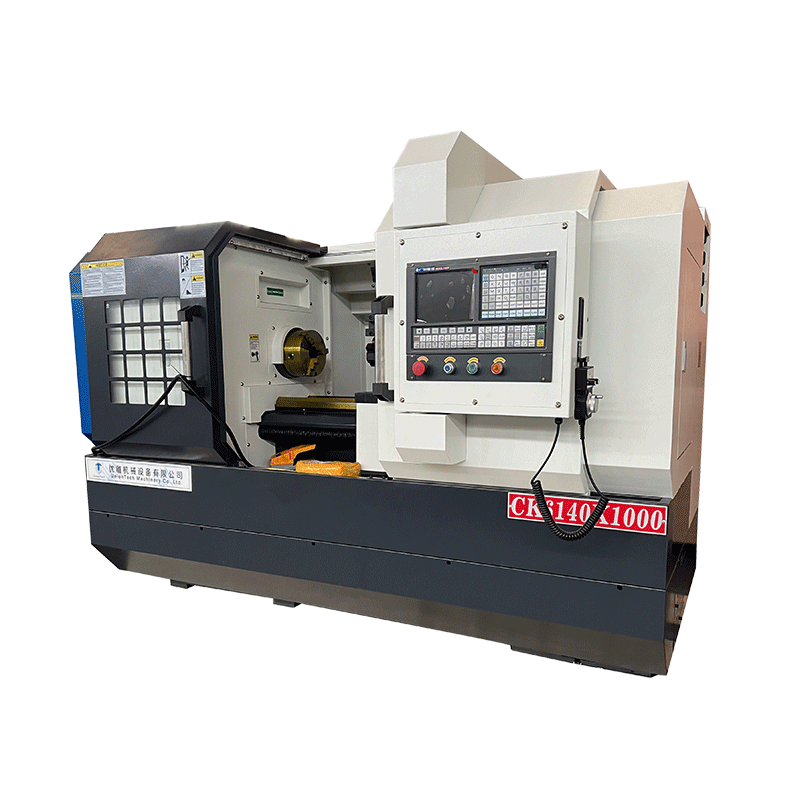

CK6140X1000 cnc lathe machine with GSK controller
3-jaw chuck
8-station turret
Inquiry Now

方格.pngVideo

方格.png Parameter

SPECIFICATIONSUnitsCK6140 cnc lathe machine
Swing over bedmm400
Swing over cross slidemm290
Distance between centersmm750/1000/1500/2000
Spindle boremm82 /105/130
Spindle bore taper-Metric φ90/1:20
Spindle nose type-A2-8(A2-11)
Spindle speed steps-Stepless
Spindle speed rangerpm1800 (Optional 800)
Turret/tool post-Eletric 8 position
Tool sizemm25 x 25
X axis travelmm300
Z axis travelmm750/1000/1500/2000
X axis rapid traversemm/min6000
Z axis rapid traversemm/min10000
Tailstock quill diametermm75
Tailstock quill taper-MT5
Tailstock quill travelmm200
Main spindle motorkw7.5
Coolant pump motorkw0.125
Weight for 1000kg2900
Weight for 1500kg3300
Weight for 2000kg3700
Dimension for 1000mm2950x1700x1800
Dimension for 1500mm3650x1700x1800
Dimension for 2000mm4250x1700x1800
