Horizontal Lathes

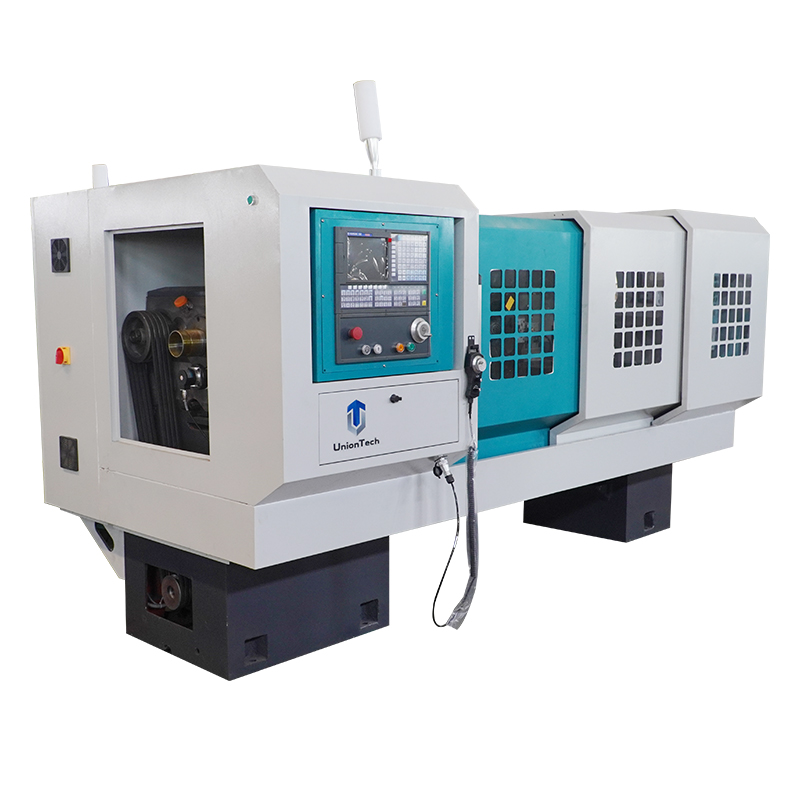

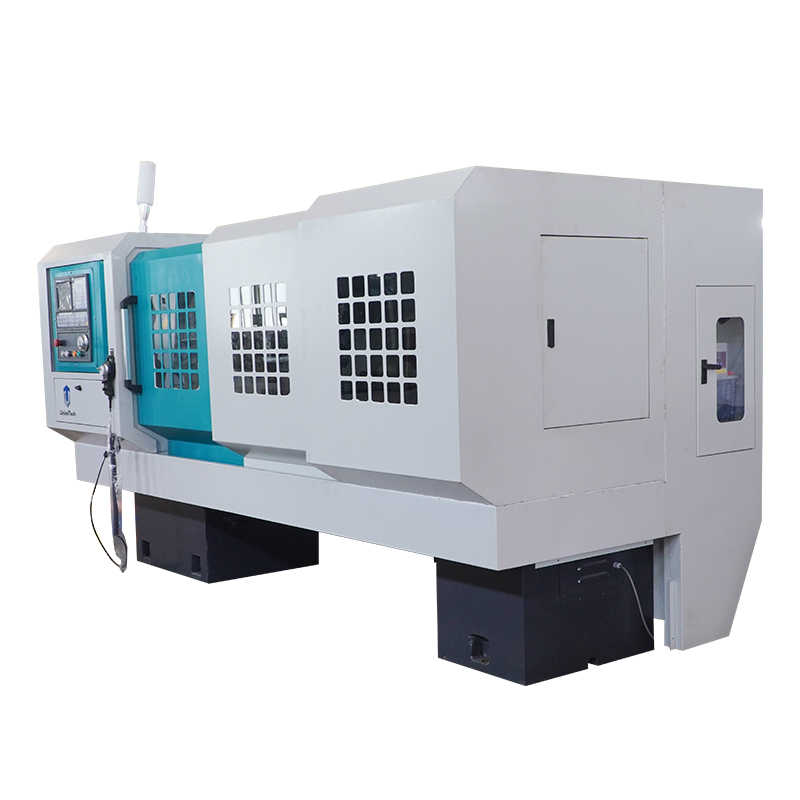

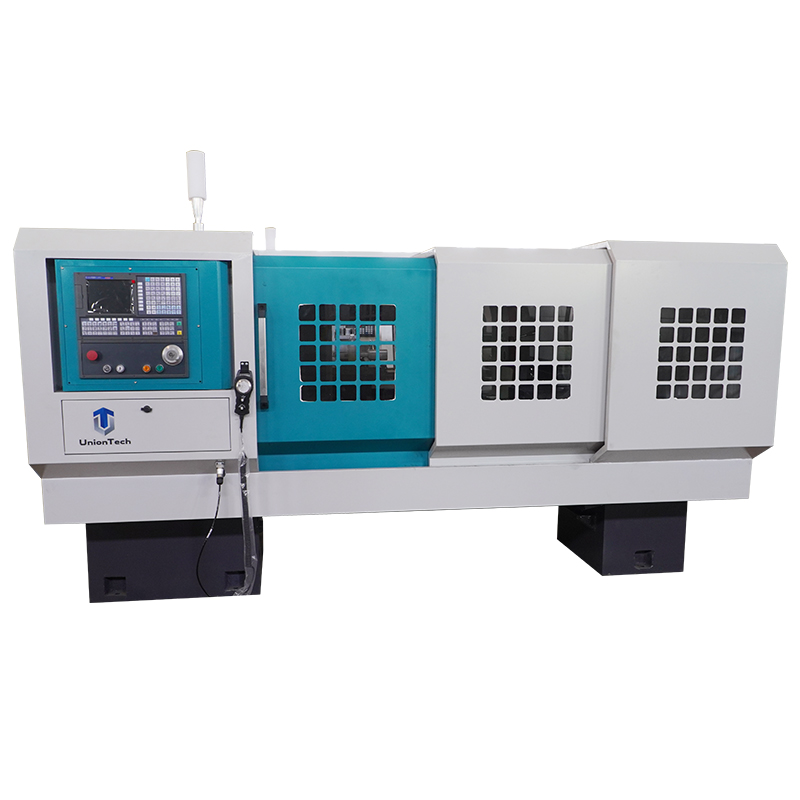

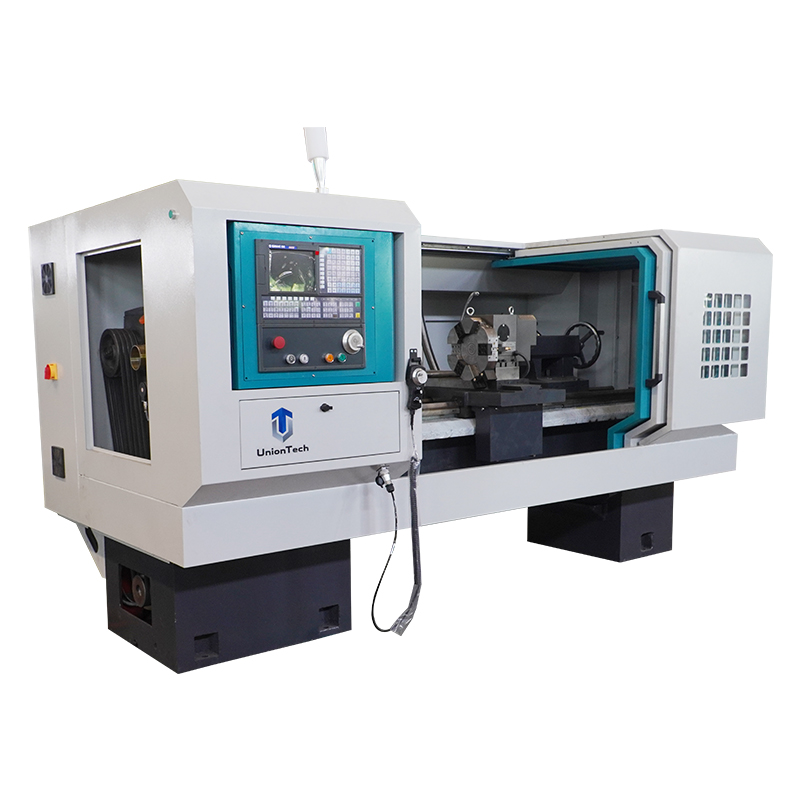

CK6150
Inquiry Now

方格.pngVideo



方格.pngParameter


ItemUT6150P*1000UT6150P*1000
Technical SpecificationsMaximum rotary diameter of the workpiece on the bed (mm)Φ500
Maximum rotary diameter of the workpiece on the slide plate (mm)Φ285
Distance between centers (mm)10001500
Maximum turning length (mm)8701370
Maximum turning diameter (vertical four-station tool holder) (mm)Φ500
Spindle center height (mm)250
Width of bed guideway (mm)390

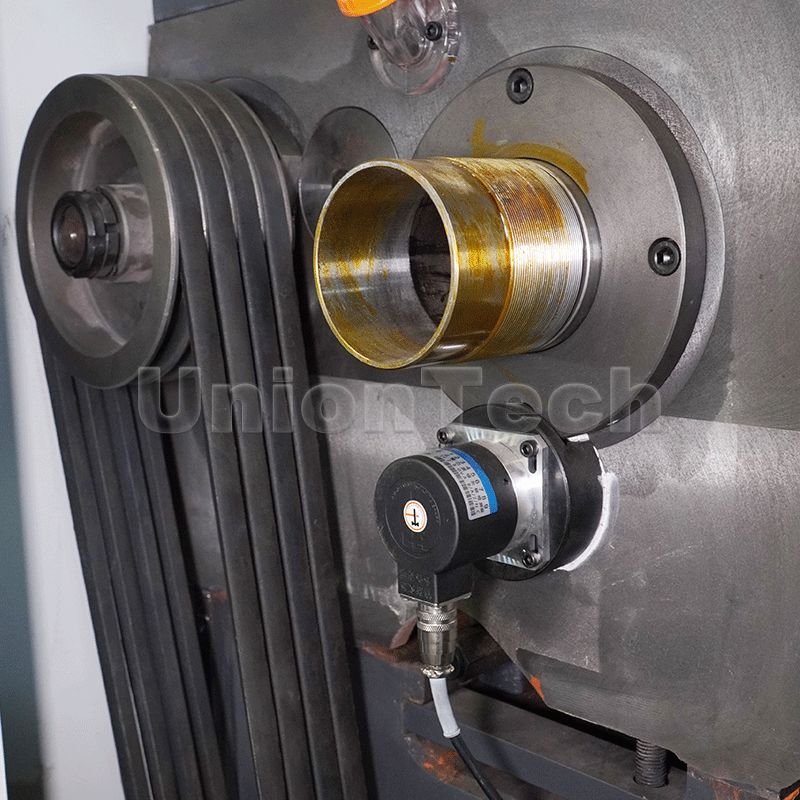

SpindleMain motor (kW)7.5
Spindle bore taper / spindle bore diameter (mm)Metric 1:20 φ90/φ82
spindle headA2-8
Ordinary three-jaw chuck (mm)Φ250
Spindle speed range r.p.mThird gear 45-1600
Tailstock fixturesTailstock sleeve diameter/stroke (mm)φ75/150
Tailstock Sleeve Taper Bore TaperMT5#
Feed systemMax.travel of the tool holderHorizontal (X) mmLongitudinal (Z) mm2609002601400
Ball Screw Diameter* PitchHorizontal (X) mm                                        Longitudinal (Z) mm25054010
Cutting feed range (mm/min)0.01～1000
Repeat positioning accuracyHorizontal (X)Vertical (Z)0.0070.008
Electric Vertical 4-position Tool HolderLDB4-CK6150B
Shank section (mm)25×25
