Horizontal Lathes

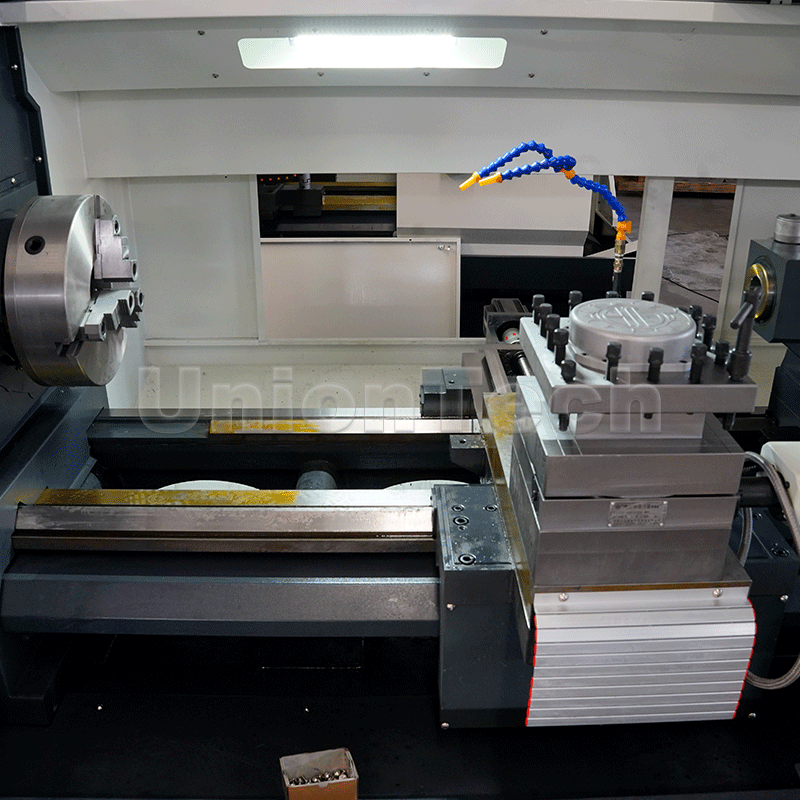

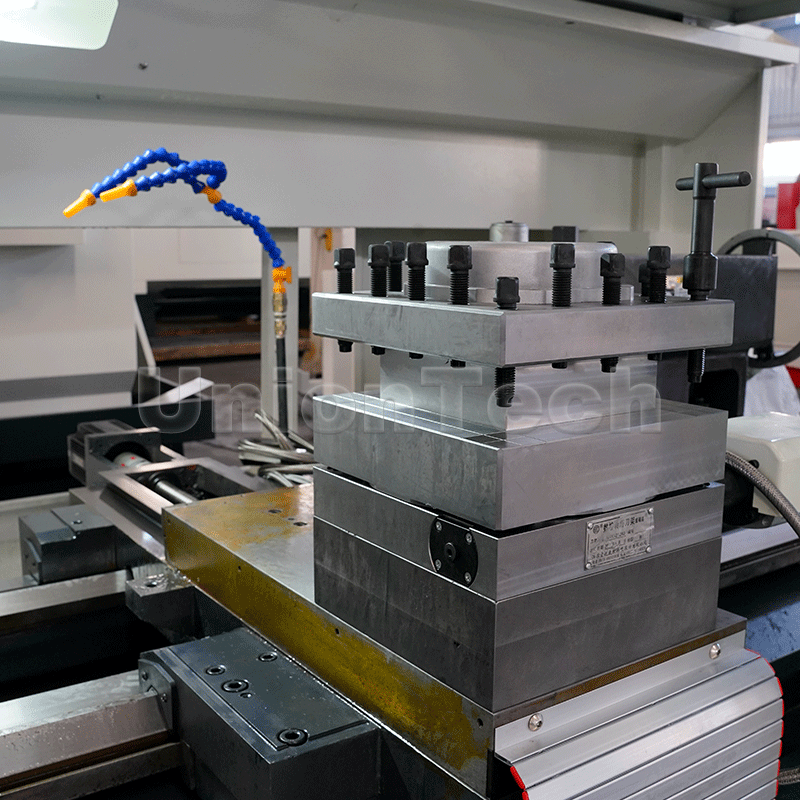

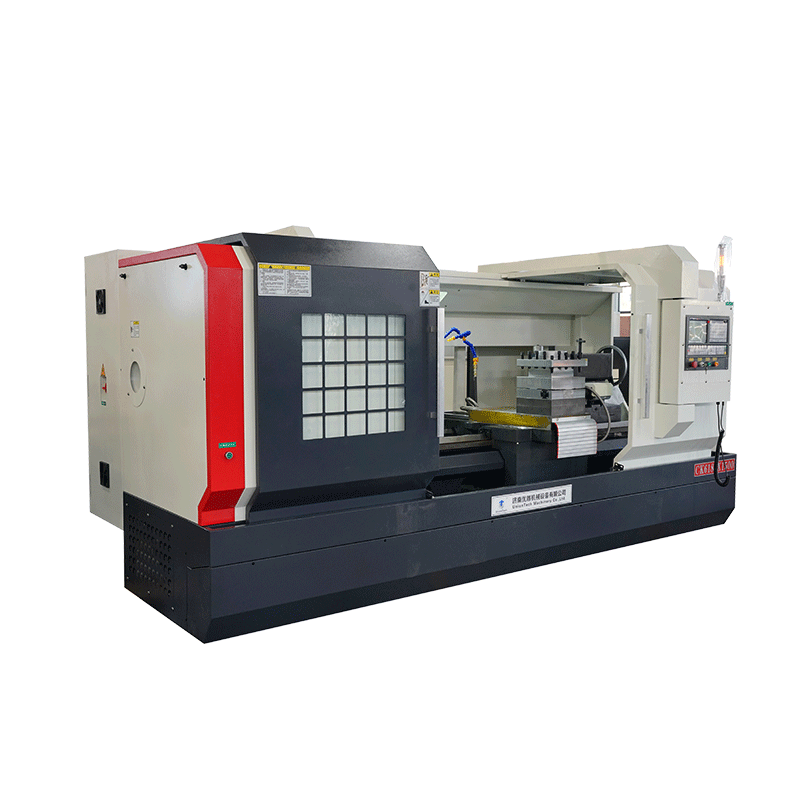

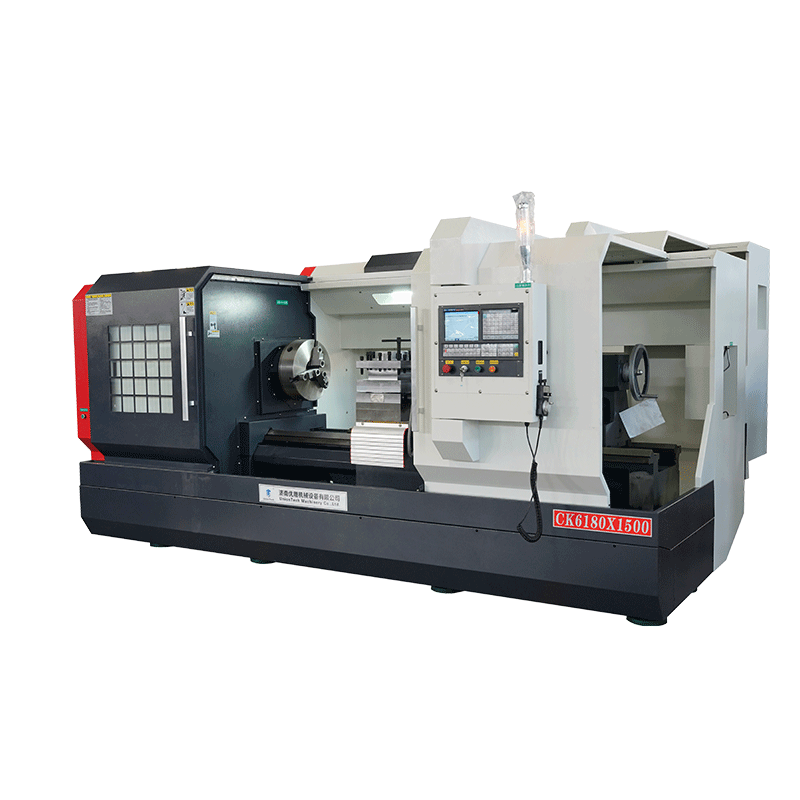

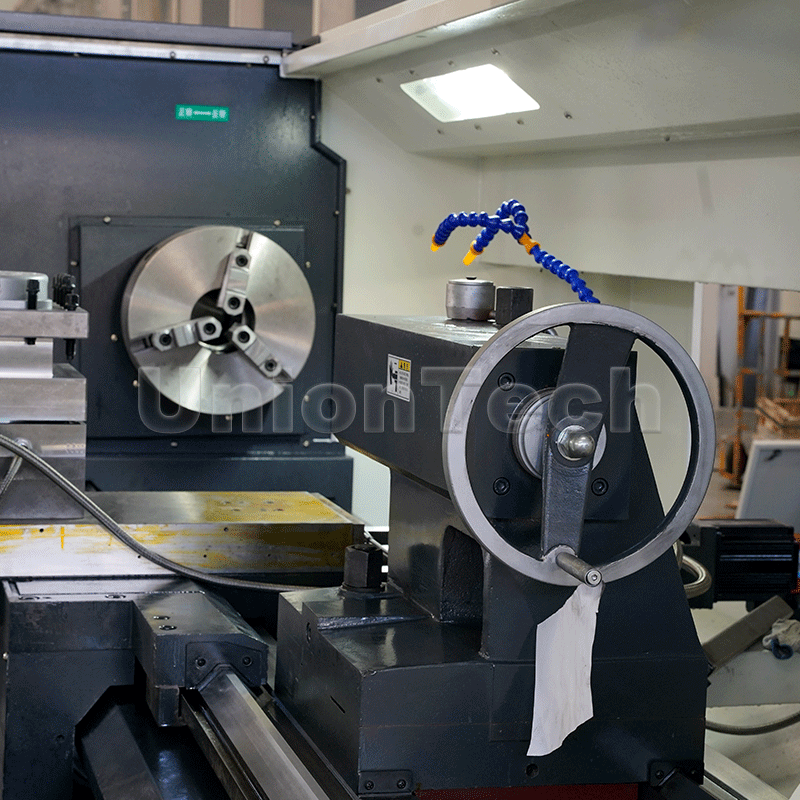

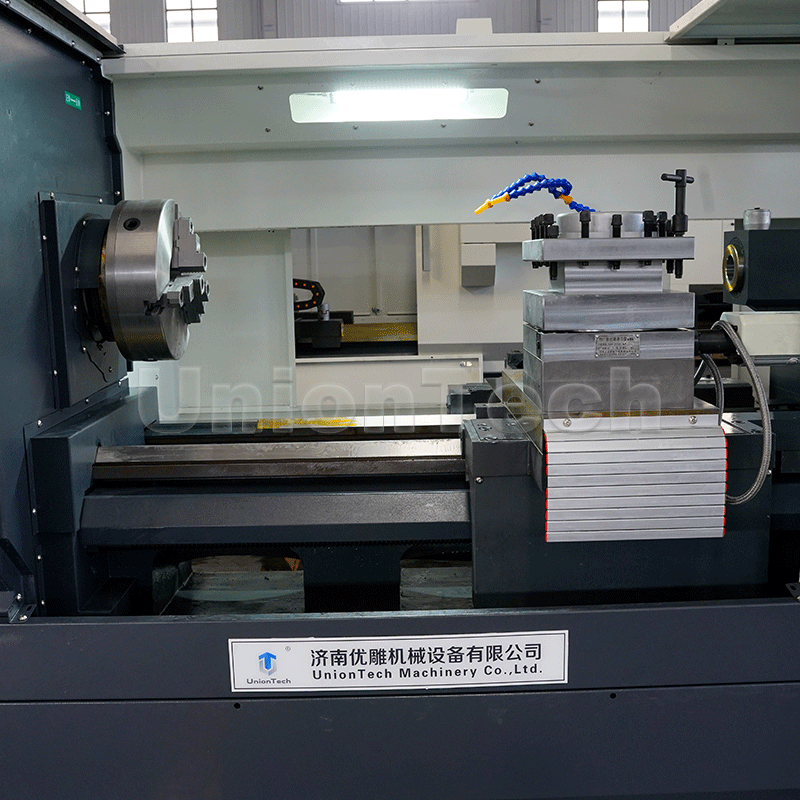

CK6180x1500
GSK controller(FANUC/SIEMENS/MITSUBISHI/SYNTEC as optional)

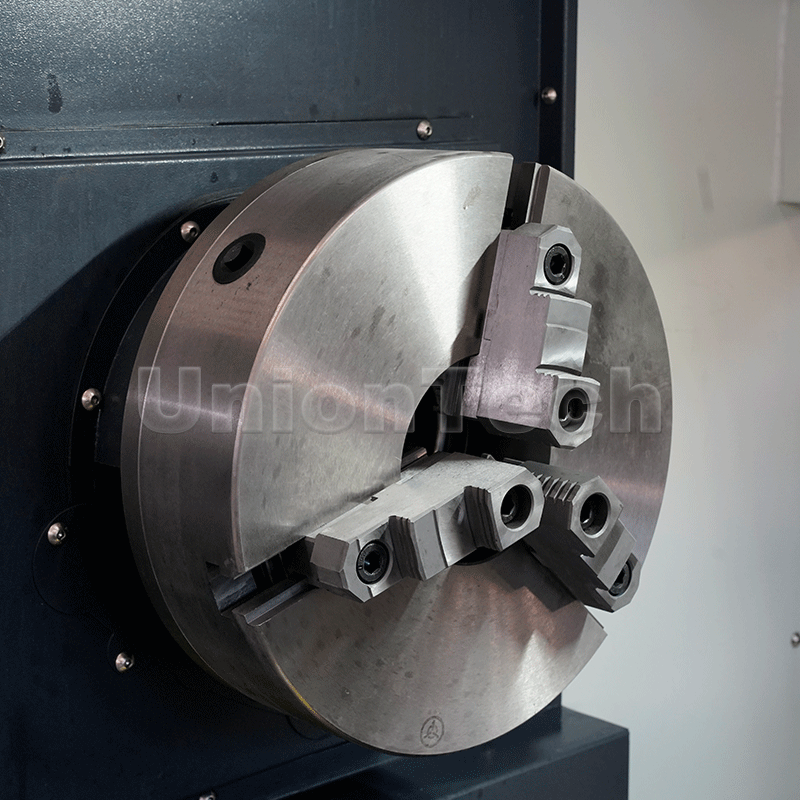

3-jaw chucks
Inquiry Now

方格.png Video

方格.pngParameter

SpecificationsCK6140CK6150CK6160CK6180
Max. turning diameter on the bedφ400φ500φ600φ800
The Max. turning diameter of the pullerφ200φ290φ320φ450
Max. processing length750/1000/1500750/1000/1500/2000750/1000/1500/20001000/1500/2000/3000/4000
Spindle end formA2-6A2-8A2-8A2-8
Spindle  through hole diameter5282/105/13082/105/13082/105/130
Spindle hole front taperMT5MT6MT6MT6
Spindle motor power5.57.57.5/1111

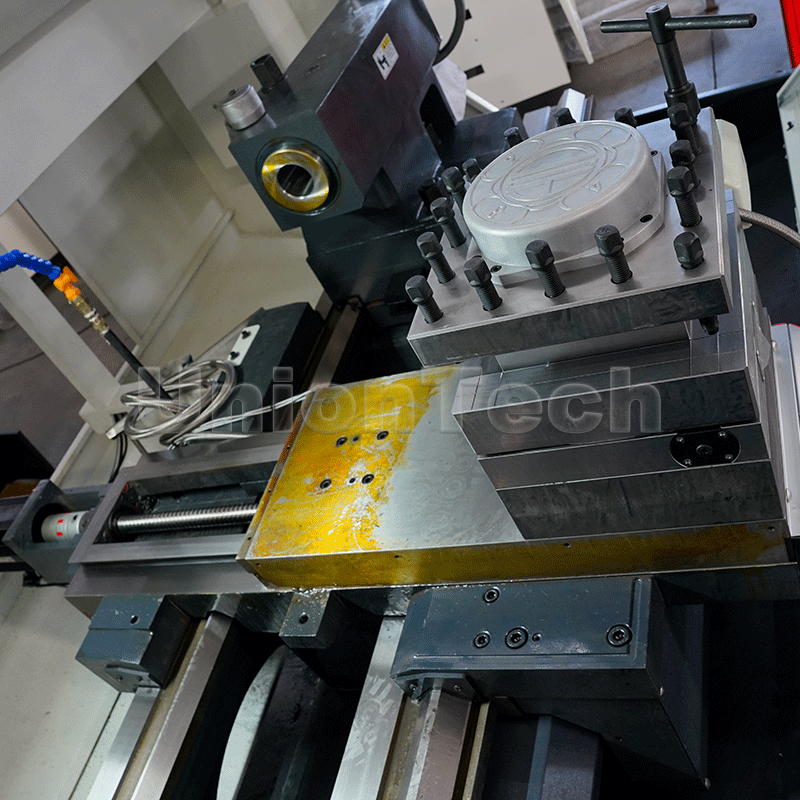

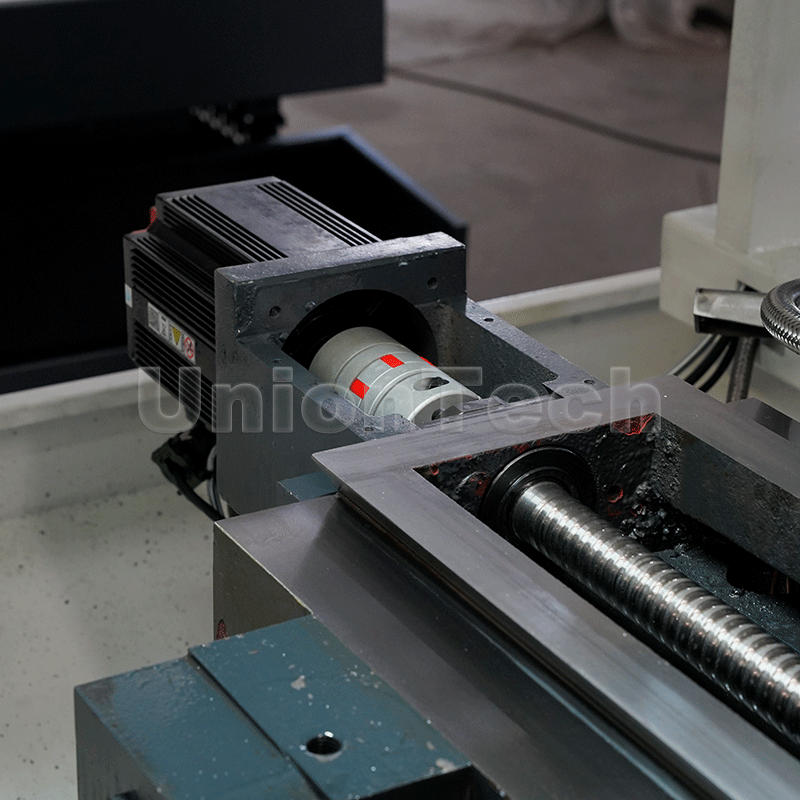

Ball screw specifications2006/40082506/40082506/40082506/4008
Fast moving speed (x/z)X:6 Z:8X:6 Z:8X:6 Z:8X:6 Z:8
Repeated positioning accuracy(X/Z)±0.005±0.005±0.005±0.025
Workpiece machining accuracyIT6-IT7IT6-IT7IT6-IT7IT6-IT7
Workpiece surface roughnessRal.6Ral.6Ral.6Ral.6
Tailstock sleeve diameter607575100

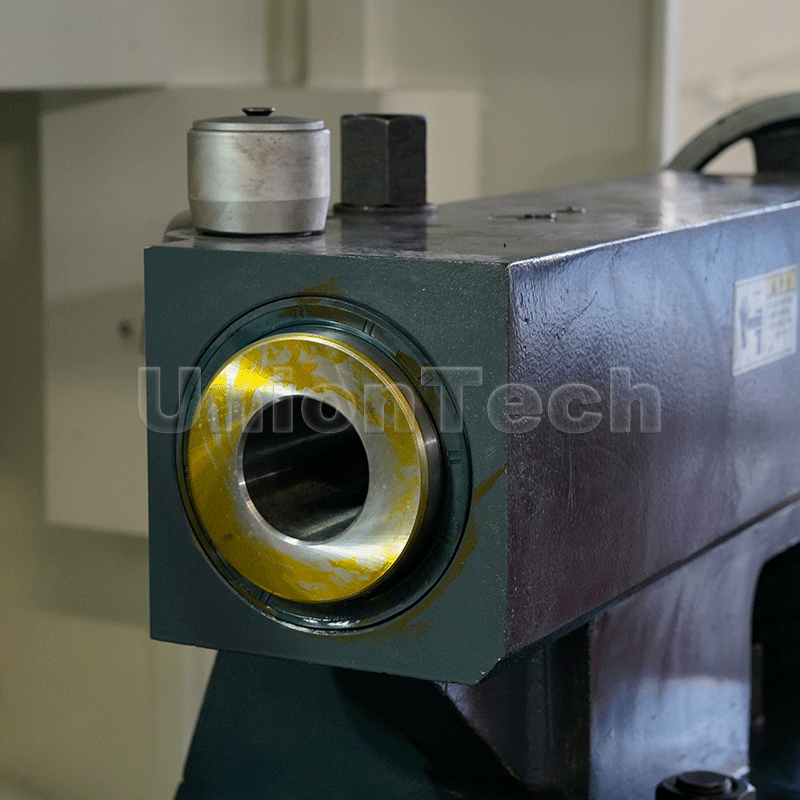

Tailstock sleeve stroke130140140250
Tailstock sleeve taperMT4MT5MT5MT6
Rail formSingle+Flat RailsSingle+Flat RailsSingle+Flat RailsSingle+Flat Rails
Diameter2500*1500*16502500*1500*16902600*1600*18205500*1900*1900
Machine weight1800200023006500
