HOME > PRODUCTS > CNC Lathes > Horizontal Lathes > CK6180X4000

Horizontal Lathes

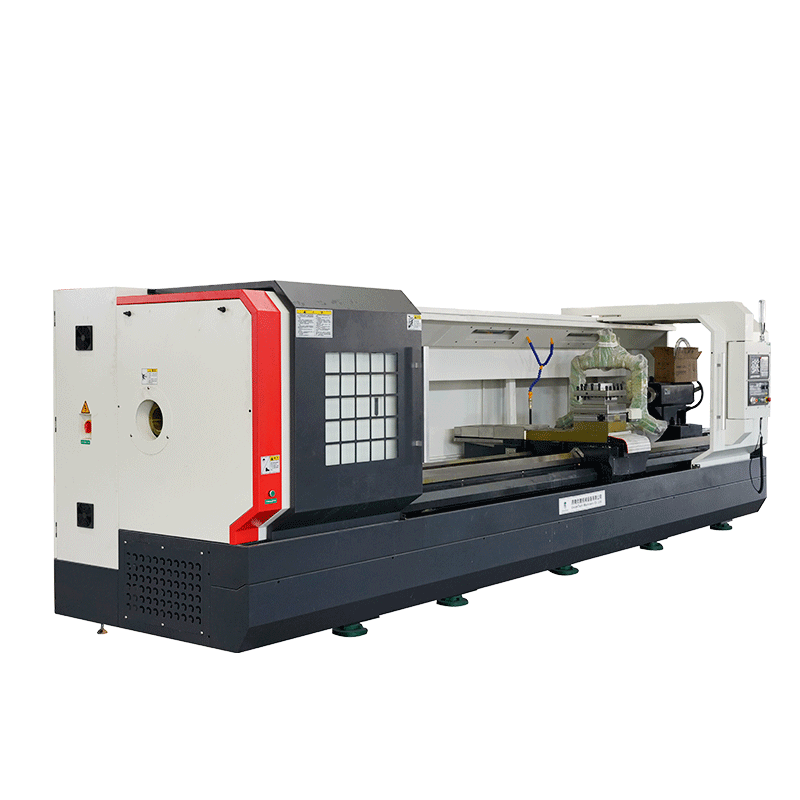

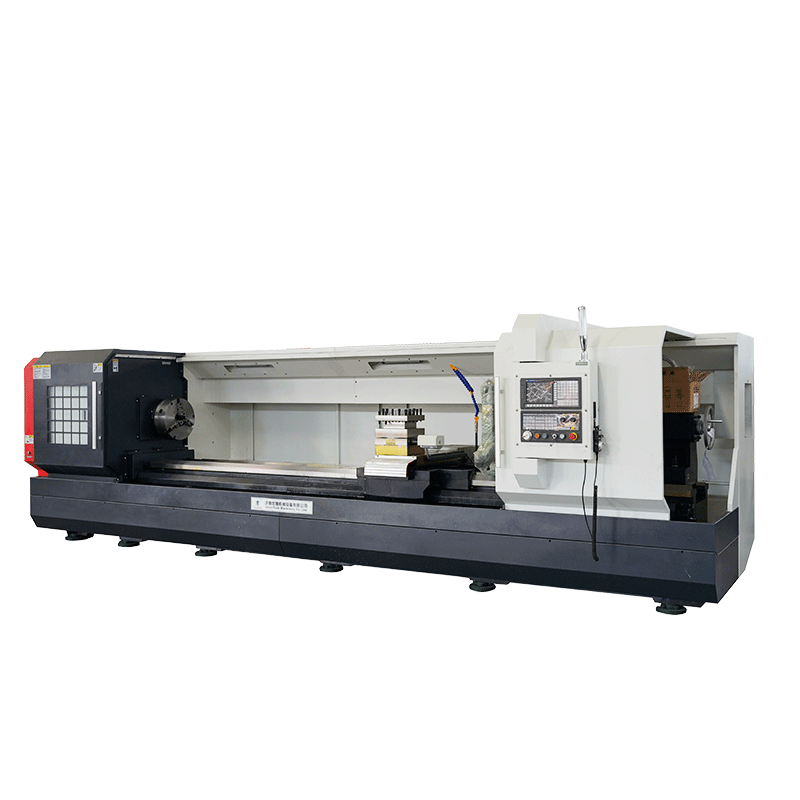

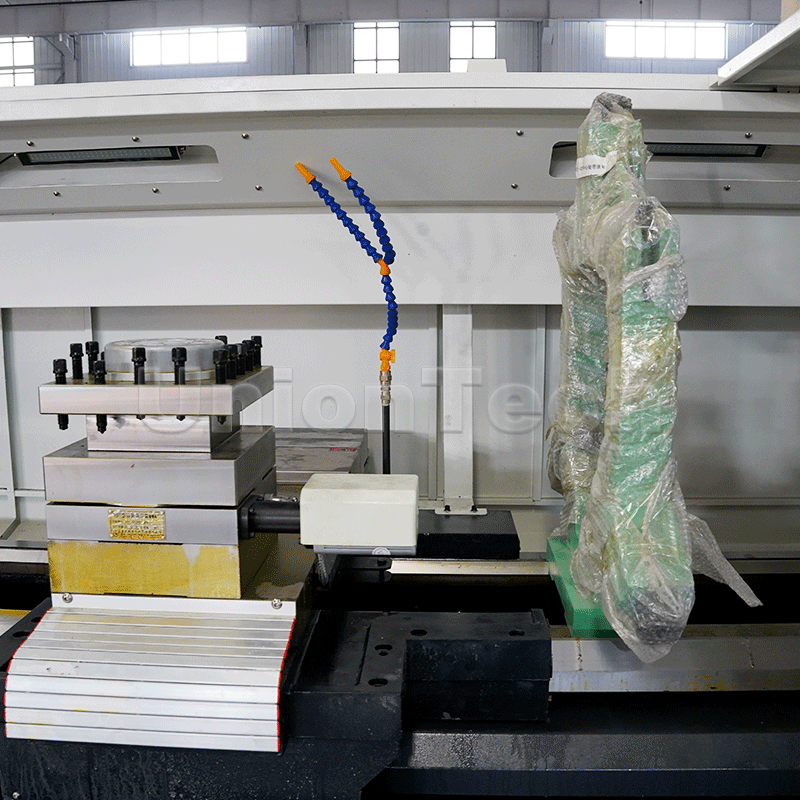

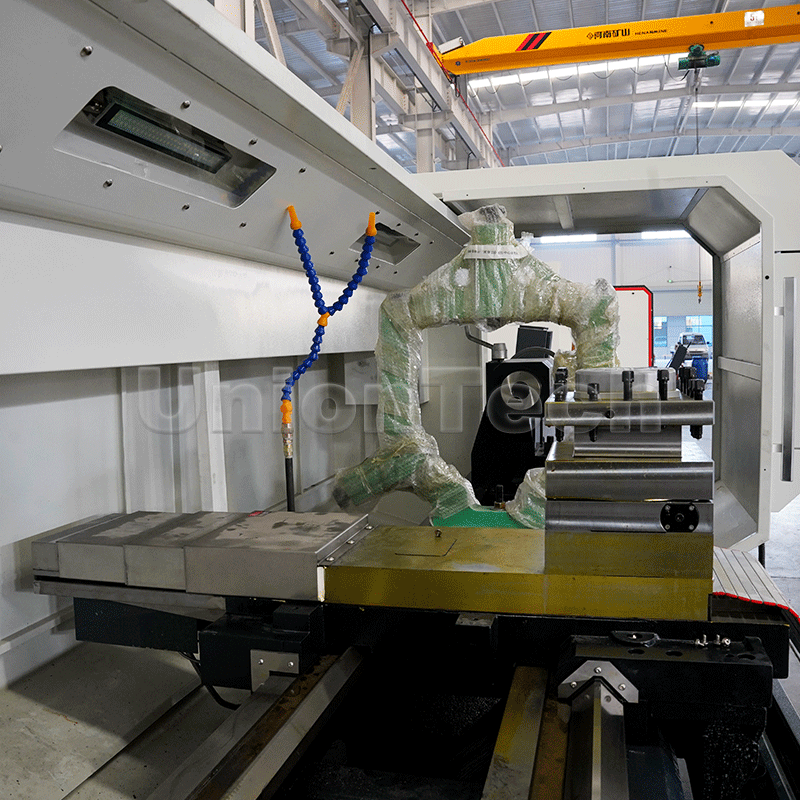

CK6180X4000

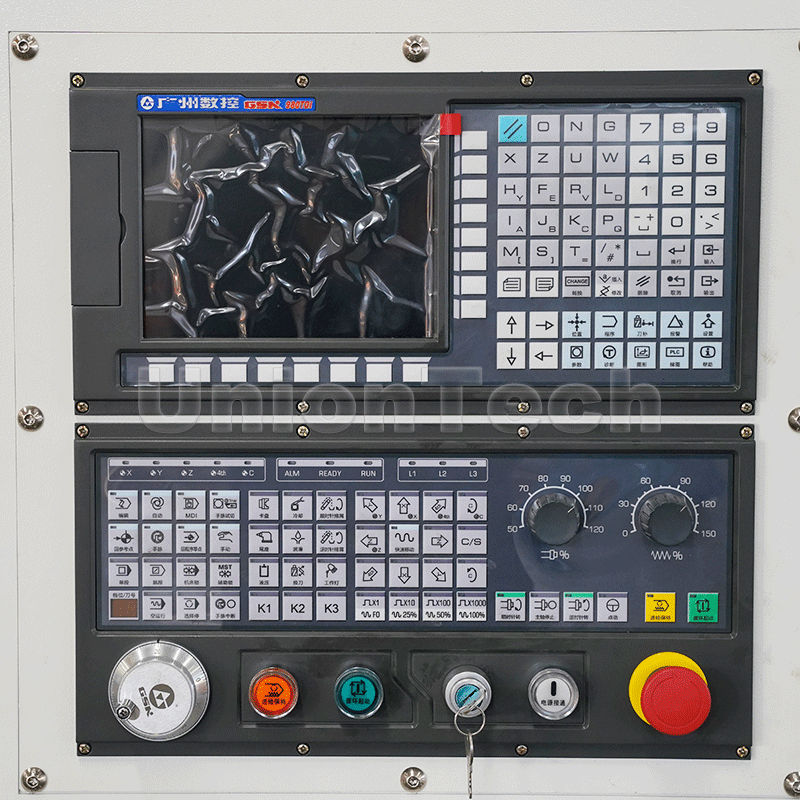

GSK controller( FANUC/SIEMENS/SYNTEC/MITSUBISHI as optional)

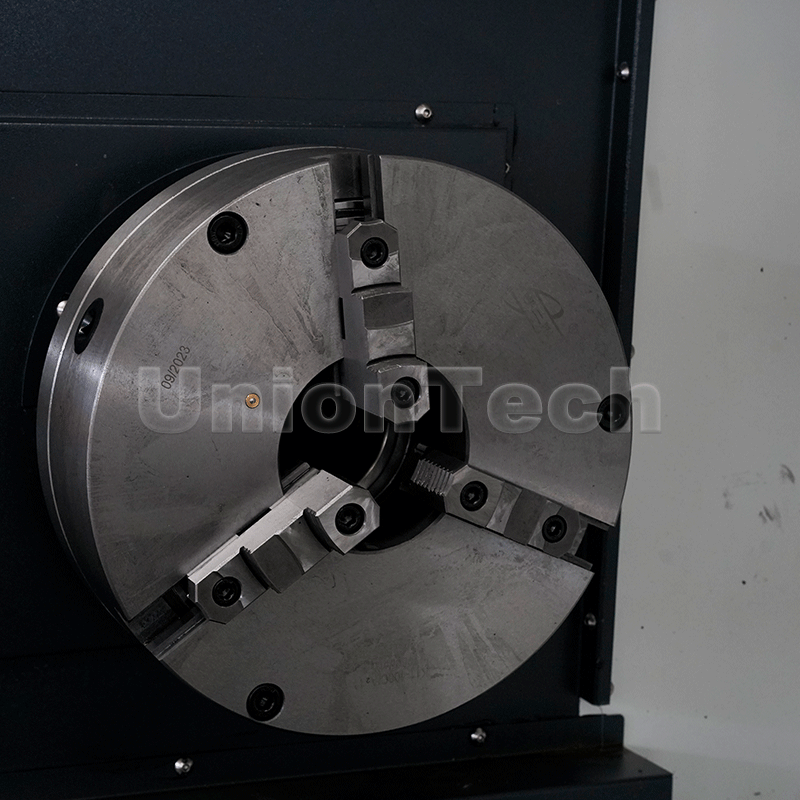

3-jaw chuck
Max processing length: 4000mm

Inquiry Now

Video

Parameter

Specifications	CK6140	CK6150	CK6160	CK6180
Max. turning diameter on the bed	φ400	φ500	φ600	φ800
The Max. turning diameter of the puller	φ200	φ290	φ320	φ450
Max. processing length	750/1000/1500	750/1000/1500/2000	750/1000/1500/2000	1000/1500/2000/3000/4000
Spindle end form	A2-6	A2-8	A2-8	A2-8
Spindle through hole diameter	52	82/105/130	82/105/130	82/105/130
Spindle hole front taper	MT5	MT6	MT6	MT6
Spindle motor power	5.5	7.5	7.5/11	11
Ball screw specifications	2006/4008	2506/4008	2506/4008	2506/4008
Fast moving speed (x/z)	X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8
Repeated positioning accuracy(X/Z)	±0.005	±0.005	±0.005	±0.025
Workpiece machining accuracy	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Workpiece surface roughness	Ral.6	Ral.6	Ral.6	Ral.6

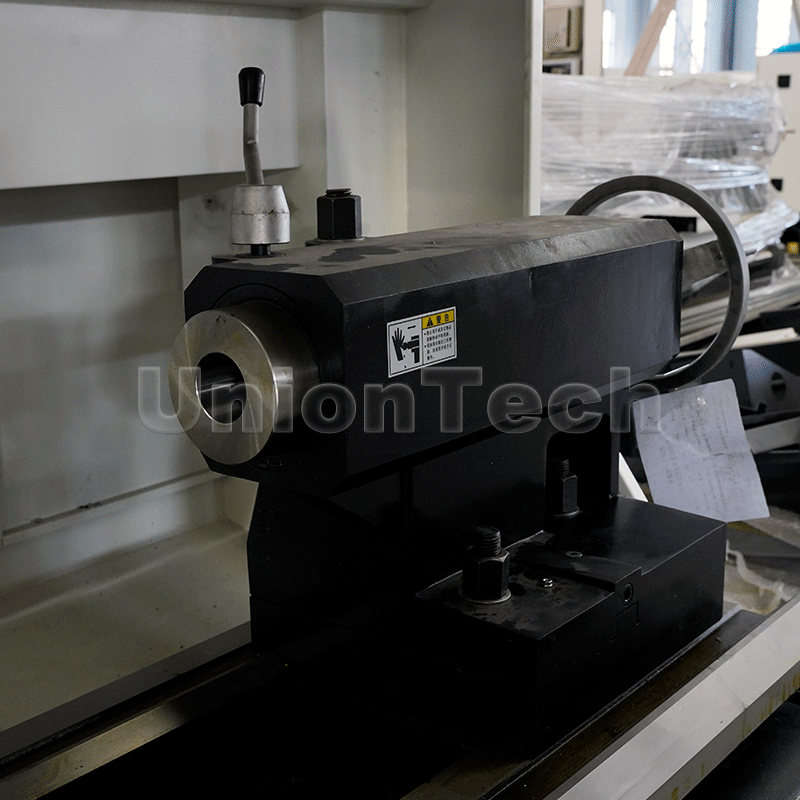

Tailstock sleeve diameter	60	75	75	100
Tailstock sleeve stroke	130	140	140	250
Tailstock sleeve taper	MT4	MT5	MT5	MT6
Rail form	Single+Flat Rails	Single+Flat Rails	Single+Flat Rails	Single+Flat Rails
Diameter	250015001650	250015001690	260016001820	550019001900
Machine weight	1800	2000	2300	6500
