Horizontal Lathes
TCK40 with Loading and unloading device

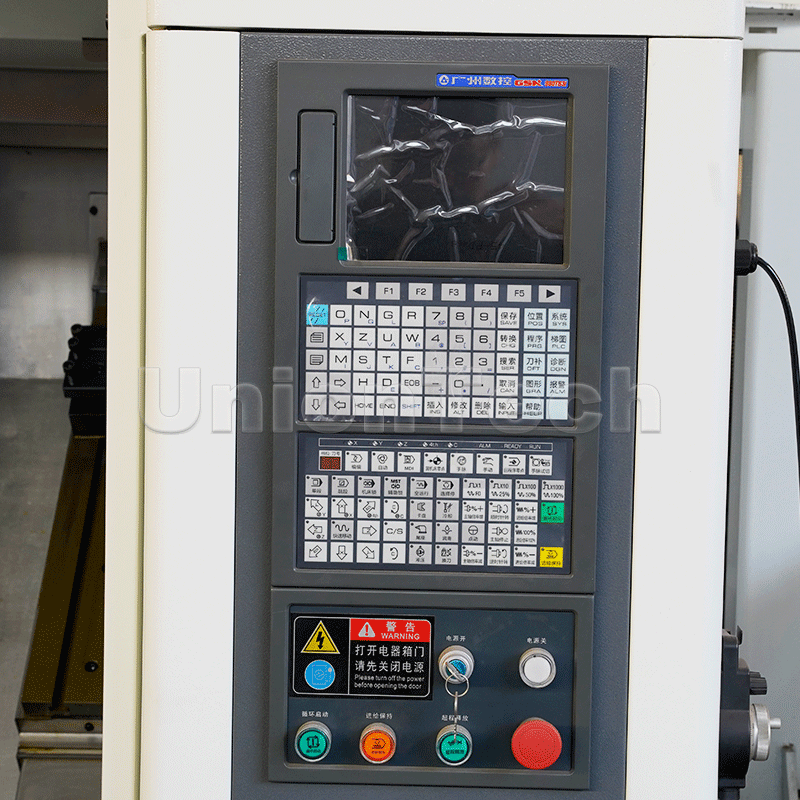

GSK controller(FANUC/SYNTEC/SIEMENS/MITSUBISHI as optional)
45° Slant CNC Lathe

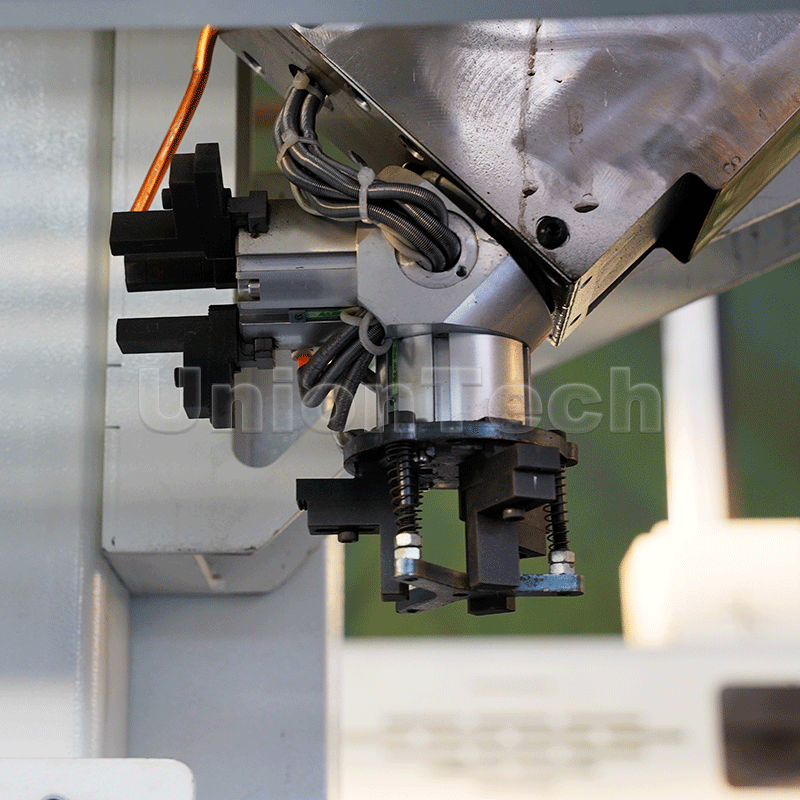

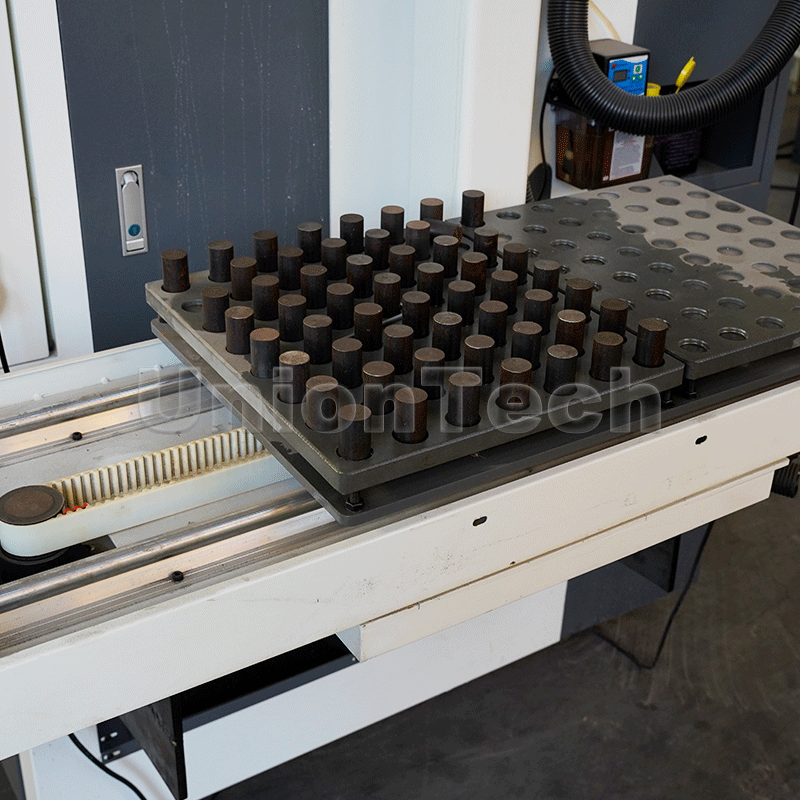

Loading and unloading device
Inquiry Now

方格.png Video

方格.pngParameter

Main technical dataUnitTCK 40
Max. swing diametermmφ400
Max. turning lengthmm400
Work piece claping methodN/ASpring loaded collet
Spinde speed rangerpm100-3000
Spindle nose sizeN/AA2-5
X- axis rapid traversem/min24m(3210)
Z- axis rapid traversem/min24m(3210)
X- axis travelmm400
Z- axis travelmm420
X/Z axis repeating positonal accuracymm0.003
Tool hoder typeN/ALinear ATC
Overall rize mm2100*1450*1850
Machine weightkgApprox.1500
