Horizontal Lathes

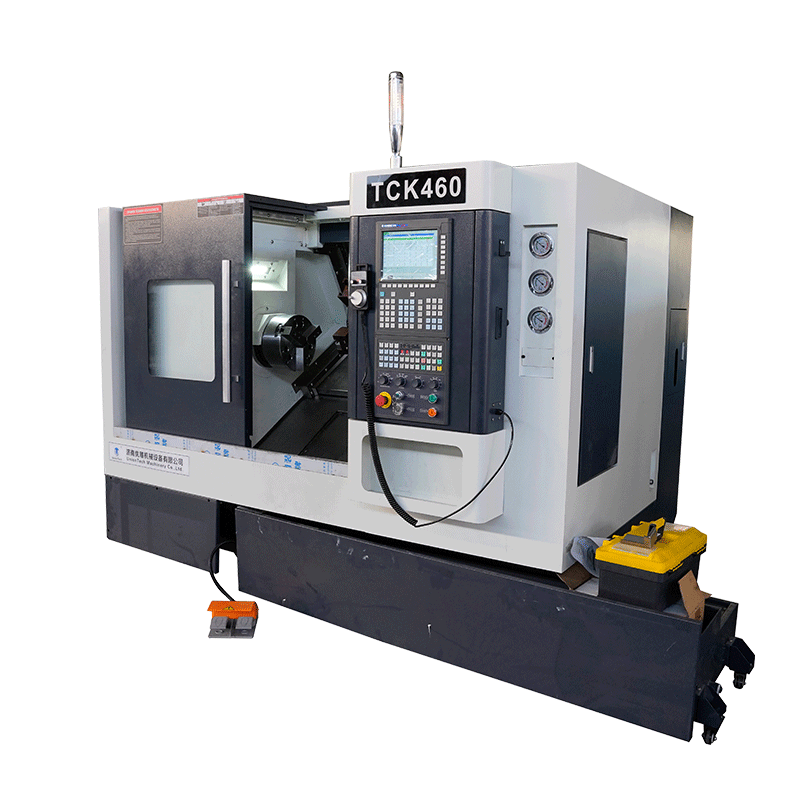

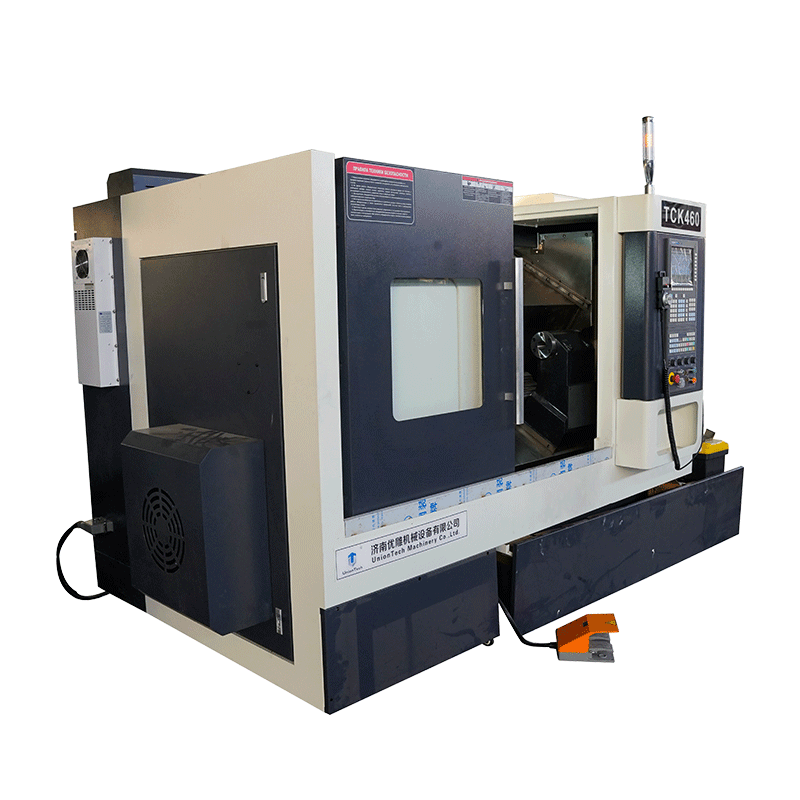

TCK460
GSK controller(FANUC/MITSUBISHI/SIEMENS/SYNTEC as optional)
250mm hydraulic chuck
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video

方格.png Parameter

SPECIFICATIONSUnitsTCK460TCK560
Swing over bedmm460560
Swing over cross slidemm260310
Distance between centersmm500/1000/1500750/1000/1500
Guideway width°4545
Spindle boremm5662
Spindle speed steps-SteplessStepless
Spindle speed rangerpm35-450035-4500
Spindle type
A2-5A2-6
Chuckin8in Hydraulic chuck10in Hydraulic chuck

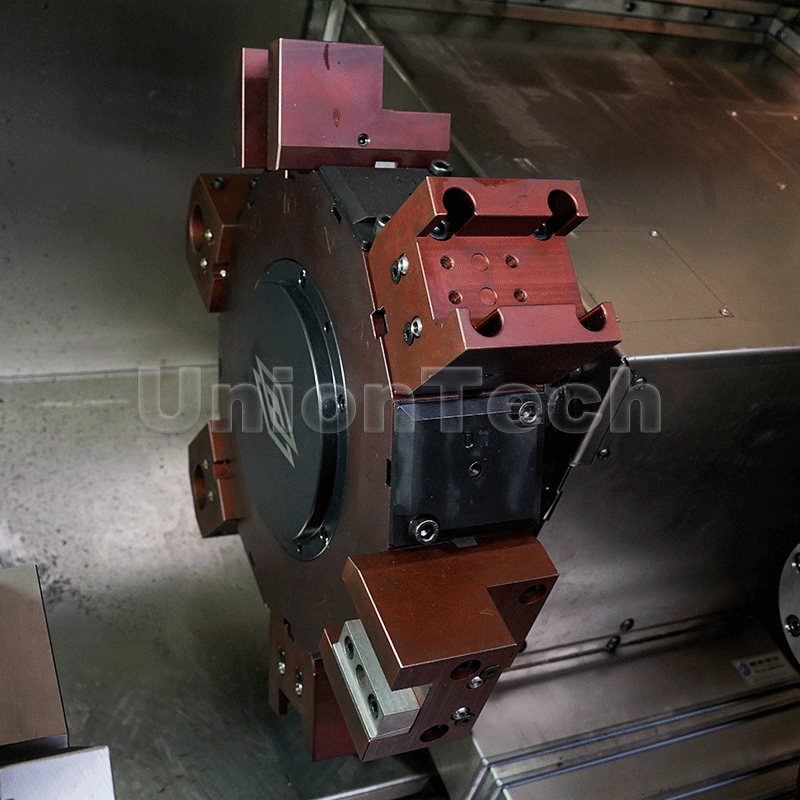

Turret/tool post-Hydraulic turret 8positionHydraulic turret 8position
Tool shank sizemm25 x 2525x25
Boring tool holder sizemmφ40φ50
X axis travelmm200260
Z axis travelmm500/1000/1500750/1000/1500
X axis rapid traversemm/min1000010000
Z axis rapid traversemm/min1500015000
Tailstock quill diametermmφ75φ130
positioning accuracymm0.0050.005
Repeatability
0.0080.01
Tailstock quill taper-MT4MT4
Tailstock quill travelmm150150
Main spindle motorkw7.511
Coolant pump motorkw0.370.37
Weight for 500kg25003900
Weight for 1000kg33004500
Weight for 1500kg45005000
Dimension for 500mm2800*1800*16003100*2000*2000
Dimension for 1000mm3300*1800*16003500x2050x2300
Dimension for 1500mm3900*1800*16004300x2050x2300
