Horizontal Lathes

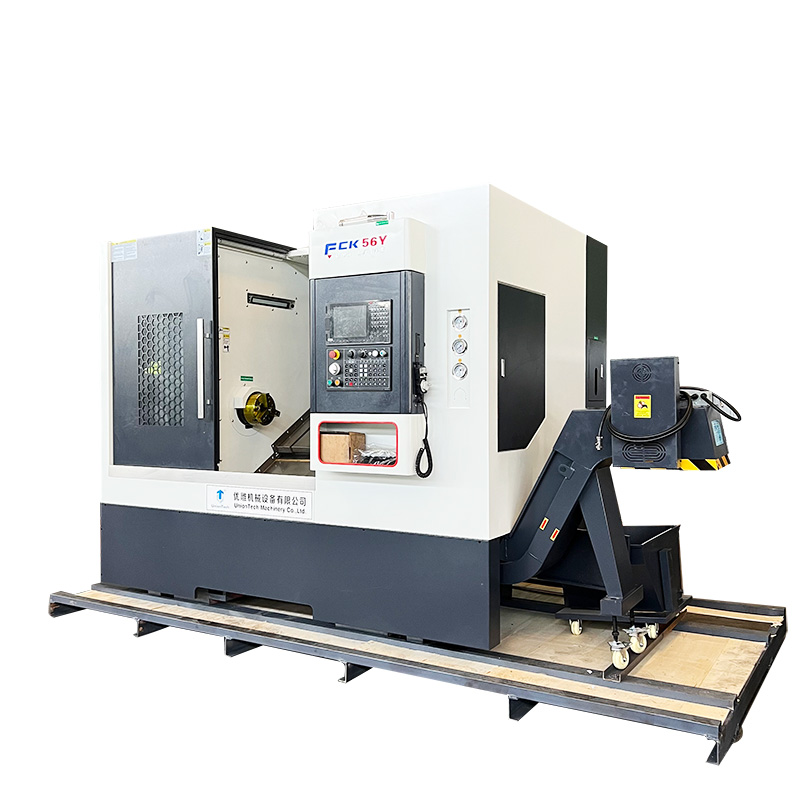

FCK56Y
KND controller( GSK/FANUC/SYNTEC/SIEMENS/MITSUBISHI as optional)
12-station

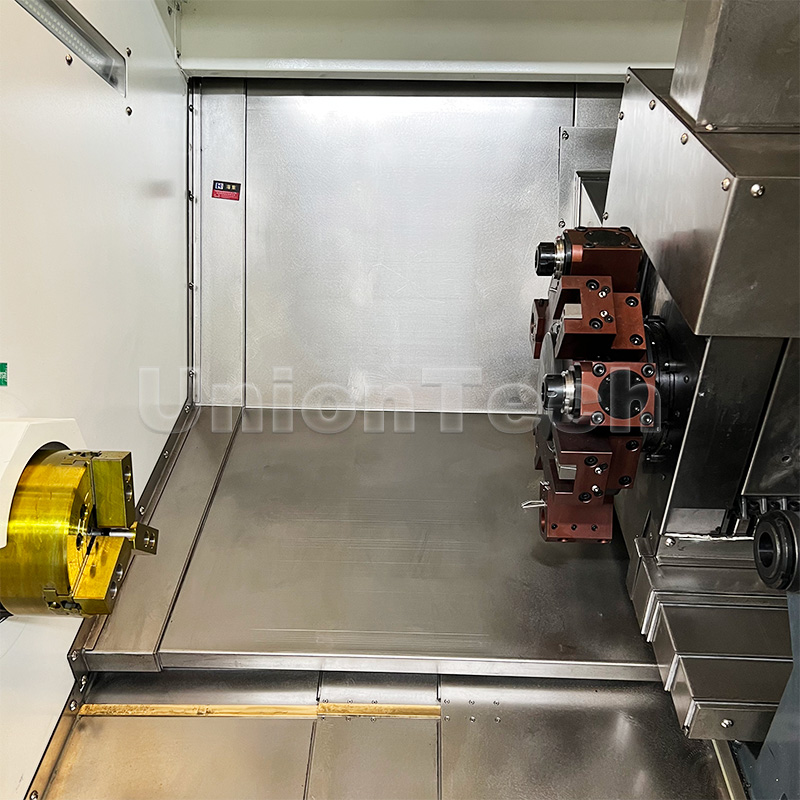

Power turret
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.pngVideo


方格.pngParameter

Main technical dataUnitTCK56FCK56Y
Max.turning diameter on bedmm560560
Max.cutting lengthmm400/900400/900
Max. cutting diametermm280280
Standard cutting diametermm280280
Spindle bore diametermm6565
Main motor output powerkw11/1511/15
Standard chuck diametermm8''8''
X/Z axis speedmm/min30/3030/30
X/Z axis strokemm200/500-1050200/500-1050
Tail travelmm450/900450/900
Taper of tailstock spindle bore-MT5MT5
Standard tool holder form-12-station12-station
Max. drilling capability of power toolsmm-12x0.2
Weight of machine toolkg4050/45004050/4500
Max. load-bearing disc classkg200200
Max. bearing-shaft classkg200200
Machine tool diametersmm3100/3570*1860*18503100/3570*1860*1850
