Horizontal Lathes

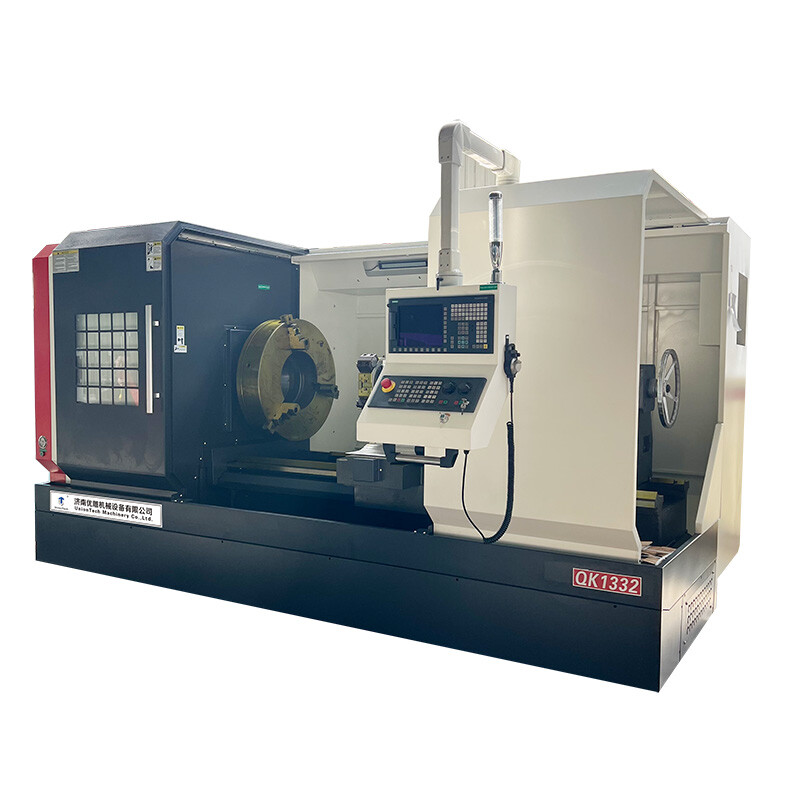

QK1332
KND control system ( SIEMENS/SYNTEC/FANUC/GSK as optional)
Spindle Hole Diameter: 320mm
3-jaw chuck
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Parameter

ModelQK1313QK1322QK1327QK1332
Max. Length of Workpiece (mm)1000/1500/3000
Max. Spindle Speed (r.p.m)550r.p.m
Machining CapacityHeavy Duty
Spindle Bore(mm)130220270320
Width of bed (mm)550
Spindle Motor Power(kW)7.5151522
No. of SpindlesSingle
Number of Axes2
Positioning Accuracy (mm)0.03
Repeatability (X/Y/Z) (mm)0.02
Dimension(L*W*H)2650*1450 *17105300*1880*18504800/6300*2100*1804800/6300*2100*1800
Weight (T)4.56.26.86.9
