Horizontal Lathes
TCK56

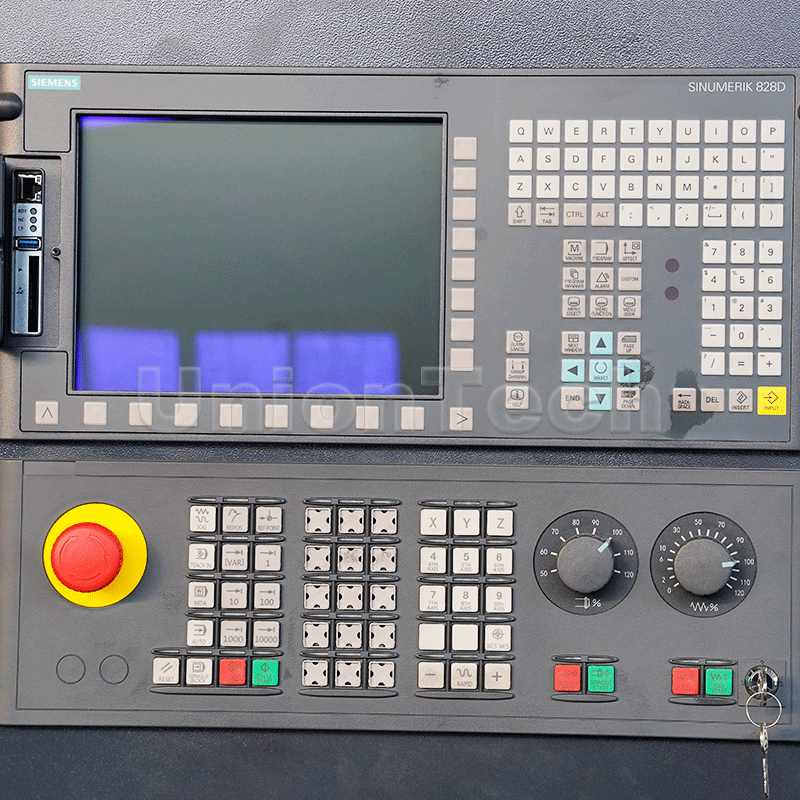

SIEMENS controller (FANUC/SYNTEC/MITSUBISHI/GSK as optional)

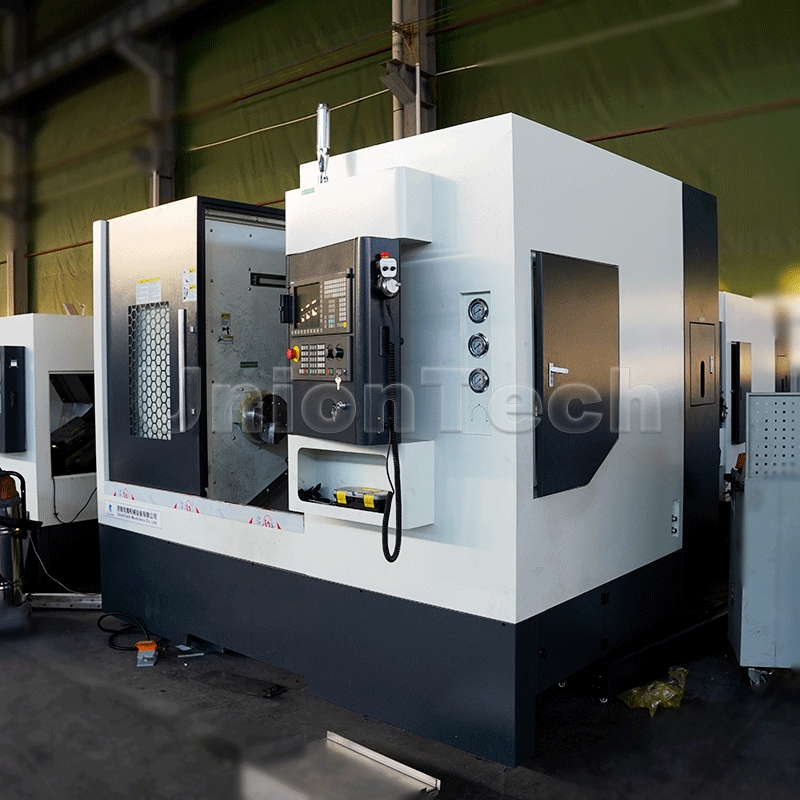

45° Slant cnc lathe

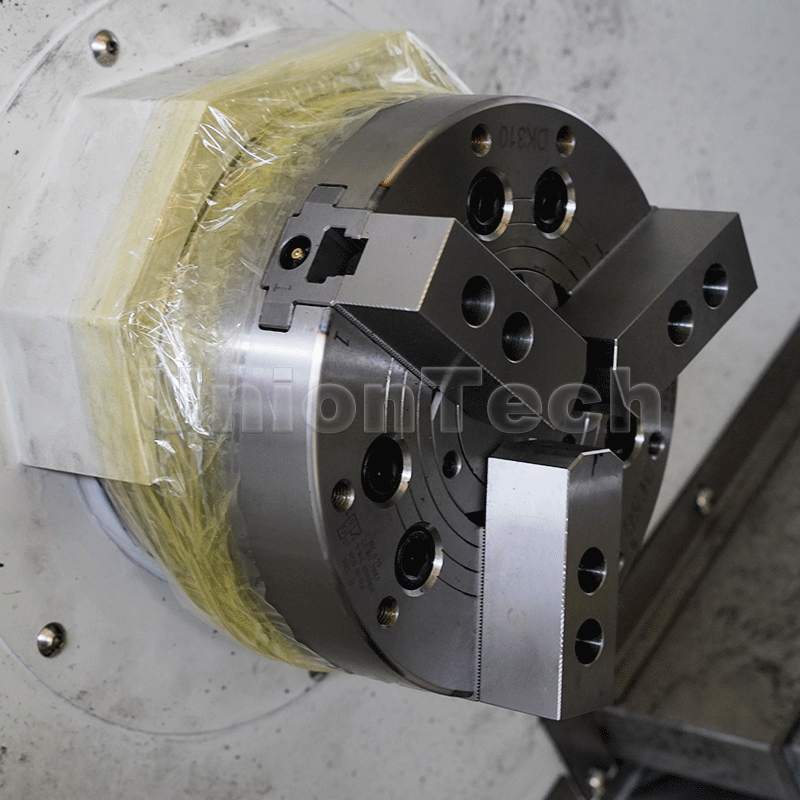

3-jaw chucks
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video


方格.pngParameter

SpecificationUnitTCK56A
Max.swing over bedmm560
Max.swing over cross slidemm350
Max.workpiece lengthmm500
Standard machining diametermm280
Max Machining diametermm350
The spindle nose(optional chuck)
A2-6
The spindle motor powerkw11
Max. spindle speedsrpm50~3500
Spindle speed step
Variable
Spindle boremmΦ65
Bar diametermmΦ50
The x axis limit strokemm200
The z axis limit strokemm560
X/Z axis rapid speedm/min30
X/z axis position accuracymmX:0.01 Z:0.01
X/z axis repeat position accuracymmX:0.004 Z:0.005

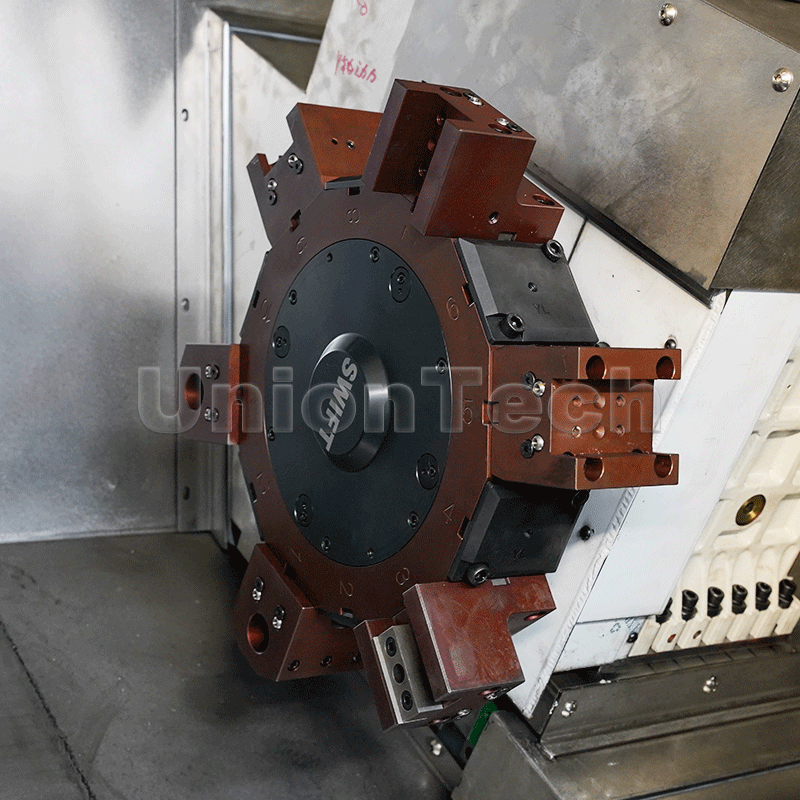

Tool turret (optional)
125-8Turret
Ball screw dia.and pitchmm25x25

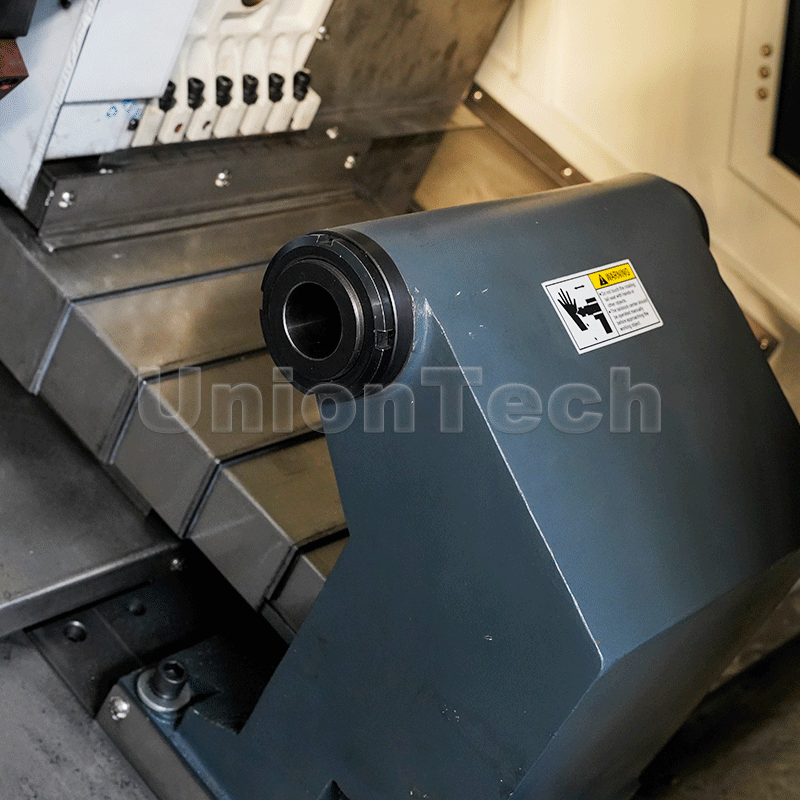

Hydraulic quill taper
MT5
Hydraulic tailstock travelmm450
Machine dimensions(L*W*H)mm2790*1900*1850
N.W.kg4000
