Vertiacal Turning Lathes

CK525

280*500mm working size
KND control system
Eight-station+Linear Magazine
Accuracy:±0.006
18.5 Spindle motor power

Inquiry Now

Video

Parameter

Specifications	Unit	VT80	CK525	KD500
X-axis travel	mm	670	280	300
Y-axis travel	mm	200-1050	500	500
Max.turning diameter	mm	Φ1000	Φ750	Φ650
Maximum cutting diameter	mm	Φ800	Φ550	Φ500
Maximum cutting height	mm	850	500	500
Spindle speed	mm/min	100-800	100-1000	100-1000
Main motor power	Kw	22	18.5	30

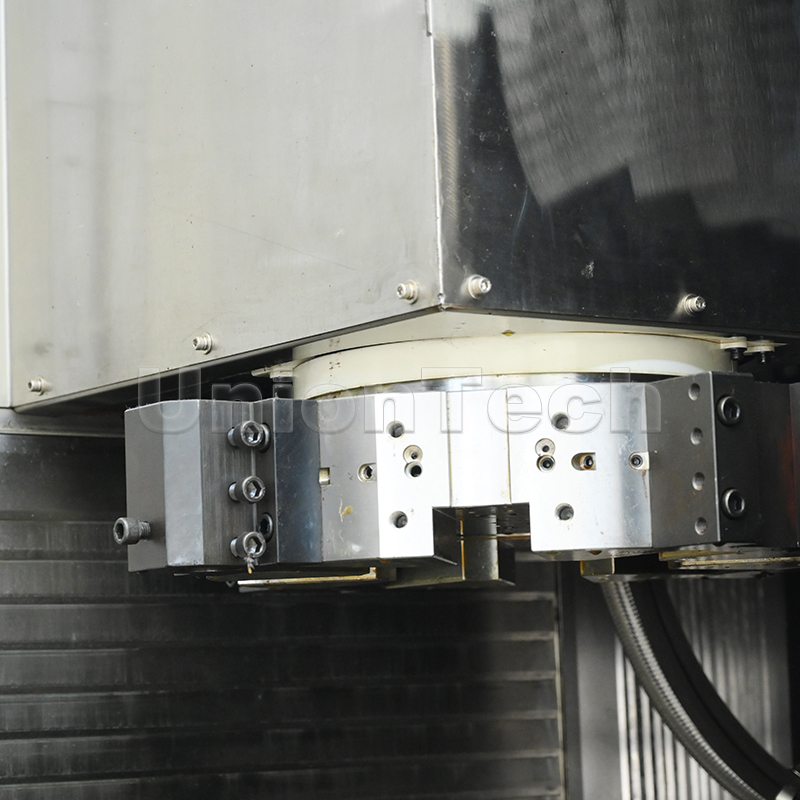

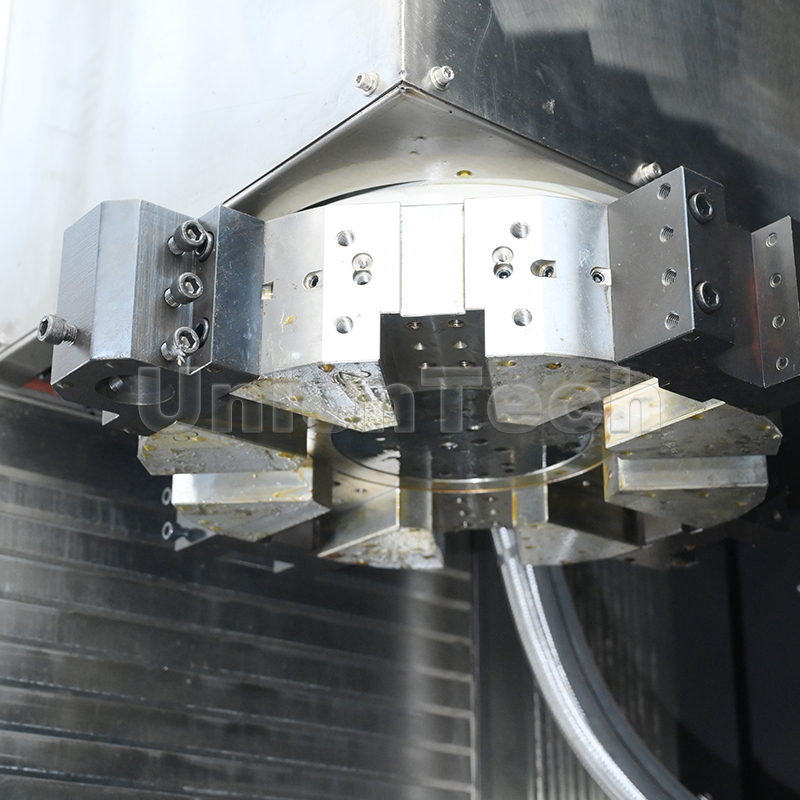

Turret station		Four-stationEight-station	Eight-station+Linear Magazine	Eight-station+Eight-station
Ball screw		45mm/55mm	45mm	55mm
Controller		GSK	KND	KND
Position accuracy	mm	±0.08	±0.06	±0.06
Repeat position accuracy	mm	±0.05	±0.03	±0.03
Machine diamensions	mm	240021003600	290024002800mm	280024002910
Machine weight	Kgs	9000	7000	10000
