HOME > PRODUCTS > CNC Lathes > Vertiacal Turning Lathes > VTC50

Vertiacal Turning Lathes

VTC50

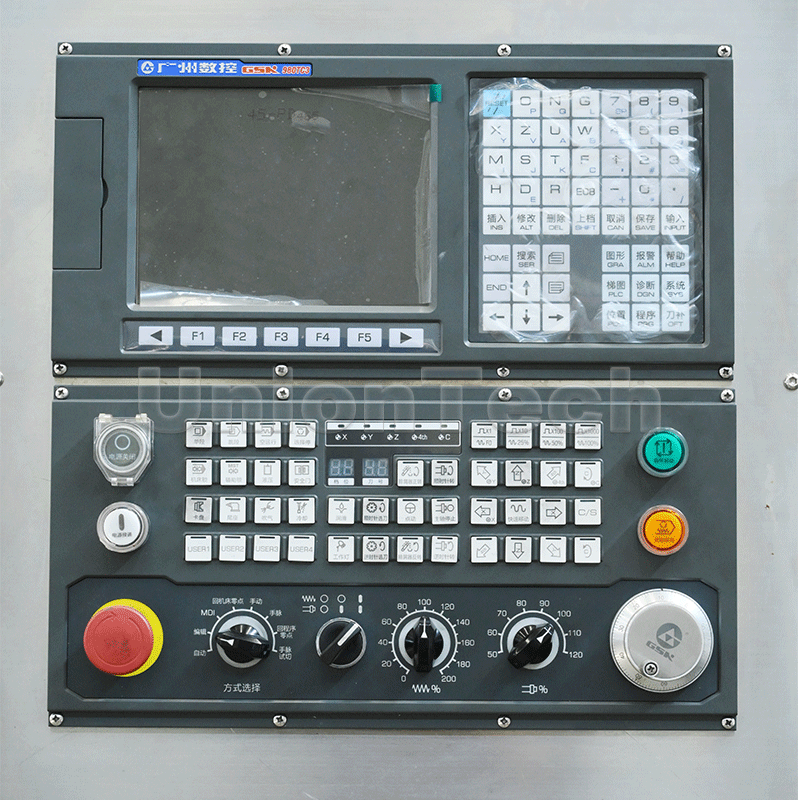

GSK control system
#45mm linear guide
Accuracy: ±0.001

WhatsApp/Wechat：+8615562667312

E-mail: bill@union-cnc.com

Tel: +8615562667312

Inquiry Now

Video

Parameter

Specifications	Unit	VTC50	VT80	CK525	KD500
X-axis travel	mm	500	670	280	300
Y-axis travel	mm	0-500	200-1050	500	500
Max.turning diameter	mm	Φ650	Φ1000	Φ750	Φ650
Maximum cutting diameter	mm	Φ500	Φ800	Φ550	Φ500
Maximum cutting height	mm	500	850	500	500
Spindle speed	mm/min	100-1000	100-800	100-1000	100-1000
Main motor power	Kw	15	22	18.5	30

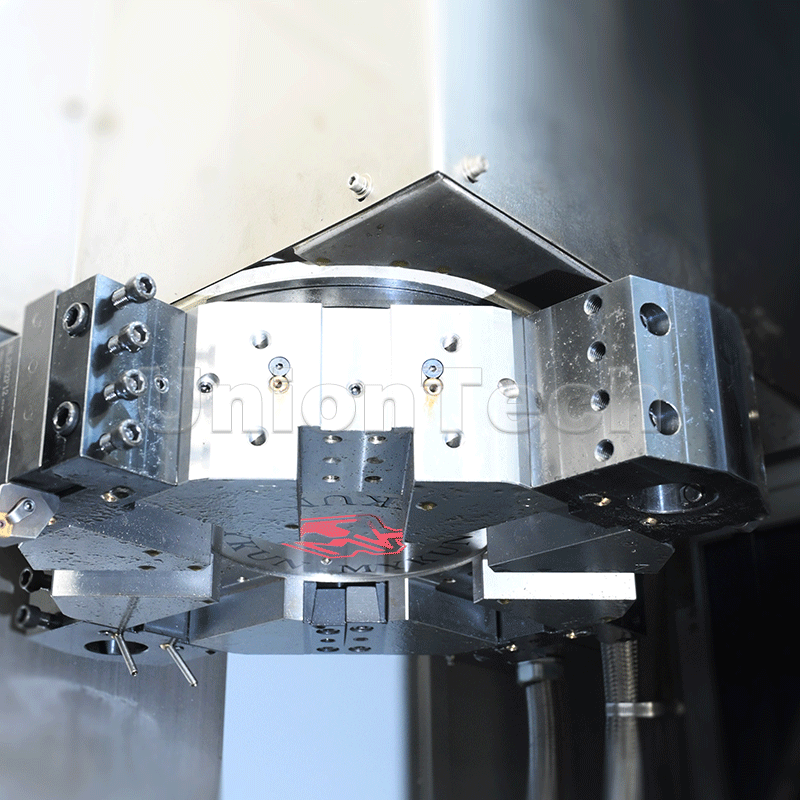

Turret station		Four-stationEight-station	Four-stationEight-station	Eight-station+Linear Magazine	Eight-station+Eight-station
Ball screw		45mm	45mm/55mm	45mm	55mm
Controller		GSK	GSK	KND	KND
Position accuracy	mm	±0.006	±0.008	±0.006	±0.006
Repeat position accuracy	mm	±0.003	±0.005	±0.003	±0.003
Machine diamensions	mm	210025002750mm	240021003600	290024002800mm	280024002910
Machine weight	Kgs	5500	9000	7000	10000
