GMC

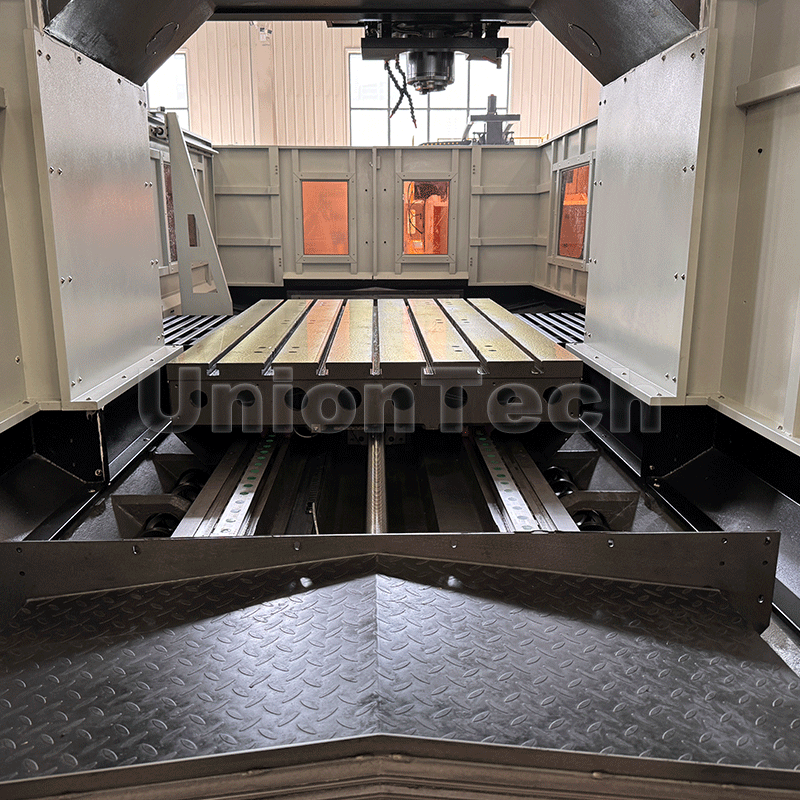

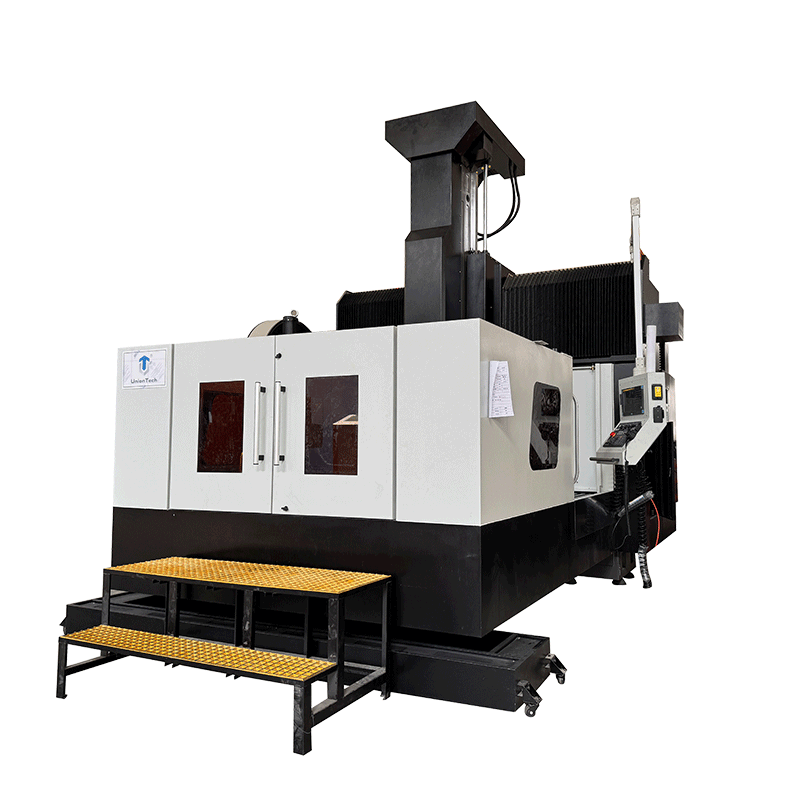

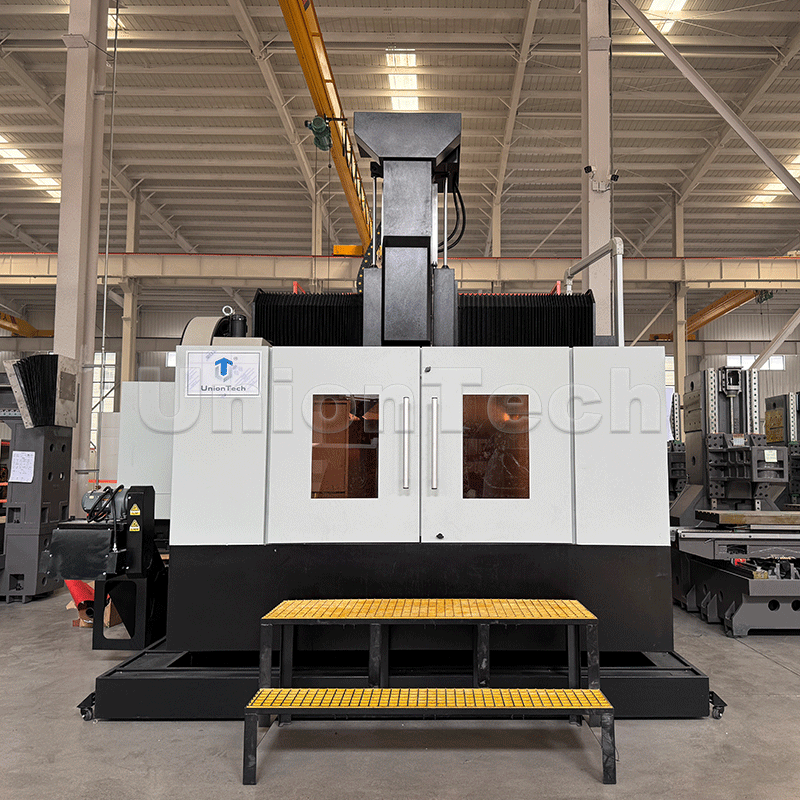

GMC2016 with FANUC controller

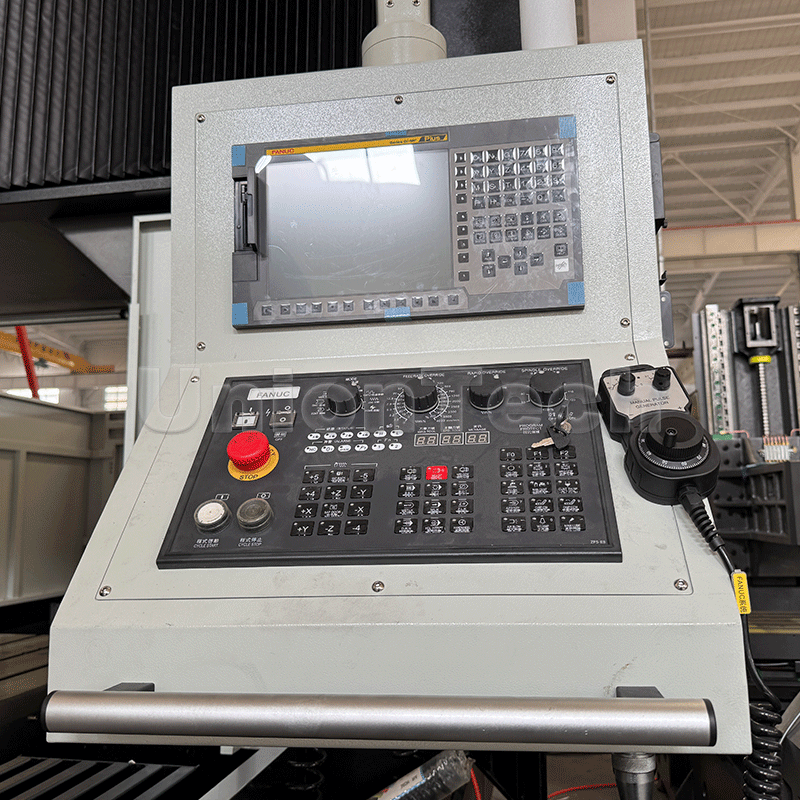

FANUC control system
15kw spindle power
2000x1300mm working area
Machine weight: 18T
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video

方格.png Parameter

ProjectUnitGMC2013/3013GMC2016/3016/4016GMC2021/3021/4021
X axis travelmm2000/30002000/3000/40002000/3000/4000
Y axis travelmm140016002100
Zaxis travelmm800
Gantry widthmm140016602150
Spindle end to table distancemm60-860200-1000200-1200
Workbence size (L*W)mm2000/3000*10002000/3000/4000*13002000/3000/4000*1800
Spindle revolutionrpm6000
Spindle type-BT50
Spindle motorrpm15kw / 18.5kw
XYZ axis guide rail form-#55
XYZ axis fast moving speedm/min12/12/10
Cutting feed ratemm/min600050006000
ATC form-Carousel / Chain
Tool magazine capacitymm24/40
XYZ positioning accuracymm0.02/0.02/0.015
XYZ Repeat positioning accuracymm0.15/0.015/0.01
Machine WeightT18/2120/24/2824/28/32
