GMC
GMC2017

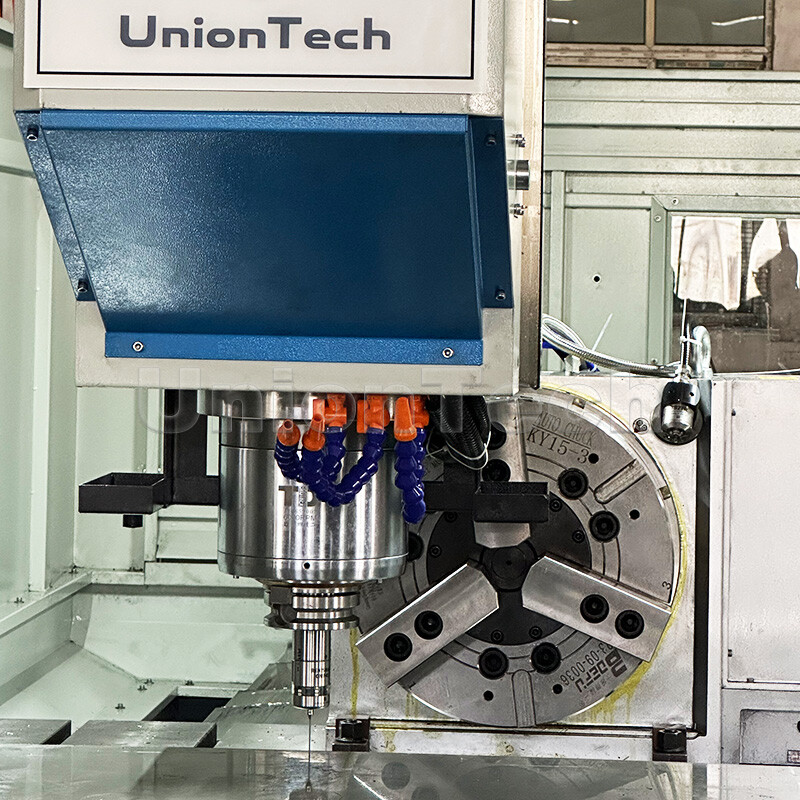

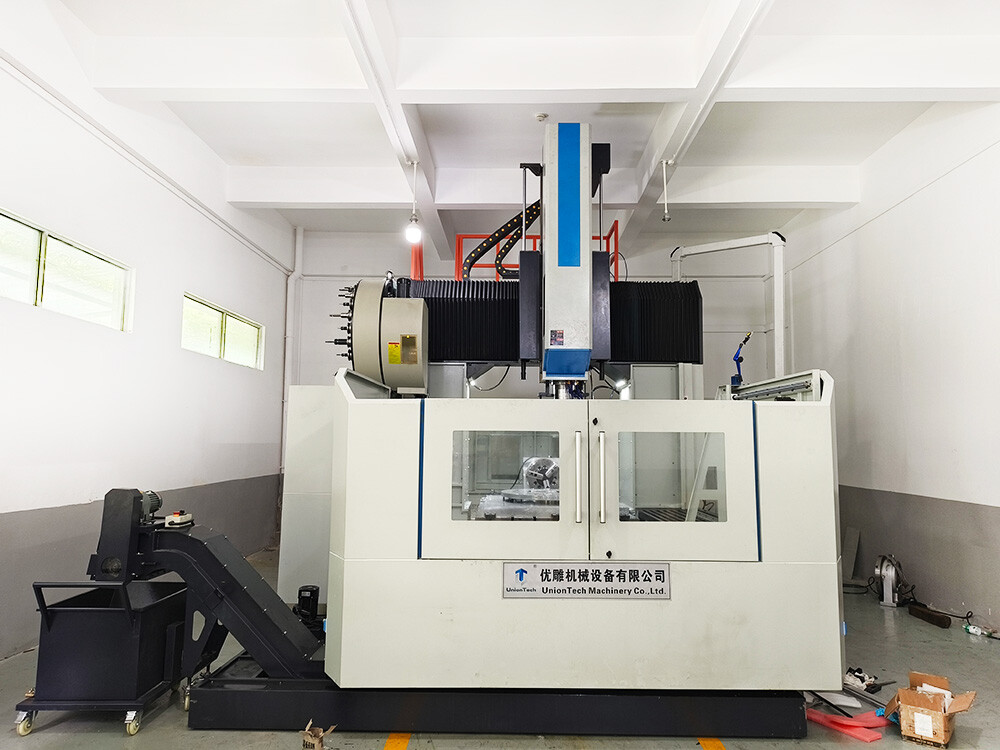

GMC2017 gantry cnc milling machine with KND controller
2100*1400 working area

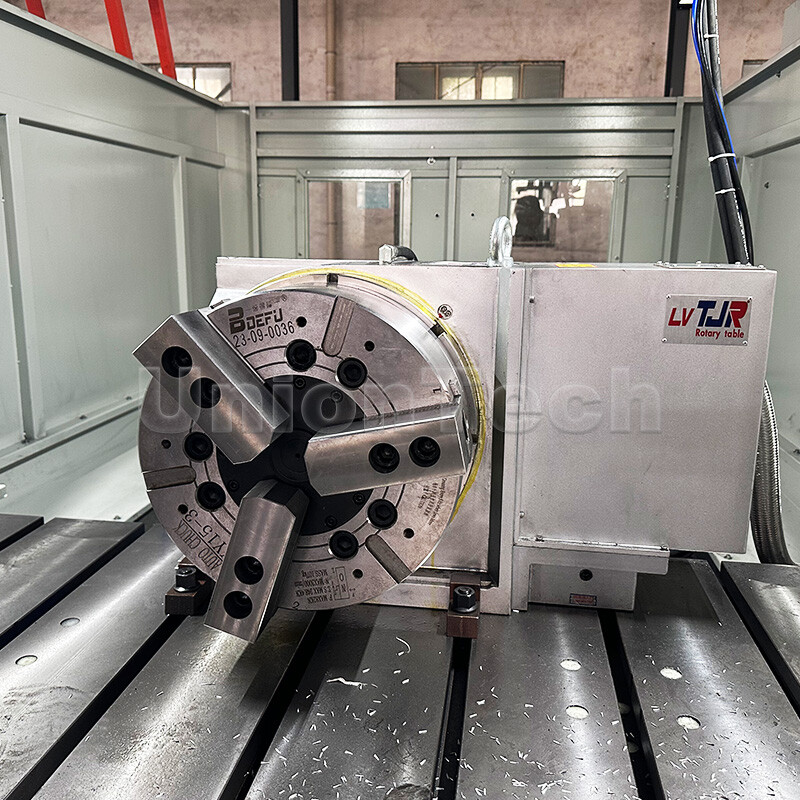

LV TJR 4 axis
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

方格.png Video


方格.pngParameter

ItemParameter

GMC2017

cnc gantry milling machine

   TravelX axis2100mm
Y axis1800mm
Z axis800mm
Spindle end to worktable600-1400mm
Distance between two columns1700mm
   FeedingX-axis rapid feed speed15m/min
Y-axis rapid feed speed15m/min
Z-axis rapid feed speed10m/min
Cutting feed1-1000m/min
Three-axis servo motor torque30/30/30
   WorktableWorkbench area2100x1400mm
Maximum load5000kg
Height of work surface from ground800mm
T-Slot7-22-18mm
 SpindleSpeed6000rpm
Spindle taper holeBT50
Main motor power15/18.5KW
AccuracyPositioning accuracy±0.005/800mm
Repeat positioning accuracy±0.003/800mm
OtherDimensions6000x2800x3700mm
Machine weight17T
