HMC
HMC500
Workbench: 500*500mm
SYNTEC control system

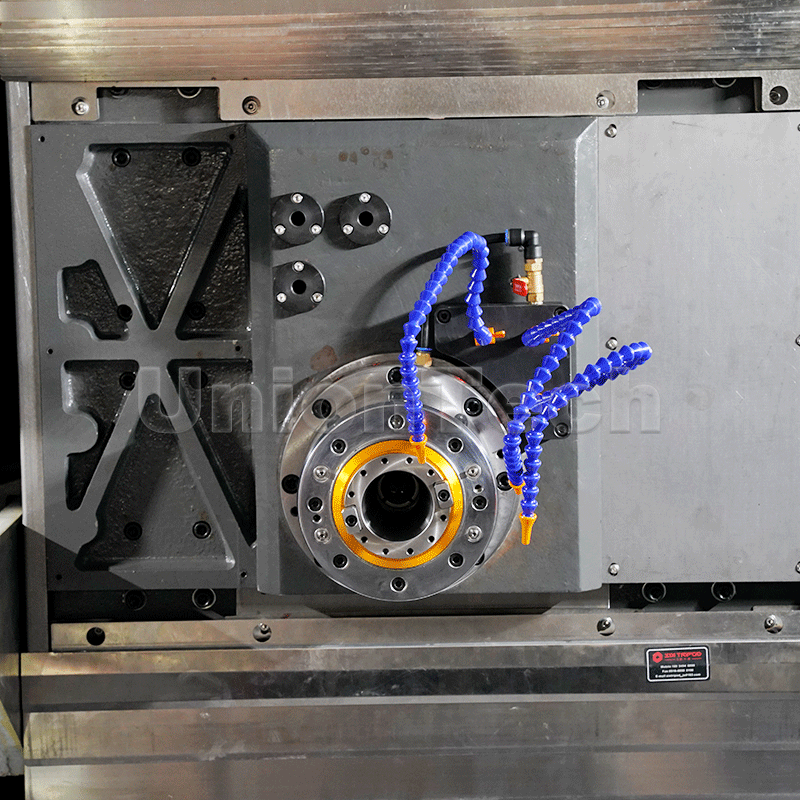

11kw Spindle motor power
Machine size:3650*2800*2340mm
Inquiry Now

方格.png Video



方格.png Parameter

ProjectUnitHMC500

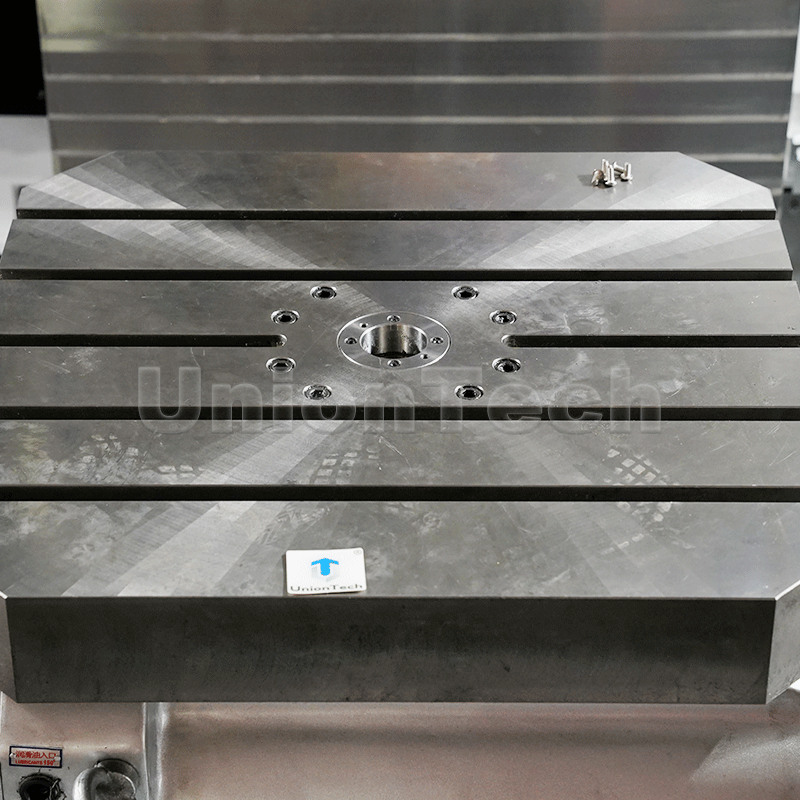

Workbenchmm500*500
Working table indexing-1°x360
T-slot(number of slots * slot width * spacingmm5*18*100
Work table left and right stoke(X axis)mm700
Work table front and rear stoke(Z axis)mm810
Headstock up and down stoke(Y axis)mm700
Spindle center line to table center distance(vertical)mm0~810
Spindle end to work surface distance (vertical)mm-10~690
Spindle center line to work surface distance(horizontal)mm50~750
Spindle end to table center distance(horizontal)mm-130~680
Spindle taper dimension number-BT40
Spindle speedr/min20~3000
Main motor powerkw7.5/11/15
Fast moving speed (X.Y.Z)mm/min2400
Feed rate(X.Y.Z)mm/min1~10000
Machining center main setting unitmm0.001

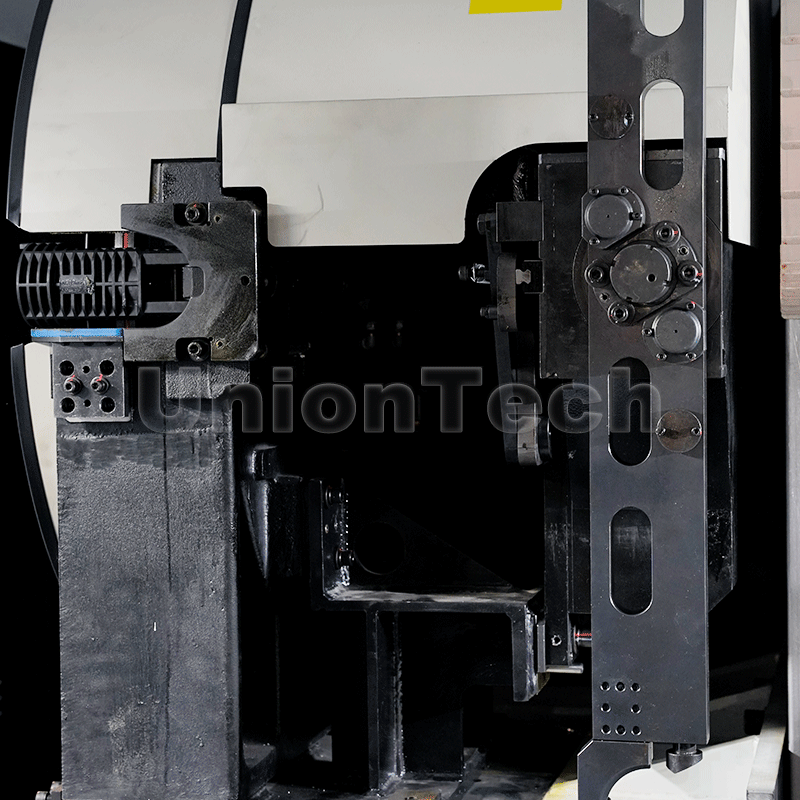

Tool magazine capacity-30
Tool selection-Randomazation
Maximum tool weightkg8
Tool exchange time(knife-to knife)s2.5
Turntable maxmum speedr/min5
Dimensions(L*W*H)cm365*280*234
