HOME > PRODUCTS > CNC Machining Center > VMC > VMC1580

VMC

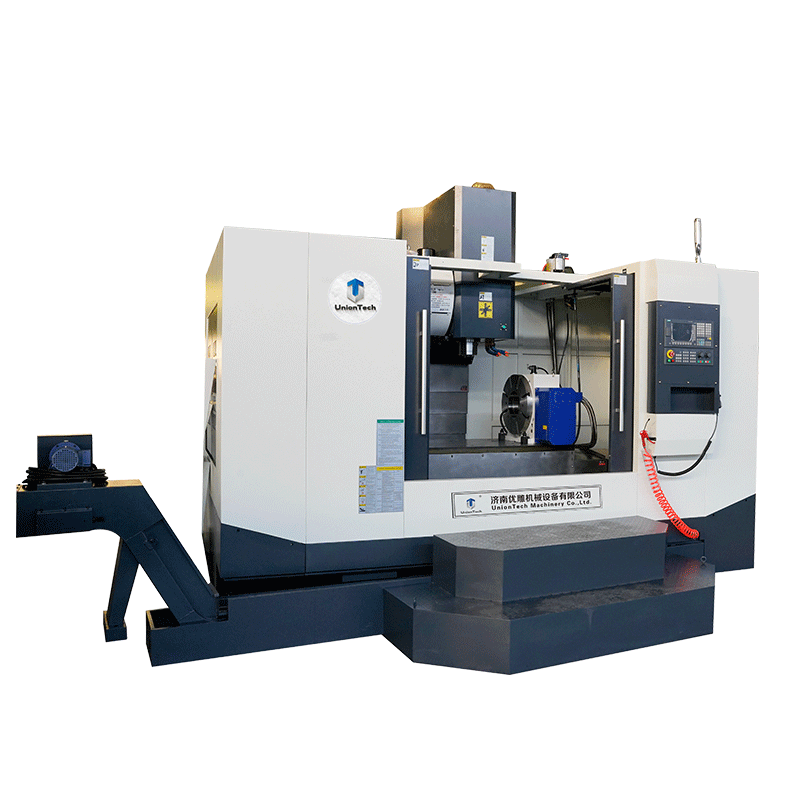

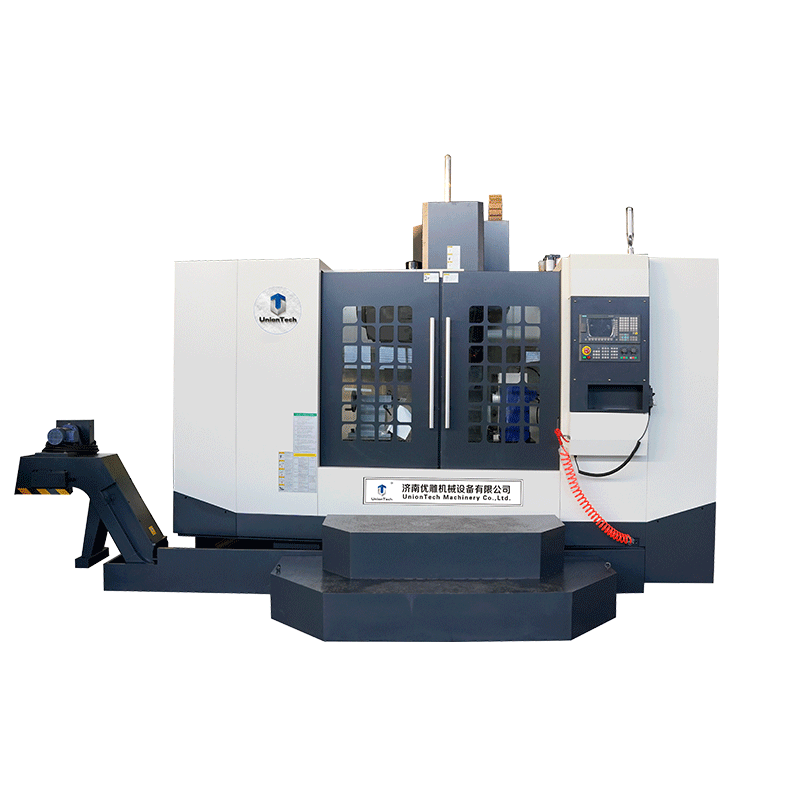

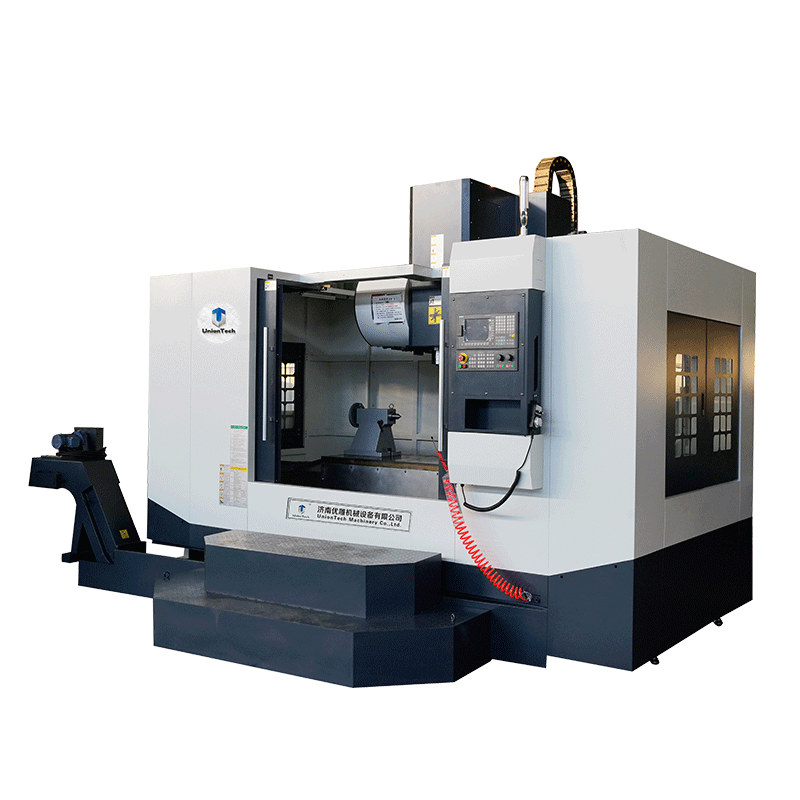

VMC1580

SIEMENS controller( SYNTEC/FANUC/GSK as optional)
1700*800mm working area

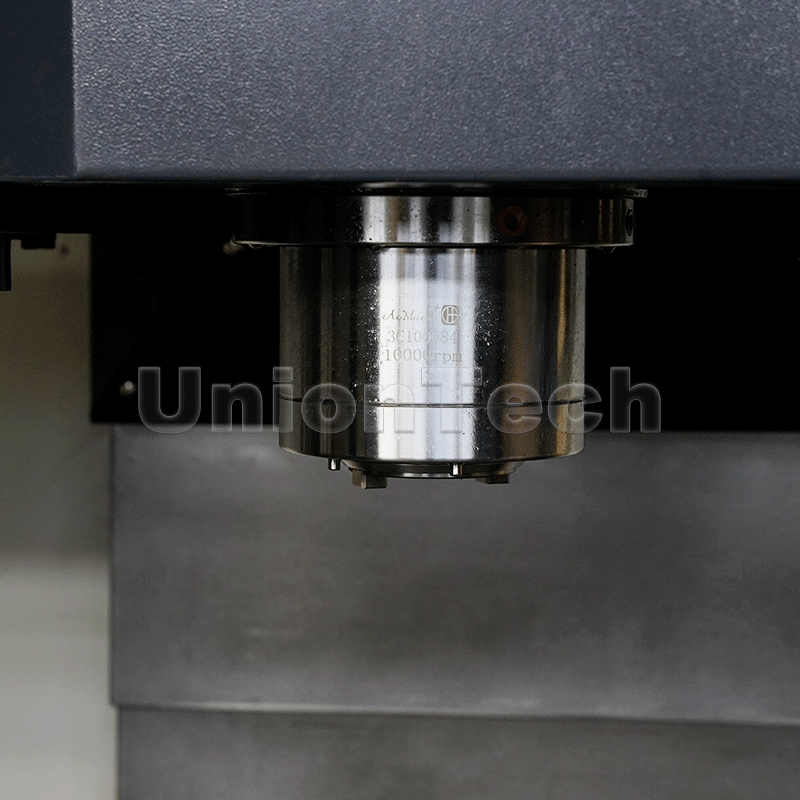

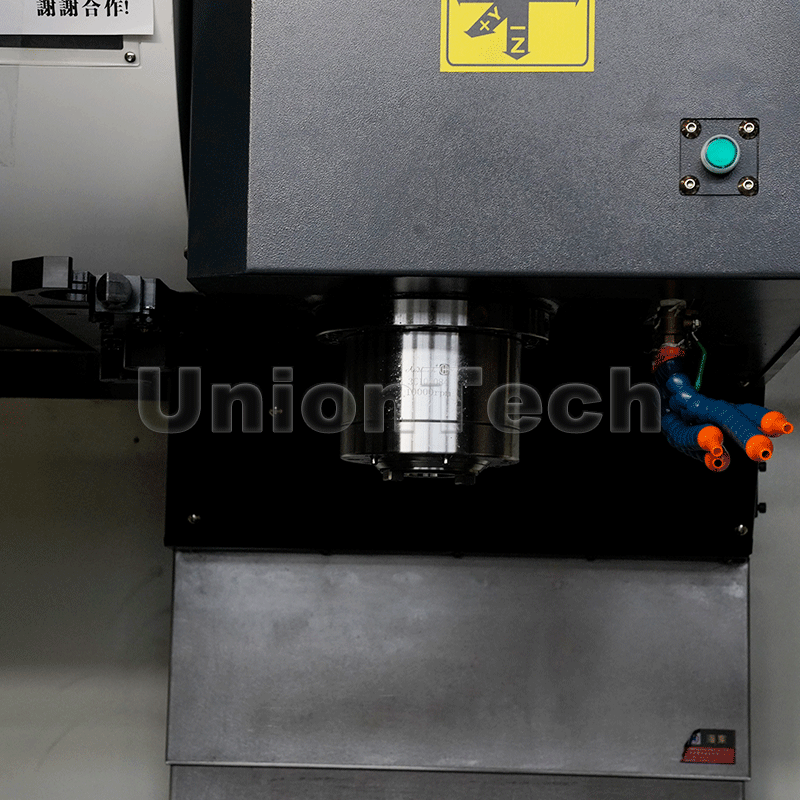

15kw Mechanical Spindle
Magazine tools *24pcs

WhatsApp/Wechat：+8615562667312

E-mail: bill@union-cnc.com

Tel: +8615562667312

Inquiry Now

Video

Parameter

Project	Unit	VMC 1060	VMC 1160	VMC1370	VMC1580
X axis travel	mm	1000	1100	1300	1500
Y axis travel	mm	600	600	700	800
Zaxis travel	mm	600	600	700	700
Table Size	mm	1200*600	1200*600	1360*700	1700*800
Maximum table load	kg	800	1000	1400	1500
T-slot	mm	518120	518125	522140	522135
Spindle taper		BT40	BT40	BT40	BT50
Spindle power	kw	11/15	11/15	11/15/18.5	15/18.5
Maximum Spindle speed	rpm	8000	8000	8000	6000/8000
Rapid Traverse	m/min	36/36/24	36/36/24	24/24/12	15000
Fast moving	m/min	18000	18000	16000	12000
Cutting feed	mm/min	1-8000	1-8000	1-5000	1-5000
Spindle nose to table	mm	130-680	140-740	160-860	170-800
Maximum tool diameter	mm	Φ78Φ120	Φ78Φ120	Φ112Φ200	Φ112Φ200
Maximum tool weight	kg	8	8	18	18
Positioning accuracy	mm	±0.0075	±0.0075	±0.0075	±0.0075
Repeat accuracy	mm	±0.005	±0.005	±0.005	±0.005
Machine Weight	kg	6900	7000	10000	13000
Dimension	mm	320024002800	340024802960	387031652920	430032003100
