VMC850 5 axis
VMC850 5 axis cnc milling machine with GSK controller

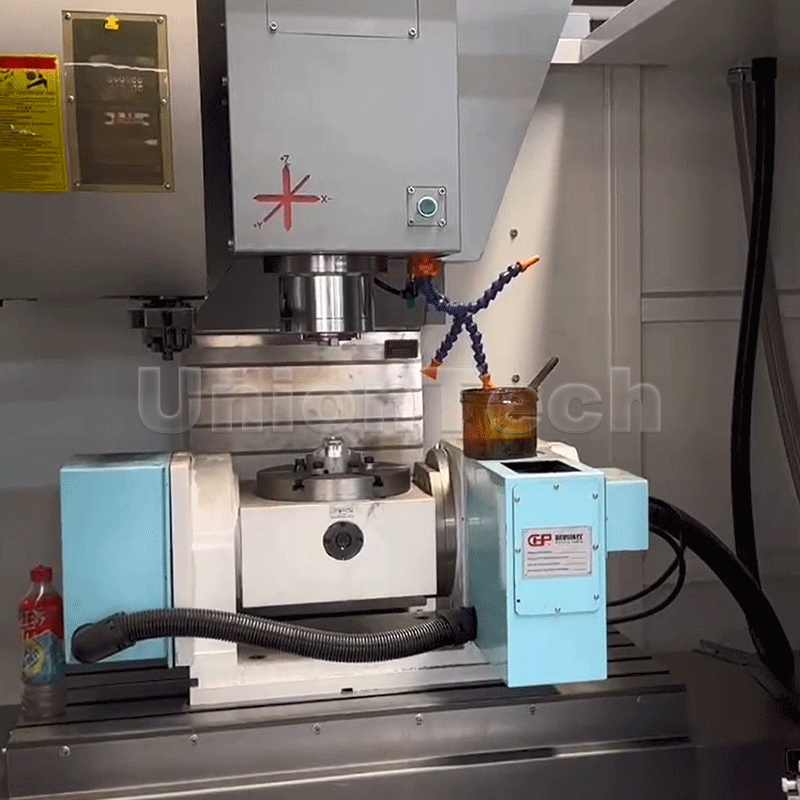

5 axis rotary
WhatsApp/Wechat：+8615562667312
E-mail: bill@union-cnc.com
Tel: +8615562667312
Inquiry Now

ItemContentUnitParameters
WorktableWorktable sizemm1100x600x600mm working area
T slot sizemm5-18-100
Max.payloadmm800kg
TravelX Y Z axismm1200x600x600mm
Distance from spindle nose to worktablemm120-620
Distance from spindle center to column rail surfacemm450
FeedingFast speedm/min20/20/20
Cutting speedm/min10-10 000
SpindleCones/BT40
Speedrpm0-10 000
Powerkw7.5
Tools magazineQuantity of tools/20
Max. tool’s weightkg8
Max. tool’s sizemmΦ150*300
AccuracyPositioning accuracymm±0.006
Re-positioning accuracymm±0.005
DimensionL×W×Hmm4400x2550x2600mm
WeightNet weightkg7000
Specific parameters
ItemNameVMC1160-5 axis cnc milling machine

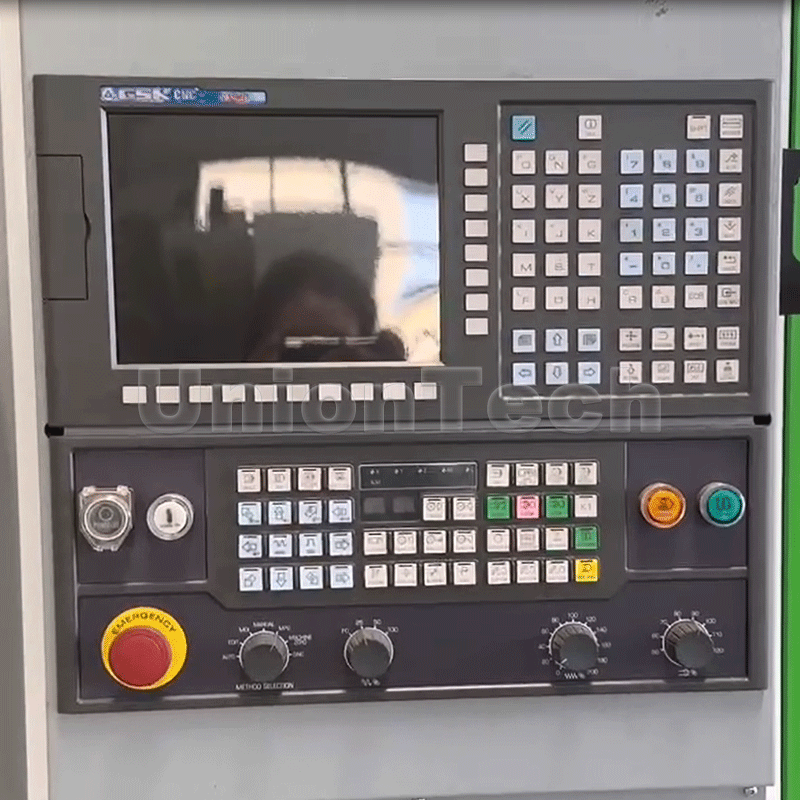

1SystemGSK controller
2Main motor7.5kw servo
3Drive motorGSK driver & motor
4SpindleMechanical spindle, 10 000rpm, BT40 cones
5Ball screwJapanese NACHI ball screw
6Linear railsXYTaiwan Hiwin linear rails35-35-35
7Tool Storage16/ 20 /24 /30
8Bearings of screwTaiwan Hiwin
9Electric cabinet heat exchangeDiot refrigeration
10Inner protectionYes
11External protectionFully enclosed external protection
12Automatic lubricationYes
13Cooling systemWater cooling
14IlluminationExplosion-proof lamp
