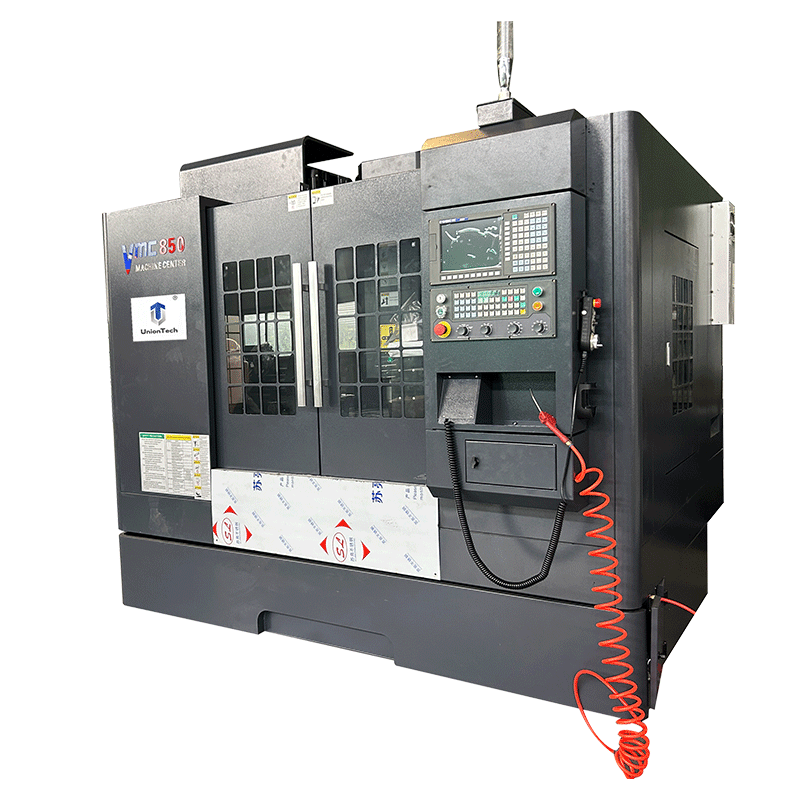

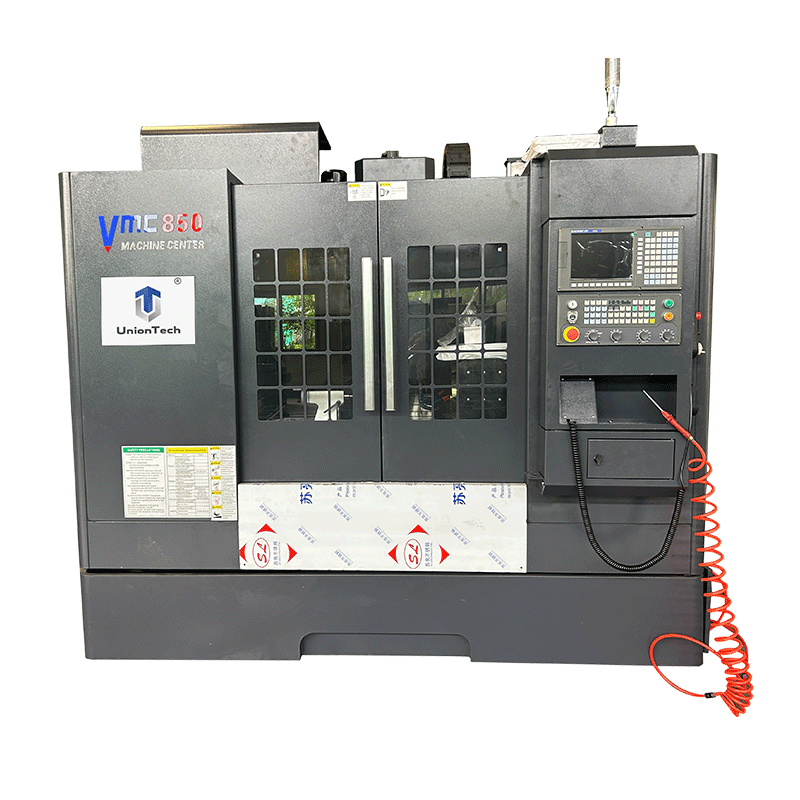

Video of vmc850 cnc milling machine with SIEMENS controller
Parameter of VMC850 4 axis cnc milling machine
| Item | Content | Unit | Parameters |
| Worktable | Worktable size | mm | 800×500（be customized） |
| T slot size | mm | 5-18-100 |
| Max.payload | mm | 600(Be customized) |
| Travel | X Y Z axis | mm | 800×500×500 |
| Distance from spindle nose to worktable | mm | 120-620 |
| Distance from spindle center to column rail surface | mm | 450 |
| Feeding | Fast speed | m/min | 24/24/24 |
| Cutting speed | m/min | 10-10 000 |
| Spindle | Cones | / | BT40 |
| Speed | rpm | 0-10 000 |
| Power | kw | 7.5 |
| Tools magazine | Quantity of tools | / | 20 |
| Max. tool’s weight | kg | 8 |
| Max. tool’s size | mm | Φ150*300 |
| Accuracy | Positioning accuracy | mm | ±0.008 |
| Re-positioning accuracy | mm | ±0.005 |
| Dimension | L×W×H | mm | 2800*2200*2700 |
| Weight | Net weight | kg | 3800 |
| Specific parameters |
| Item | Name | Specifications |

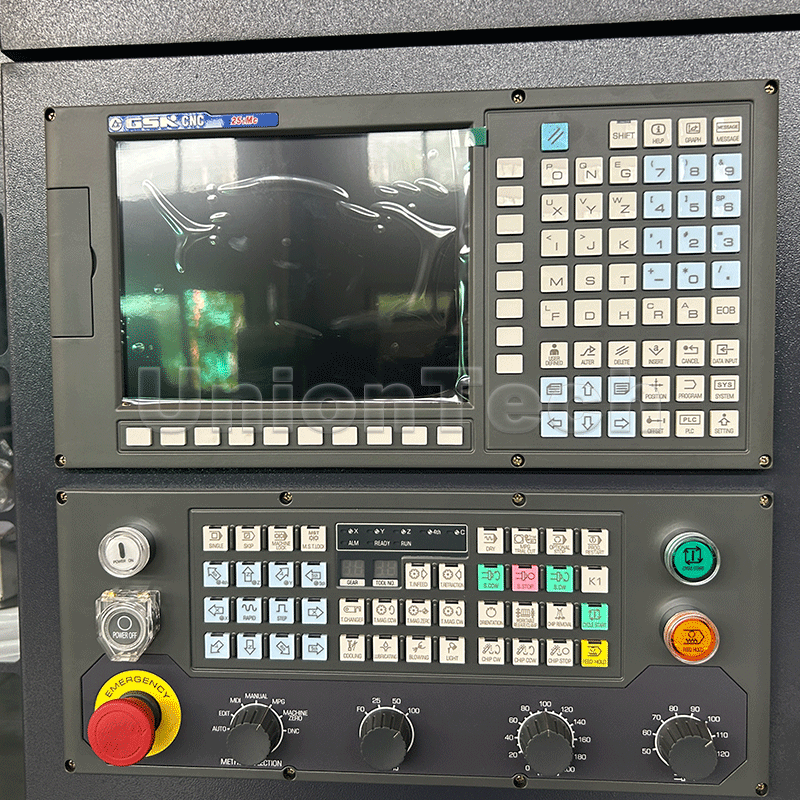

| 1 | System | GSK 980MDi/FANUC/SIEMENS/SYNTEC |
| 2 | Main motor | 7.5kw servo |
| 3 | Drive motor | GSK servo |
| 4 | Spindle | Mechanical spindle, 8000rpm, BT40 cones |
| 5 | Ball screw | Japanese NACHI ball screw |
| 6 | Linear railsXY | Taiwan Hiwin linear rails35-35-35 |
| 7 | Tool Storage | 16/ 20 /24 /30 |
| 8 | Bearings of screw | Taiwan Hiwin |
| 9 | Electric cabinet heat exchange | Diot refrigeration |
| 10 | Inner protection | Yes |
| 11 | External protection | Fully enclosed external protection |
| 12 | Automatic lubrication | Yes |
| 13 | Cooling system | Water cooling |
| 14 | Illumination | Explosion-proof lamp |
